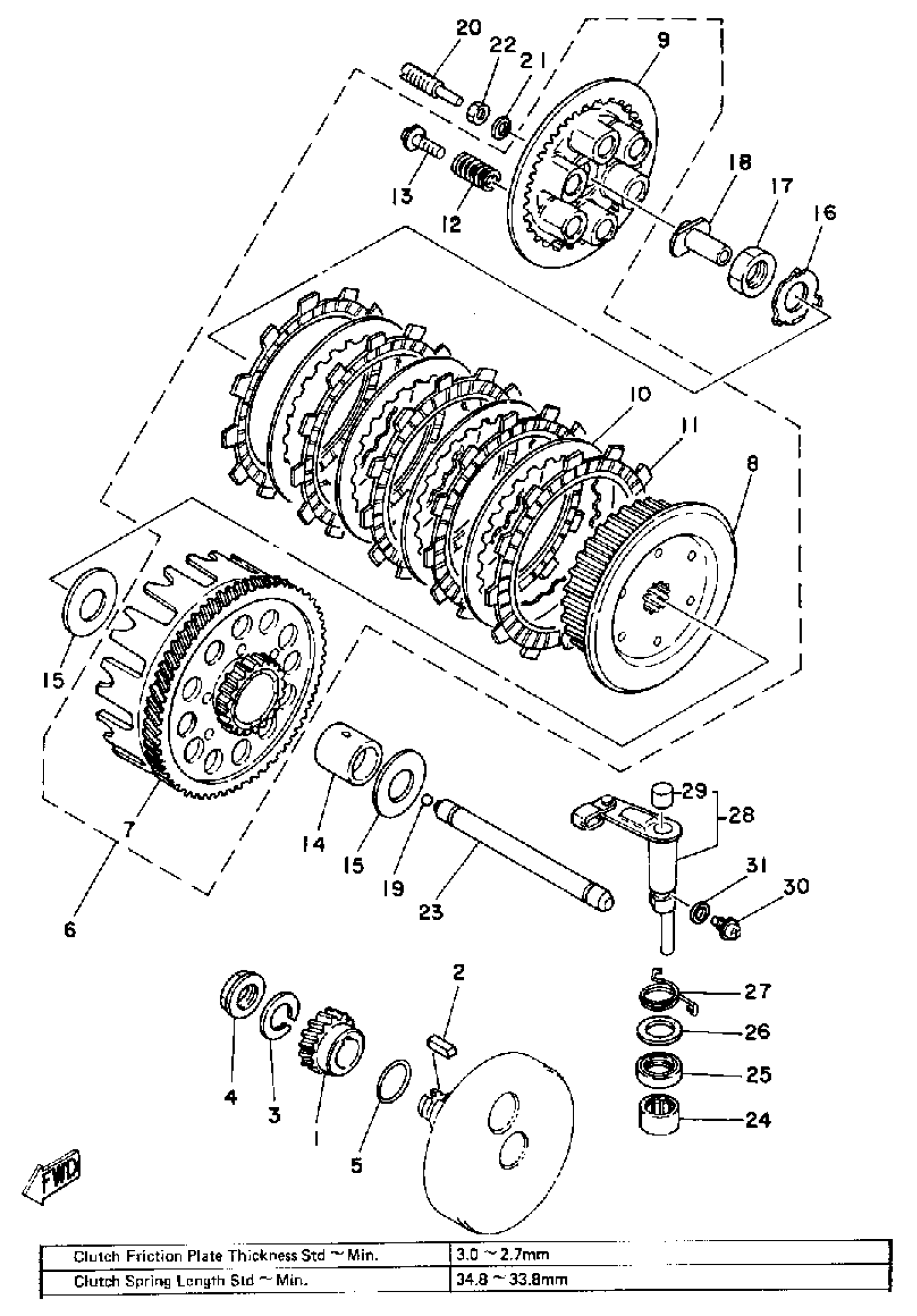

Find the part on the Clutch diagram for your 1980 Yamaha IT250 (IT250G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha IT250 (IT250G) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRI DRIVE

(2K7-16111-00-00)

1
Out of stock

2

KEY, STRAIGHT (498)

90282-07019-00

1

$8.69

In stock

3

WASHER(N15)

92907-18100-00

1

$7.09

In stock

4

NUT (498)

90179-18172-00

1
Out of stock

5

O-RING (498)

93210-29282-00

1
Out of stock

6

CLUTCH ASSEMBLY

2X4-16301-00-00

1
Out of stock

7

. PRI DRVN GEAR

2K7-16150-00-00

1
Out of stock

8

. BOSS, CLUTCH

2K7-16371-00-00

1
Out of stock

9

. PLATE, PRESSURE 1

2K7-16351-00-00

1
Out of stock

10

PLATE, CLUTCH 1

168-16324-10-00

1

$19.09

In stock

11

PLATE, FRICTION

4H7-16321-02-00

1

$20.06

In stock

12

SPRING, COMPRESSION (510)

90501-24408-00

1

$3.00

In stock

13

SCREW, WITH WASHER (1W4)

90159-06016-00

1
Out of stock

14

SPACER 1

2K7-16181-00-00

1
Out of stock

15

PLATE, THRUST

2K7-16154-00-00

1

$18.11

In stock

16

WASHER, LOCK (3Y1)

90215-20159-00

—

$6.74

In stock

17

NUT (3R4)

90170-20255-00

—

$8.78

In stock

18

ROD, PUSH 1

(2K7-16356-00-00)

1
Out of stock

19

BALL (1M1)

93515-32029-00

—
Out of stock

20

SCREW, SPEC''L SHAPE

90149-06123-00

1
Out of stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

23

ROD, PUSH 2

2K7-16357-01-00

1
Out of stock

24

BRG,CYL-CAL ROLLER 12G KY

93315-21721-00

—

$41.17

In stock

25

OIL SEAL (17X28X6-101)

93102-17004-00

—
Out of stock

26

WASHER PLATE 168217580000

90201-18262-00

—
Out of stock

27

SPRING, TORSION

90508-14373-00

1
Out of stock

28

PUSH LEVER ASSEMBLY

2X4-16380-00-00

1
Out of stock

29

. PLUG, BLIND

214-17481-00-00

1
Out of stock

30

SCREW (1M1)

90149-08108-00

—

$12.06

In stock

31

GASKET(3AJ)

90430-08204-00

—

$6.36

In stock
