1980 Yamaha IT250 (IT250G) Transmission Diagram

← All diagrams

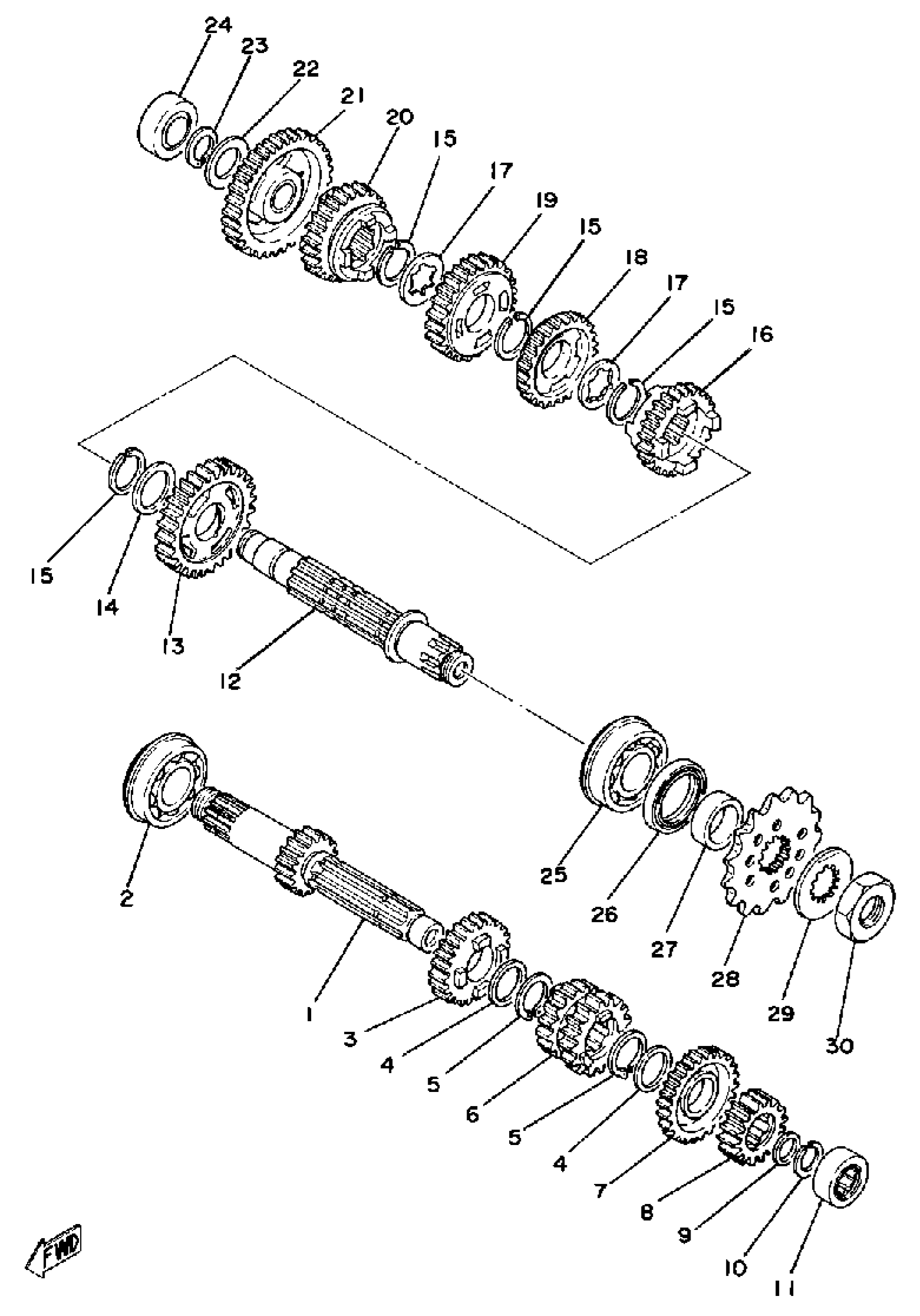

Find the part on the Transmission diagram for your 1980 Yamaha IT250 (IT250G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha IT250 (IT250G) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(2X7-17411-00-00)

1
Out of stock

2

BEARING (93306-20515)

93306-20535-00

1
Out of stock

3

GEAR, 5TH PINION

2X7-17151-00-00

1
Out of stock

4

WASHER, PLATE (537)

90201-22555-00

1
Out of stock

5

CIRCLIP (537)

93410-22039-00

1

$6.17

In stock

6

GEAR, 3RD PINION

(2X7-17131-00-00)

1
Out of stock

7

GEAR, 6TH PINION

2X7-17161-00-00

1
Out of stock

8

GEAR, 2ND PINION

(2X7-17121-00-00)

1
Out of stock

9

WASHER, PLATE (2K7)

90201-17682-00

1

$1.71

In stock

10

CIRCLIP (2K7)

93440-17064-00

1

$6.17

In stock

11

1

$63.35

In stock

12

AXLE, DRIVE

2K7-17421-00-00

1
Out of stock

13

GEAR, 2ND WHEEL

(2X7-17221-00-00)

1
Out of stock

14

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

15

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

16

GEAR, 6TH WHEEL

2X7-17261-00-00

1
Out of stock

17

WASHER 434172160000

90209-22082-00

—

$7.89

In stock

18

GEAR, 4TH WHEEL

(2X7-17241-00-00)

1
Out of stock

19

GEAR, 3RD WHEEL

2X7-17231-00-00

1
Out of stock

20

GEAR, 5TH WHEEL

(2X7-17251-00-00)

1
Out of stock

21

GEAR, 1ST WHEEL

2X7-17211-00-00

1
Out of stock

22

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

23

CIRCLIP (525)

93410-20038-00

—

$2.62

In stock

24

BEARING (2X7)

93311-62035-00

—

$48.30

In stock

25

BRG,R-B 4205 52MM 185G KY

93304-20501-00

—

$90.57

In stock

26

OIL SEAL (697)

93102-32M07-00

—

$16.32

In stock

27

COLLAR (2K7)

90387-25663-00

—

$25.15

In stock

28

SPROCKET, DRIVE

(1W4-17461-60-00)

1
Out of stock

28

—

$18.29

In stock

28

SPROCKET, DRIVE

93834-14051-00

1
Out of stock

28

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

1
Out of stock

29

WASHER, LOCK (23X)

90215-21239-00

—

$7.56

In stock

30

NUT (2K7)

90179-20255-00

—

$9.40

In stock
