1980 Yamaha IT250 (IT250G) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1980 Yamaha IT250 (IT250G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

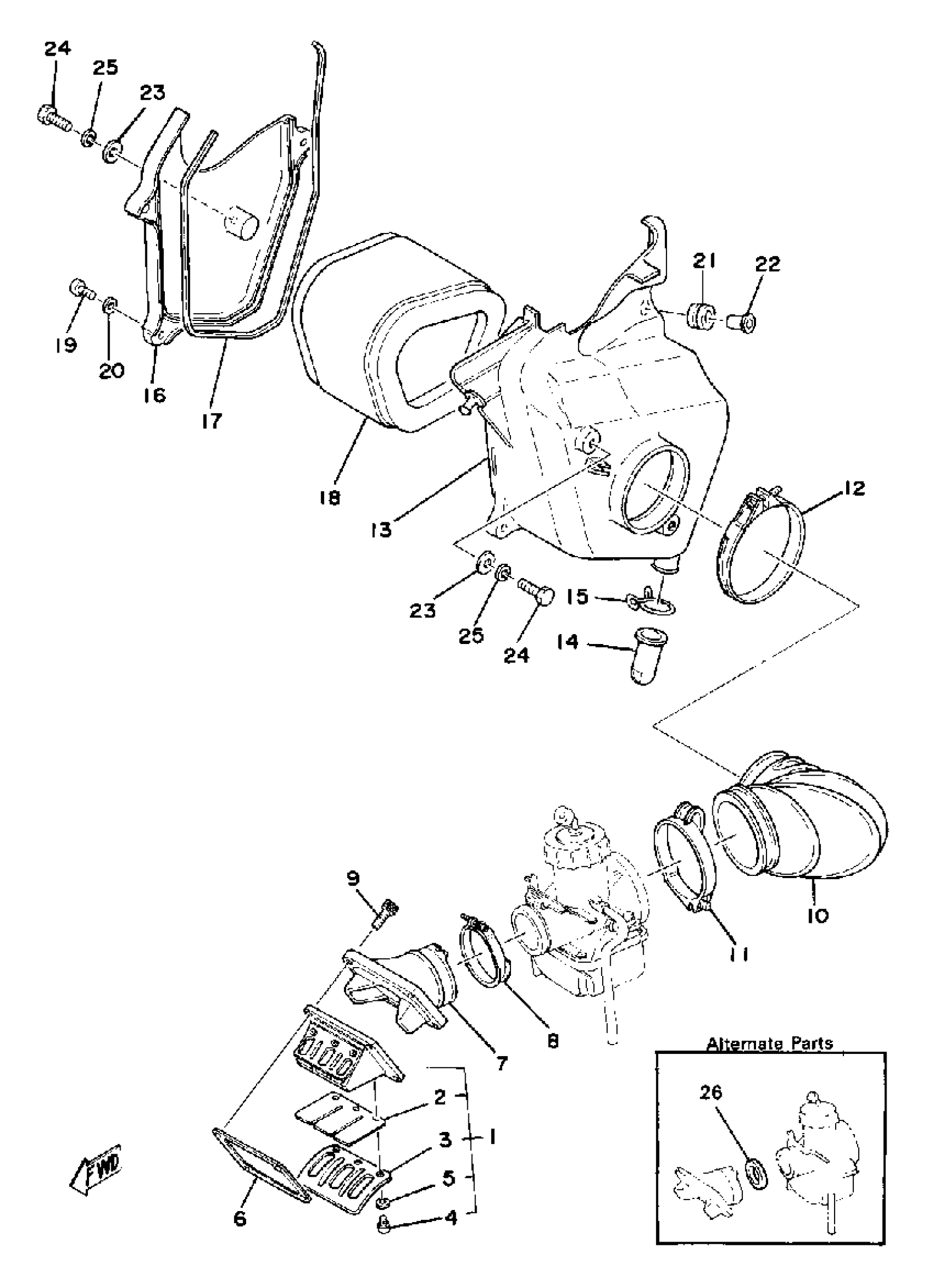

1980 Yamaha IT250 (IT250G) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

2K7-13610-00-00

1
Out of stock

2

. REED, VALVE

2K7-13613-00-00

1
Out of stock

3

STOPPER, REED VALVE

(2K7-13616-00-00)

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

GASKET, VALVE SEAT

80L-13621-01-00

1

$9.80

In stock

7

JOINT, CARBURETOR

(3R8-13565-00-00)

1
Out of stock

8

CLAMP, HOSE

90460-51109-00

1
Out of stock

9

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

10

JOINT, AIR CLNR 1

2K7-14453-00-00

1
Out of stock

11

CLAMP, HOSE

90460-68231-00

1
Out of stock

12

CLAMP, HOSE(59V)

90460-85277-00

1

$12.62

In stock

13

CASE, AIR CLEANER 1

(2K7-14411-01-00)

1
Out of stock

14

SEAL

1W4-14457-00-00

1
Out of stock

15

CLIP

90467-20M15-00

1

$6.23

In stock

16

CAP, CLEANER CASE 1

(3R7-14412-00-00)

1
Out of stock

17

SEAL

50M-14462-01-00

1

$8.99

In stock

18

ELEMENT ASSEMBLY

2K7-14450-00-00

1
Out of stock

19

SCREW, PAN

98507-06014-00

—

$6.18

In stock

20

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

21

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

22

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

23

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

24

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

PLATE

(1W6-14477-00-00)

1
Out of stock
