1979 Yamaha IT250 (IT250F) Clutch Diagram

← All diagrams

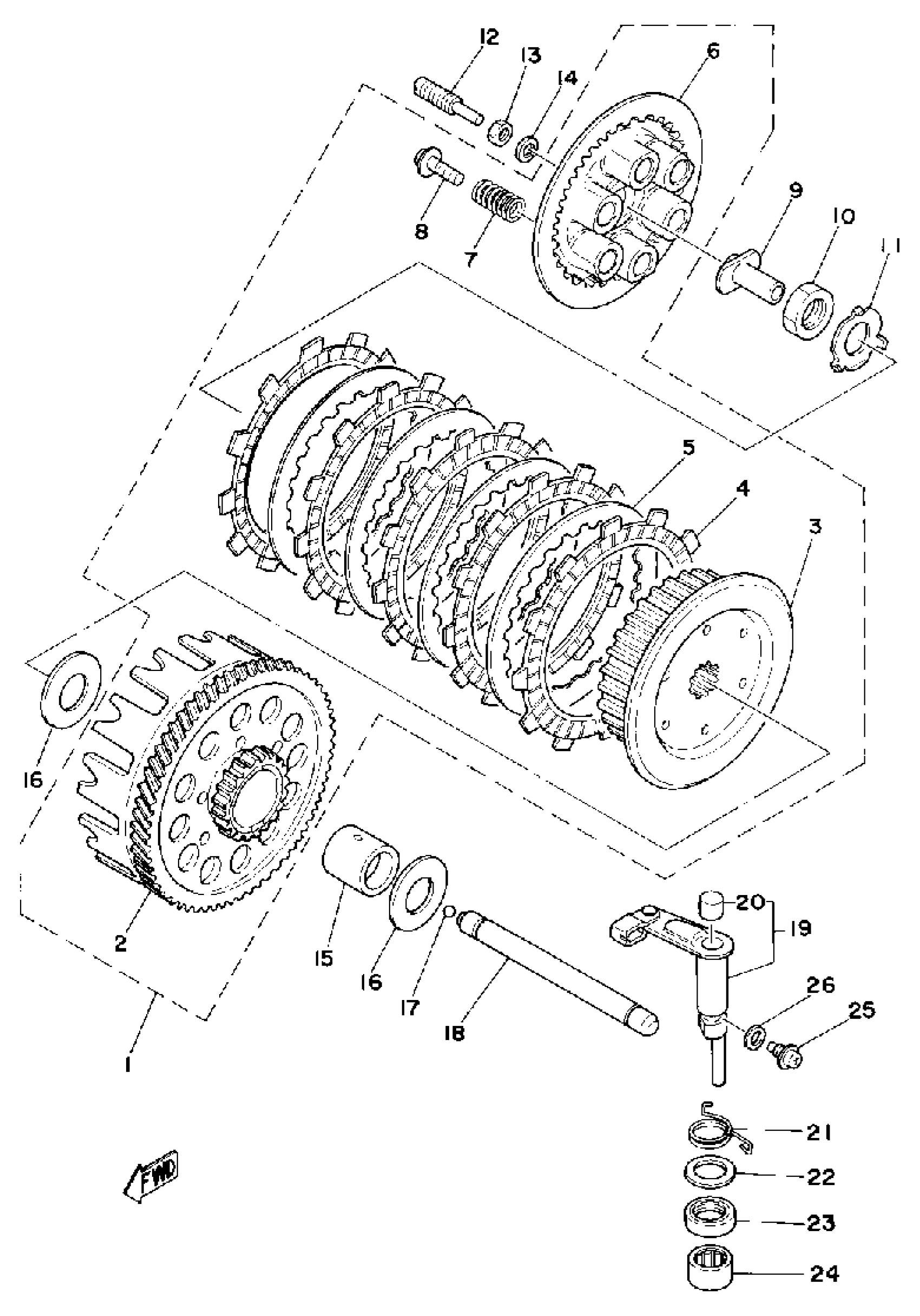

Find the part on the Clutch diagram for your 1979 Yamaha IT250 (IT250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha IT250 (IT250F) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH ASSEMBLY

2X4-16301-00-00

1
Out of stock

2

. PRI DRVN GEAR

2K7-16150-00-00

1
Out of stock

3

. BOSS, CLUTCH

2K7-16371-00-00

1
Out of stock

4

PLATE, FRICTION

4H7-16321-02-00

1

$20.06

In stock

5

PLATE, CLUTCH 1

168-16324-10-00

—

$19.09

In stock

6

. PLATE, PRESSURE 1

2K7-16351-00-00

1
Out of stock

7

. SPRING, COMPRESSION

90501-24549-00

1
Out of stock

8

SCREW, WITH WASHER (1W4)

90159-06016-00

1
Out of stock

9

ROD, PUSH 1

(2K7-16356-00-00)

1
Out of stock

10

NUT (3R4)

90170-20255-00

1

$8.78

In stock

11

WASHER, LOCK (3Y1)

90215-20159-00

—

$6.74

In stock

12

SCREW, SPEC''L SHAPE

90149-06123-00

1
Out of stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

NUT(6TA)

95317-06600-00

1

$2.69

In stock

15

SPACER 1

2K7-16181-00-00

1
Out of stock

16

PLATE, THRUST

2K7-16154-00-00

—

$18.11

In stock

17

BALL (1M1)

93515-32029-00

—
Out of stock

18

ROD, PUSH 2

2K7-16357-01-00

1
Out of stock

19

PUSH LEVER ASSEMBLY

2X4-16380-00-00

1
Out of stock

20

. PLUG, BLIND

214-17481-00-00

1
Out of stock

21

SPRING, TORSION

90508-14373-00

1
Out of stock

22

WASHER PLATE 168217580000

90201-18262-00

—
Out of stock

23

OIL SEAL (17X28X6-101)

93102-17004-00

—
Out of stock

24

BRG,CYL-CAL ROLLER 12G KY

93315-21721-00

—

$41.17

In stock

25

SCREW (1M1)

90149-08108-00

—

$12.06

In stock

26

GASKET(3AJ)

90430-08204-00

—

$6.36

In stock
