1979 Yamaha IT250 (IT250F) Intake Diagram

← All diagrams

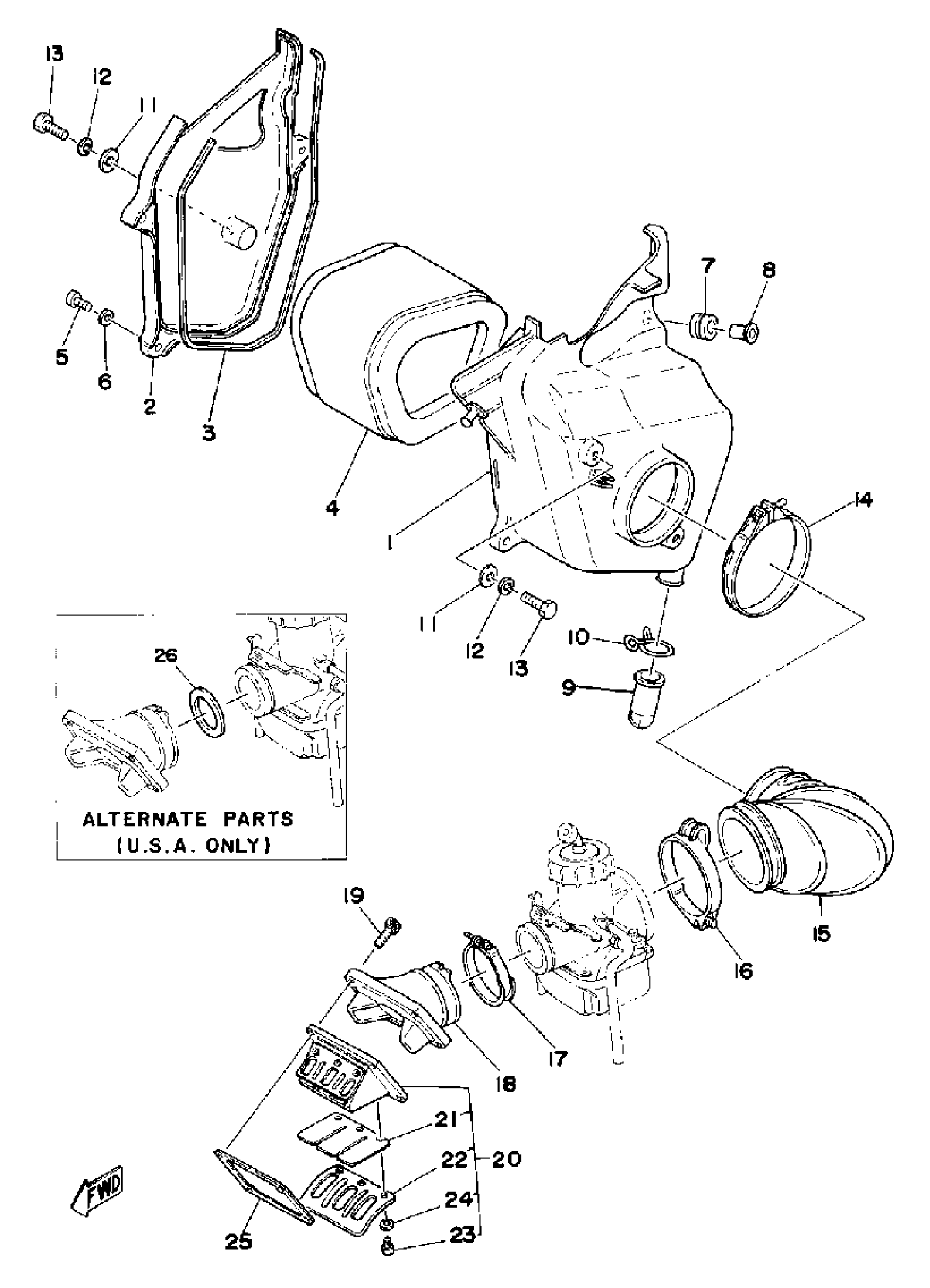

Find the part on the Intake diagram for your 1979 Yamaha IT250 (IT250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha IT250 (IT250F) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

(2K7-14411-01-00)

1
Out of stock

2

CAP, CLEANER CASE 1

2K7-14412-00-00

1
Out of stock

3

SEAL

50M-14462-01-00

1

$8.99

In stock

4

ELEMENT ASSEMBLY

2K7-14450-00-00

1
Out of stock

5

SCREW, PAN

98507-06014-00

1

$6.18

In stock

6

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

7

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

8

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

9

SEAL

1W4-14457-00-00

1
Out of stock

10

CLIP

90467-20M15-00

1

$6.23

In stock

11

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

14

CLAMP, HOSE(59V)

90460-85277-00

1

$12.62

In stock

15

JOINT, AIR CLNR 1

2K7-14453-00-00

1
Out of stock

16

CLAMP, HOSE

90460-68231-00

1
Out of stock

17

CLAMP, HOSE

90460-51109-00

1
Out of stock

18

JOINT, CARBURETOR

2K7-13565-00-00

1
Out of stock

19

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

20

REED VALVE ASSEMBLY

2X5-13610-00-00

1
Out of stock

21

. REED, VALVE

2K7-13613-00-00

1
Out of stock

22

. STOPPER, REED VALVE

2X5-13616-00-00

1
Out of stock

23

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

24

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

25

GASKET, VALVE SEAT

80L-13621-01-00

—

$9.80

In stock

26

PLATE

(1W6-14477-00-00)

1
Out of stock
