1979 Yamaha IT250 (IT250F) Shifter 2 Diagram

← All diagrams

Find the part on the Shifter 2 diagram for your 1979 Yamaha IT250 (IT250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

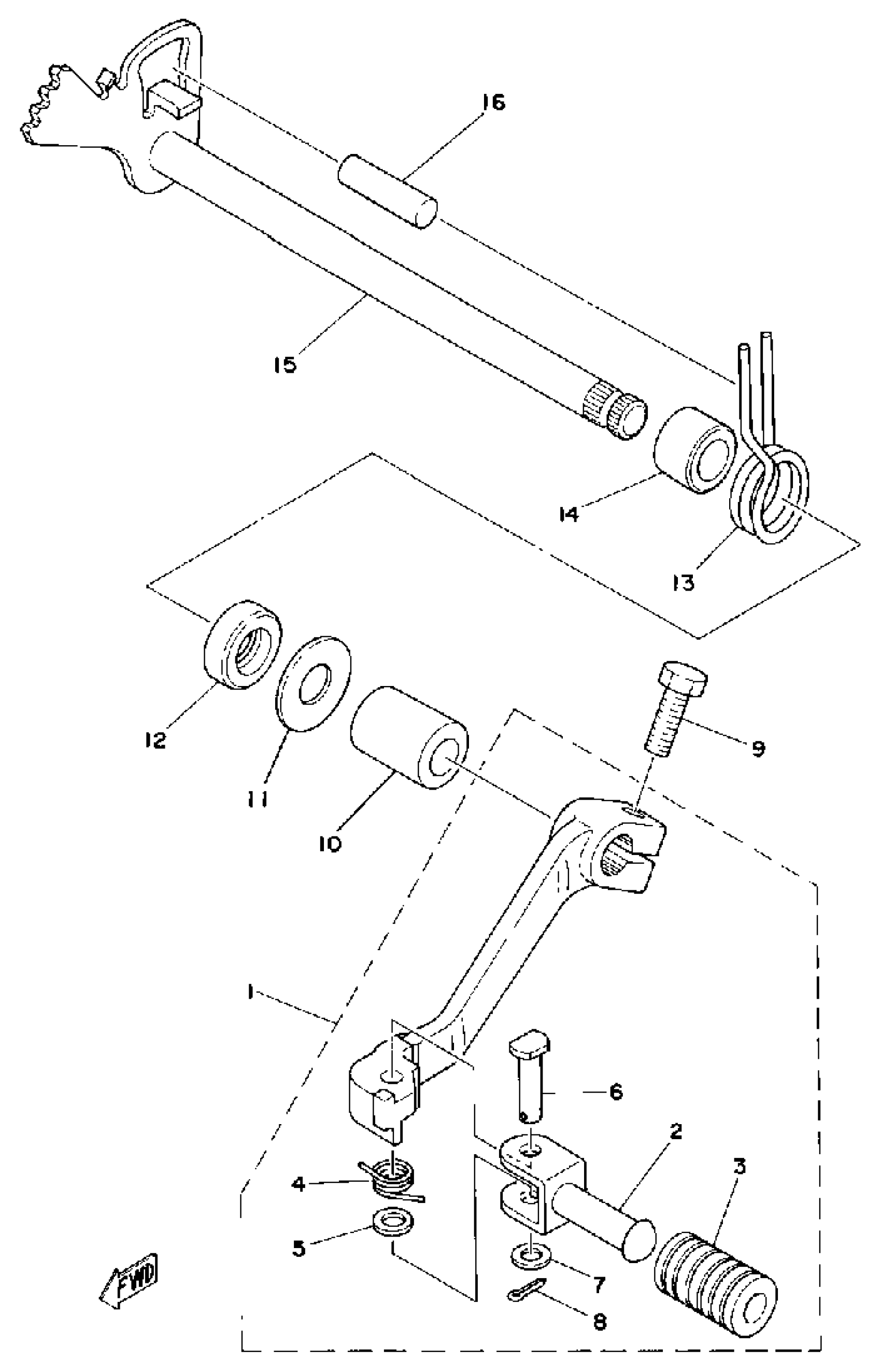

1979 Yamaha IT250 (IT250F) Shifter 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT PEDAL ASSY

2HF-18110-02-00

1

$52.56

In stock

2

PEDAL, SHIFT

1W6-18162-00-00

1
Out of stock

3

COVER, CHANGE PEDAL

1W6-18113-00-00

1

$3.91

In stock

4

SPRING, TORSION

90508-16351-00

1
Out of stock

5

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

6

PIN, CLEVIS

90240-06057-00

1
Out of stock

7

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

8

PIN, COTTER

91490-20025-00

1

$1.31

In stock

9

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

10

SPACER (3Y1)

90560-12191-00

1
Out of stock

11

WASHER

90201-12588-00

1

$6.37

In stock

12

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

13

SPRING, TORSION (2K7)

90508-32374-00

1
Out of stock

14

SPACER

90560-12171-00

1
Out of stock

15

SHIFT SHAFT ASSEMBLY.1

2K7-18101-00-00

1
Out of stock

16

PIN, DOWEL

93608-30152-00

1
Out of stock
