1979 Yamaha IT250 (IT250F) Transmission Diagram

← All diagrams

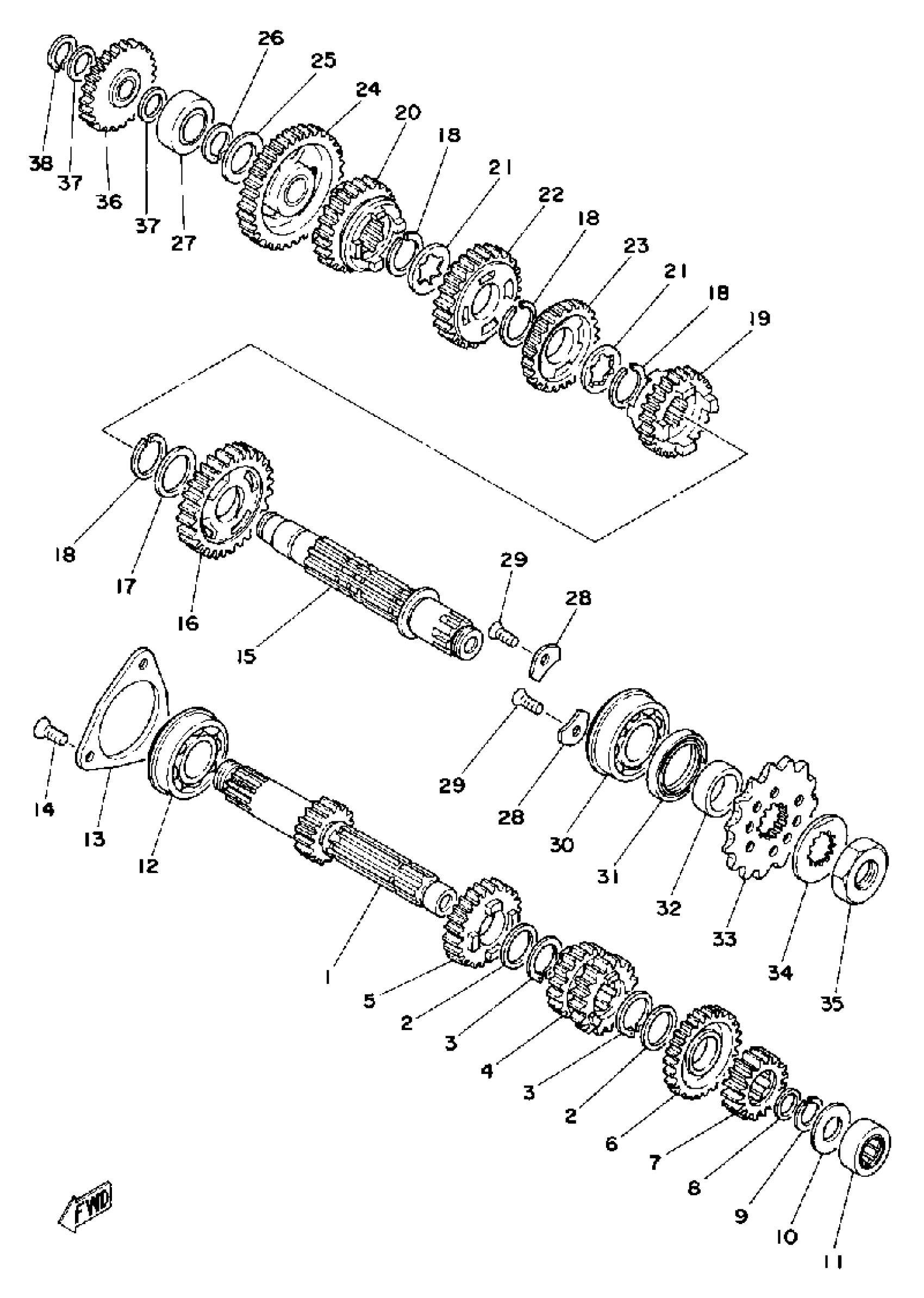

Find the part on the Transmission diagram for your 1979 Yamaha IT250 (IT250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha IT250 (IT250F) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(2X7-17411-00-00)

1
Out of stock

2

WASHER, PLATE (537)

90201-22555-00

1
Out of stock

3

CIRCLIP (537)

93410-22039-00

1

$6.17

In stock

4

GEAR, 3RD PINION

(2X7-17131-00-00)

1
Out of stock

5

GEAR, 5TH PINION

2X7-17151-00-00

1
Out of stock

6

GEAR, 6TH PINION

2X7-17161-00-00

1
Out of stock

7

GEAR, 2ND PINION

(2X7-17121-00-00)

1
Out of stock

8

WASHER, PLATE (2K7)

90201-17682-00

1

$1.71

In stock

9

CIRCLIP (2K7)

93440-17064-00

1

$6.17

In stock

10

WASHER PLATE 306155610000

90201-17257-00

1

$6.42

In stock

11

1

$63.35

In stock

12

BEARING (93306-20515)

93306-20535-00

1
Out of stock

13

PLATE,BRNG COVER

363-15383-00-00

1
Out of stock

14

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

15

AXLE, DRIVE

2K7-17421-00-00

1
Out of stock

16

GEAR, 2ND WHEEL

(2X7-17221-00-00)

1
Out of stock

17

WASHER, PLATE(59W)

90201-253K0-00

—

$6.18

In stock

18

CIRCLIP (4L0)

93440-25084-00

—

$3.96

In stock

19

GEAR, 6TH WHEEL

2X7-17261-00-00

1
Out of stock

20

GEAR, 5TH WHEEL

(2X7-17251-00-00)

1
Out of stock

21

WASHER 434172160000

90209-22082-00

—

$7.89

In stock

22

GEAR, 3RD WHEEL

2X7-17231-00-00

1
Out of stock

23

GEAR, 4TH WHEEL

(2X7-17241-00-00)

1
Out of stock

24

GEAR, 1ST WHEEL

2X7-17211-00-00

1
Out of stock

25

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

26

CIRCLIP (525)

93410-20038-00

—

$2.62

In stock

27

BEARING (2X7)

93311-62035-00

—

$48.30

In stock

28

PLATE, BEARING COVER

4XM-15383-00-00

—

$11.03

In stock

29

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

30

BRG,R-B 4205 52MM 185G KY

93304-20501-00

—

$90.57

In stock

31

OIL SEAL (697)

93102-32M07-00

—

$16.32

In stock

32

COLLAR (2K7)

90387-25663-00

—

$25.15

In stock

33

—

$18.29

In stock

33

SPROCKET, DRIVE

93834-14051-00

1
Out of stock

33

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

1
Out of stock

34

WASHER, LOCK (23X)

90215-21239-00

—

$7.56

In stock

35

NUT (2K7)

90179-20255-00

—

$9.40

In stock

36

GEAR, KICK IDLE

3R4-15651-00-00

1
Out of stock

37

WASHER, PLATE (525)

90201-17545-00

—

$6.68

In stock

38

CIRCLIP(1EY)

99009-17400-00

—
Out of stock
