1982 Yamaha IT175 (IT175J) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1982 Yamaha IT175 (IT175J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

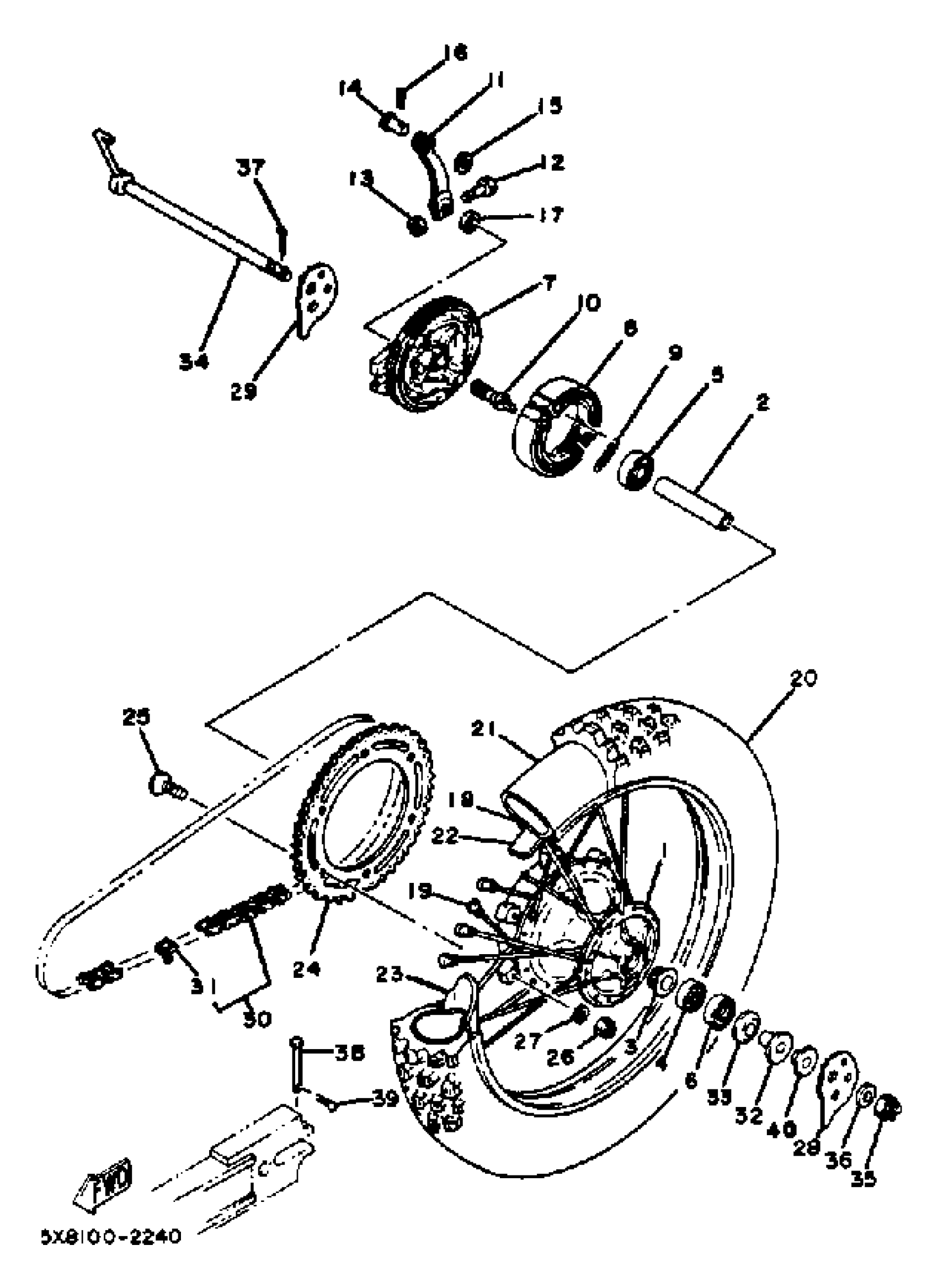

1982 Yamaha IT175 (IT175J) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

3R3-25311-02-98

1
Out of stock

2

SPACER, BEARING

3R3-25317-00-00

1
Out of stock

3

FLANGE, SPACER

146-25116-00-00

1
Out of stock

4

BEARING

93306-20205-00

1

$32.63

In stock

5

BEARING

93306-30212-00

1

$33.35

In stock

6

OIL SEAL, DD-TYPE

93106-22017-00

1
Out of stock

7

PLATE BRAKE SHOE

99999-02405-00

1
Out of stock

8

BRAKE SHOE SET-2PCS

437-W2536-00-00

1
Out of stock

9

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

10

CAMSHAFT

26A-25351-00-00

1
Out of stock

11

LEVER, CAMSHAFT

3R6-25355-01-00

1
Out of stock

12

BOLT, HEXAGON (538)

90101-06278-00

1

$1.82

In stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

14

PIN, CLEVIS

3R6-27237-00-00

1
Out of stock

15

WASHER, PLATE (583)

90201-12631-00

1
Out of stock

16

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

17

SEAL, CAM SHAFT

148-25359-00-00

—
Out of stock

18

RIM 1.85X18

94418-18245-00

1
Out of stock

19

SPOKE SET, REAR

4V2-25304-00-00

1
Out of stock

20

120/90-18 MK2-TT (110/90-18 61M)

94112-182F7-00

1
Out of stock

21

TUBE

(94211-18209-00)

1
Out of stock

22

BAND, RIM (2J4)

94340-18086-00

—

$16.00

In stock

23

SPACER, BEAD

2X3-25394-00-00

1
Out of stock

24

SPROCKET, DRIVEN (42T)

26A-25442-51-00

—

$52.74

In stock

24

SPROCKET, DRIVEN

26A-25444-51-00

1
Out of stock

24

SPROCKET, DRIVEN

26A-25446-51-00

1
Out of stock

25

BOLT, HEX SKT HEAD

90110-08038-00

1
Out of stock

26

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

27

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

28

PULLER, CHAIN (L.H)

1W2-25388-01-00

—
Out of stock

29

PULLER, CHAIN (R.H)

1W2-25389-01-00

—
Out of stock

30

CHAIN 520DS-104L

9Y585-20103-00

1
Out of stock

31

JOINT, CHAIN

94681-68001-00

—
Out of stock

32

COLLAR

90387-152A3-00

1
Out of stock

33

COVER, HUB DUST

3R3-25367-00-00

1
Out of stock

34

AXLE, WHEEL

5X8-25381-00-00

1
Out of stock

35

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

36

WASHER (525)

90201-15238-00

—
Out of stock

37

PIN, COTTER

91490-30030-00

—

$7.15

In stock

38

PIN, CLEVIS

91702-05035-00

1
Out of stock

39

PIN, COTTER

91490-16020-00

1

$6.23

In stock

40

BUSH, SOLID

90381-15034-00

1
Out of stock
