1982 Yamaha IT175 (IT175J) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1982 Yamaha IT175 (IT175J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

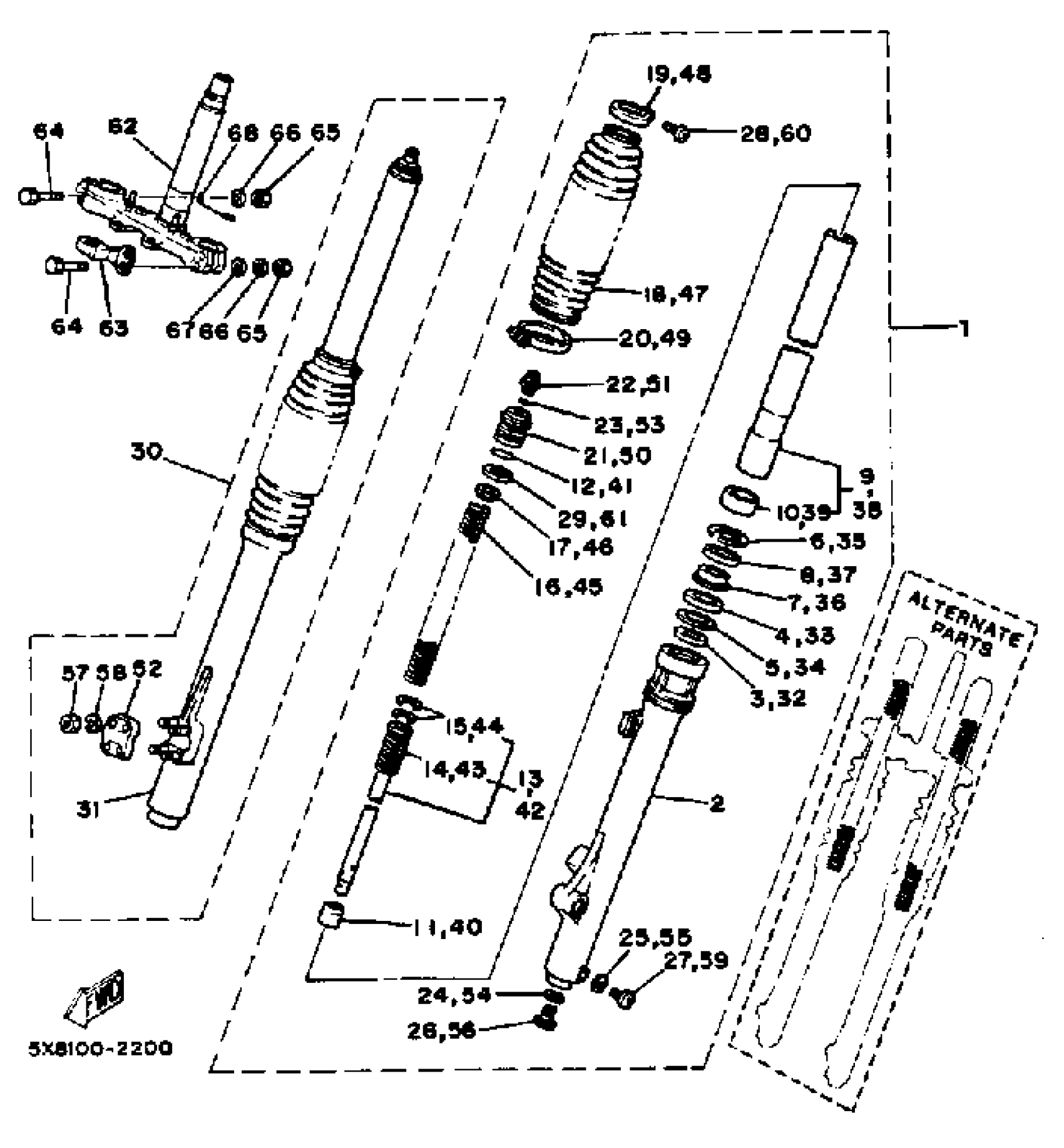

1982 Yamaha IT175 (IT175J) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

(5X8-23102-L0-00)

1
Out of stock

2

TUBE, OUTER 1

(4V5-23126-L0-00)

1
Out of stock

3

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

4

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

5

WASHER

4V2-23146-L0-00

1
Out of stock

6

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

7

.. SEAL, DUST

3R4-23144-00-00

1
Out of stock

8

.. COVER, DUST SEAL

3R4-23148-00-00

1
Out of stock

9

. INNER TUBE 1

5X4-23110-L0-00

1
Out of stock

10

.. PISTON, FRONT FORK

4V2-23171-L0-00

1
Out of stock

11

SPINDLE, TAPER

(3R4-23173-L0-00)

1
Out of stock

12

O-RING

1W4-23114-L0-00

1

$7.45

In stock

13

CYLINDER, FRTFRK

(5X8-23170-L0-00)

1
Out of stock

14

SPRING, REBOUND

(1W4-23151-L0-00)

1
Out of stock

15

.. RING, PISTON FRONT FORK

4V2-23157-L0-00

1
Out of stock

16

SPRING, FRTFRK SOFT

5X8-23141-10-00

1
Out of stock

16

SPRING, FRTFRK HARD

5X8-23141-20-00

1
Out of stock

16

SPRING, FRONT FORK

(5X8-23141-L0-00)

1
Out of stock

17

. SEAT, SPRING UPPER

1W4-23142-L0-00

1
Out of stock

18

. BOOT, FRONT FORK

3R4-23191-M0-00

1
Out of stock

19

. BAND

1W4-23192-L0-00

1
Out of stock

20

BAND

1W4-23489-L0-00

1
Out of stock

21

. BOLT, CAP

5X4-23111-L0-00

1
Out of stock

22

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

23

O-RING

3J2-23147-00-00

—
Out of stock

24

GASKET

509-23158-L0-00

—

$14.34

In stock

25

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

26

BOLT

3R4-23181-L0-00

—
Out of stock

27

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

28

SCREW, PAN HEAD

98517-04020-00

—

$6.18

In stock

29

. SPACER

5X8-23118-L0-00

1
Out of stock

30

FRONT FORK ASSEMBLY R

(5X8-23103-L0-00)

1
Out of stock

31

TUBE, OUTER 2

(4V5-23136-L0-00)

1
Out of stock

32

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

33

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

34

WASHER

4V2-23146-L0-00

1
Out of stock

35

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

36

.. SEAL, DUST

3R4-23144-00-00

1
Out of stock

37

.. COVER, DUST SEAL

3R4-23148-00-00

1
Out of stock

38

. INNER TUBE 1

5X4-23110-L0-00

1
Out of stock

39

.. PISTON, FRONT FORK

4V2-23171-L0-00

1
Out of stock

40

SPINDLE, TAPER

(3R4-23173-L0-00)

1
Out of stock

41

O-RING

1W4-23114-L0-00

1

$7.45

In stock

42

CYLINDER, FRTFRK

(5X8-23170-L0-00)

1
Out of stock

43

SPRING, REBOUND

(1W4-23151-L0-00)

1
Out of stock

44

.. RING, PISTON FRONT FORK

4V2-23157-L0-00

1
Out of stock

45

SPRING, FRTFRK SOFT

5X8-23141-10-00

1
Out of stock

45

SPRING, FRTFRK HARD

5X8-23141-20-00

1
Out of stock

45

SPRING, FRONT FORK

(5X8-23141-L0-00)

1
Out of stock

46

. SEAT, SPRING UPPER

1W4-23142-L0-00

1
Out of stock

47

. BOOT, FRONT FORK

3R4-23191-M0-00

1
Out of stock

48

. BAND

1W4-23192-L0-00

1
Out of stock

49

BAND

1W4-23489-L0-00

1
Out of stock

50

. BOLT, CAP

5X4-23111-L0-00

1
Out of stock

51

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

52

HOLDER, AXLE

4V2-23167-L0-00

—
Out of stock

53

O-RING

3J2-23147-00-00

—
Out of stock

54

GASKET

509-23158-L0-00

—

$14.34

In stock

55

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

56

BOLT

3R4-23181-L0-00

—
Out of stock

57

NUT(6TA)

95317-06600-00

—

$2.69

In stock

58

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

59

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

60

SCREW, PAN HEAD

98517-04020-00

—

$6.18

In stock

61

. SPACER

5X8-23118-L0-00

1
Out of stock

62

. UNDER BRACKET

4V5-23340-L0-33

1
Out of stock

63

GUIDE, WIRE

3R4-23389-00-00

—
Out of stock

64

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

65

NUT(6L2)

95333-08600-00

—

$3.20

In stock

66

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

67

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

68

GUIDE, CABLE

4V5-23389-00-00

—

$34.42

In stock
