1981 Yamaha IT125 (IT125H) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1981 Yamaha IT125 (IT125H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

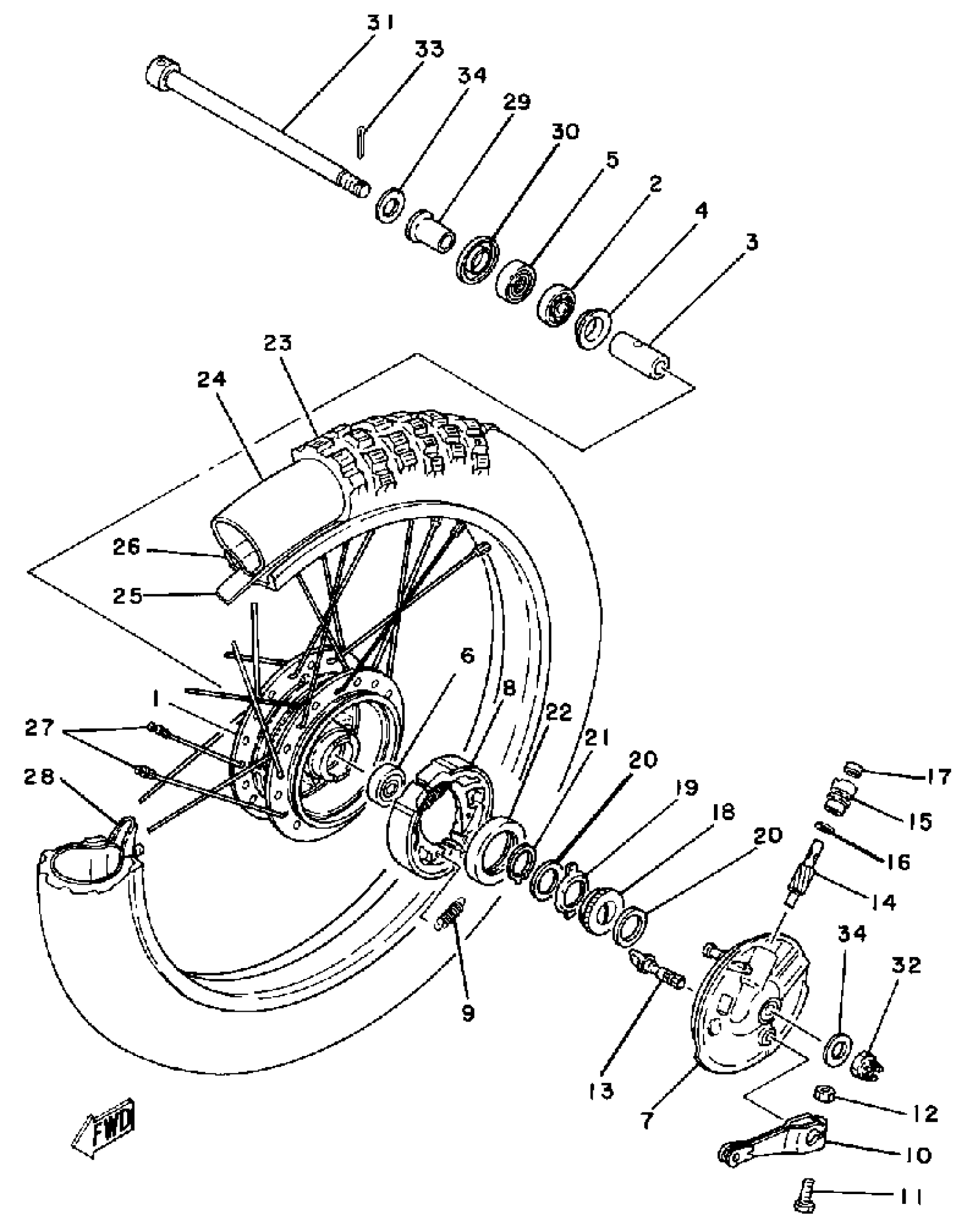

1981 Yamaha IT125 (IT125H) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

248-25111-00-98

—
Out of stock

2

BEARING

93306-30102-00

1
Out of stock

3

SPACER

90560-12138-00

—

$12.83

In stock

4

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

5

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

6

BEARING

93306-30102-00

1
Out of stock

7

PLATE, BRAKE SHOE

(3R9-25121-00-98)

1
Out of stock

8

BRAKESHOE SET

22F-W2534-00-00

1
Out of stock

9

SPRING, TENSION (566).

90506-16150-00

1

$6.98

In stock

10

LEVER, CAMSHAFT 1 (401-25155-00)

401-25155-11-00

1
Out of stock

11

BOLT, HEXAGON (538)

90101-06278-00

1

$1.82

In stock

12

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

13

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

14

GEAR, METER

(3R9-25138-00-00)

1
Out of stock

15

BUSHING

109-25136-00-00

1

$8.78

In stock

16

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

17

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

18

GEAR, DRIVE

(3R9-25135-00-00)

1
Out of stock

19

CLUTCH, METER

183-25149-00-00

—
Out of stock

20

WASHER, PLATE 1832514700

90201-20269-00

—
Out of stock

21

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

22

SEAL,OIL

93105-47007-00

—
Out of stock

23

BS 300X21 M21

(94130-21554-00)

1
Out of stock

24

TUBE, FRONT (2A6)

94227-21123-00

—

$43.59

In stock

25

BAND, RIM (2A6)

94330-21084-00

—

$13.89

In stock

26

RIM 1.60X21

94416-21265-00

1
Out of stock

27

SPOKE SET, FRONT

345-25104-01-00

1
Out of stock

28

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

29

COLLAR (462)

90387-12265-00

—

$12.85

In stock

30

COVER, HUB DUST

2K5-25118-00-00

—
Out of stock

31

SHAFT, WHEEL

353-25381-00-00

—

$22.37

In stock

32

NUT 3532518200

90171-10004-00

—

$5.32

In stock

33

PIN, COTTER

91490-20025-00

—

$1.31

In stock

34

WASHER, PLATE

90201-12047-00

—

$7.54

In stock
