1981 Yamaha IT125 (IT125H) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1981 Yamaha IT125 (IT125H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

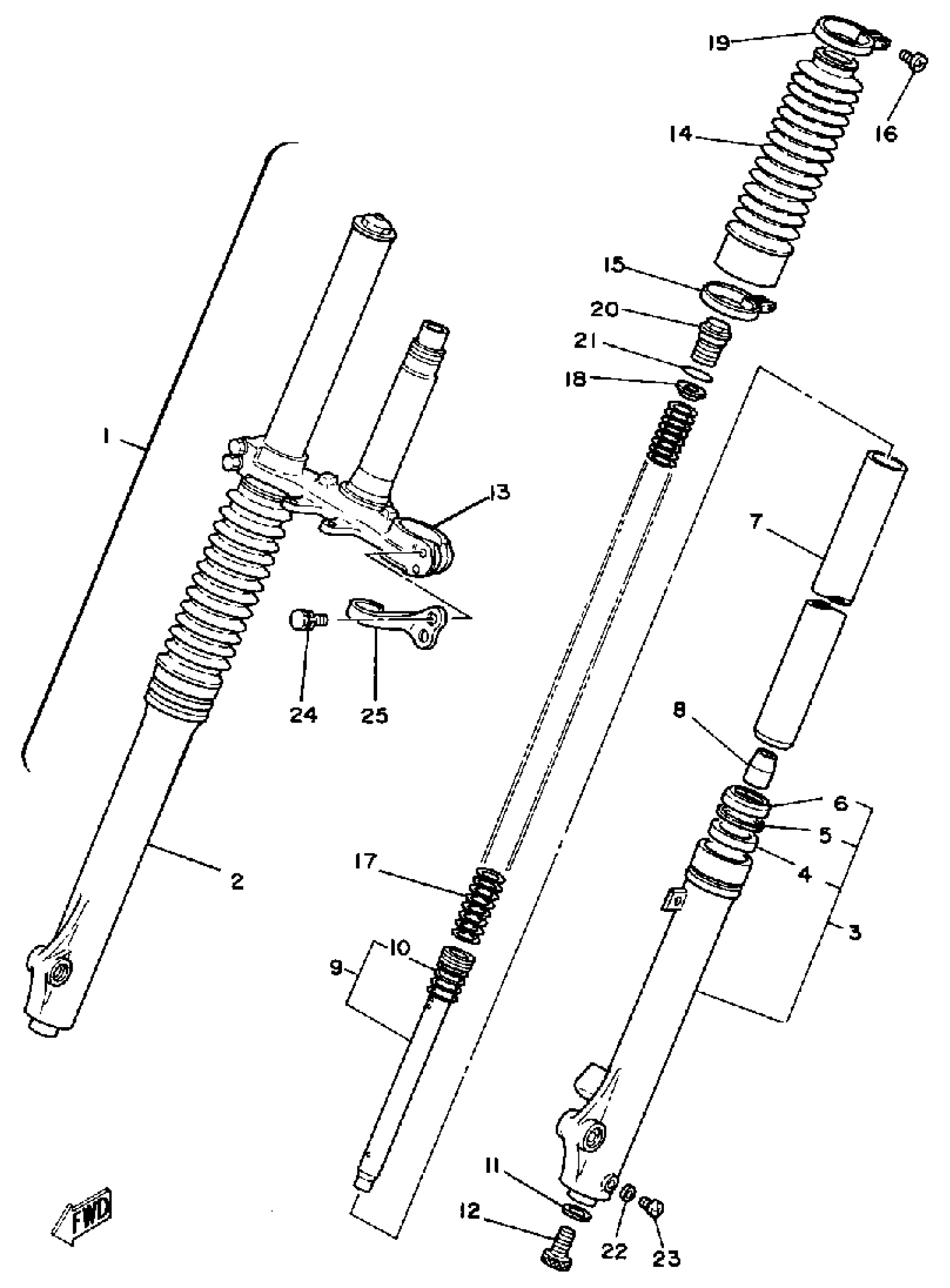

1981 Yamaha IT125 (IT125H) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(3R9-23101-10-00)

1
Out of stock

2

OUTER TUBE LH

(3R2-23106-00-00)

1
Out of stock

3

OUTER TUBE RH

(3R2-23107-01-00)

1
Out of stock

4

OIL SEAL

1T3-23145-00-00

1

$14.25

In stock

5

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

6

SEAL, DUST

4G0-23144-01-00

—

$23.62

In stock

7

INNER TUBE 1

(3R2-23110-00-00)

1
Out of stock

8

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

9

CYLINDER, FRTFRK

(3R9-23170-10-00)

1
Out of stock

10

.. SPRING, REBOUND

509-23151-L0-00

1
Out of stock

11

GASKET

509-23158-L0-00

1

$14.34

In stock

12

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1

$7.65

In stock

13

UNDER BRACKET

(3R2-23340-00-33)

1
Out of stock

14

BOOT, FRONT FORK

(3R2-23191-M0-00)

1
Out of stock

15

BAND, BOOT

341-92090-60-00

1
Out of stock

16

SCREW

509-23194-L0-00

—

$4.12

In stock

17

. UNAVAILABLE IN PRICE BOOK

3R9-23141-L0-00

1
Out of stock

18

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

19

SPACER

(1W2-23118-10-00)

1
Out of stock

20

. BOLT, CAP (583-23111-00)

2W6-23111-00-00

1
Out of stock

21

GASKET

240-23114-00-00

—

$12.27

In stock

22

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

23

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

24

. BOLT, HEXAGON SOCKET HEAD

5X6-23181-L0-00

1
Out of stock

25

GUIDE, WIRE

3R4-23389-00-00

—
Out of stock
