Description

Price

1

HOSE, TANK & VALVE

44434-13F10

Unavailable

2

SPRING

09440-13043

$7.72

3

CLIP

09401-11413

$2.24

4

VALVE FUEL TANK BREATHER

44240-17C00

$73.01

5

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$5.10

6

CUSHION (10X30X2)

44894-24A00

$1.78

7

SCREW

02142-0408B

$1.71

8

HOSE, VALVE & CANISTER

44435-13F00

Unavailable

9

CANISTER ASSY CHARCOAL

17210-26E00

$360.67

10

CAP CANISTER This part replaces 17211-48E00.

17211-48E01

$22.03

10A

CAP, PURGE

09251-07003

$2.77

11

HOSE, CANISTER & CARBURETOR

44436-13F00

Unavailable

12

SPRING

09440-13052

$7.10

13

CLIP

09401-12404

$2.37

14

BRACKET, CANISTER

44880-02F01

Unavailable

15

CUSHION CANISTER

44883-26E00

Unavailable

16

HOLDER

44882-02F01

Unavailable

17

SCREW

D2116-0612B

Unavailable

18

NUT

08316-1006B

$2.50

19

BRACKET, BREATHER VALVE

44890-13F00

Unavailable

20

CUSHION (10X30X2)

44894-24A00

$1.78

21

BOLT This part replaces D1557-0612B.

D1557-0616B

$0.29

22

HOSE, CARBURETOR | L:600 -->130

09355-54115-600

$12.71

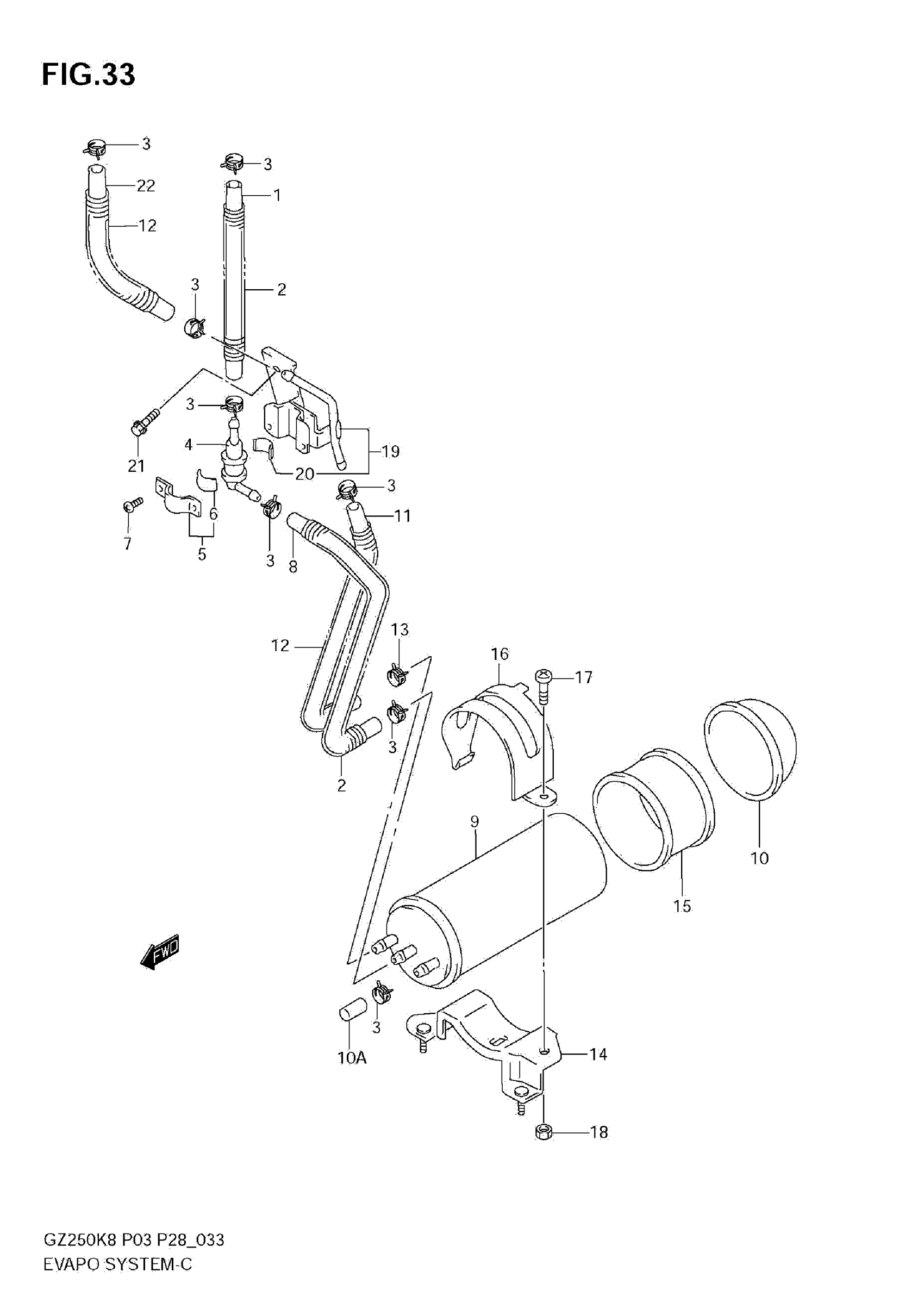

Suzuki GZ250K8 (2010) EVAPO SYSTEM (P33) Diagram

HOSE, TANK & VALVE

SPRING

CLIP

VALVE FUEL TANK BREATHER

PLATE,FUEL TANK BREATHER NO.2

CUSHION (10X30X2)

SCREW

HOSE, VALVE & CANISTER

CANISTER ASSY CHARCOAL

CAP CANISTER This part replaces 17211-48E00.

CAP, PURGE

HOSE, CANISTER & CARBURETOR

SPRING

CLIP

BRACKET, CANISTER

CUSHION CANISTER

HOLDER

SCREW

NUT

BRACKET, BREATHER VALVE

CUSHION (10X30X2)

BOLT This part replaces D1557-0612B.

HOSE, CARBURETOR | L:600 -->130
