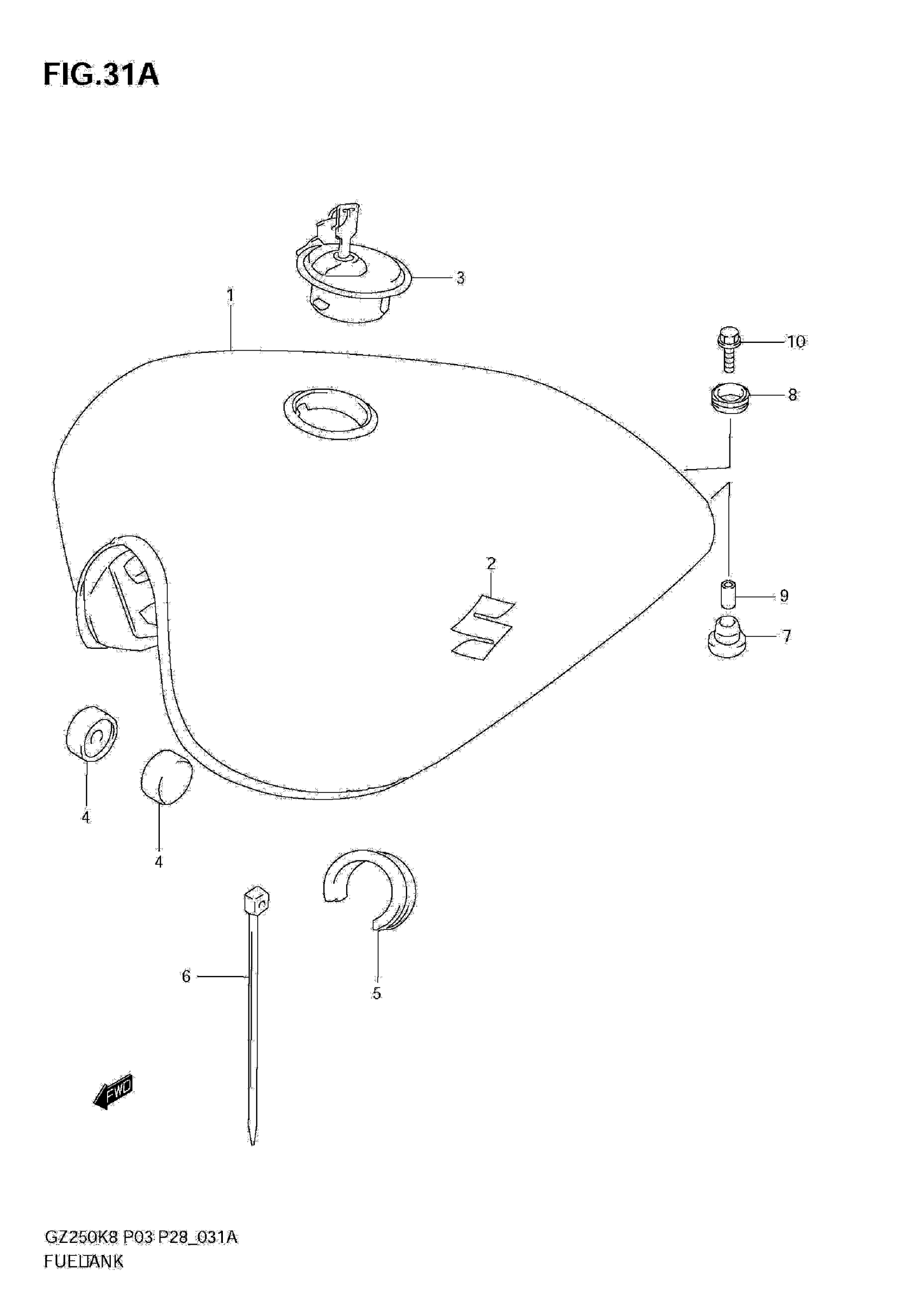

Suzuki GZ250K8 (2010) FUEL TANK (MODEL L0) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | E3, E28 This part replaces 44100-12FU0-YAY.

44100-12FS0-YAY

Unavailable

1

TANK ASSY, FUEL (WHITE) | E3, E28

44100-12FU0-YC3

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33

49100-12F00-YAY

Unavailable

1

TANK ASSY, FUEL (WHITE) | E33

49100-12F00-YC3

Unavailable

2

EMBLEM, "S"

68111-18G20

$29.56

3

CAP SET,FUEL TA | E3, E28 This part replaces 44200-41830.

44200-41832

$179.58

3

CAP SET,FUEL TA | E33 This part replaces 44200-41840.

44200-41842

$124.15

4

CUSHION This part replaces 09329-10007.

09329-10026

$1.91

5

CUSHION,FUEL TA This part replaces 44541-03F00.

44541-03F01

$14.45

6

CLAMP This part replaces 09407-20405.

09407-25402

$4.19

7

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.71

8

CUSHION, FUEL TANK REAR UPPER

44512-42E00

$3.22

9

SPACER (6.5X9X18)

09180-06271

$2.17

10

BOLT This part replaces D1557-0630B.

01550-0630B

$2.80
