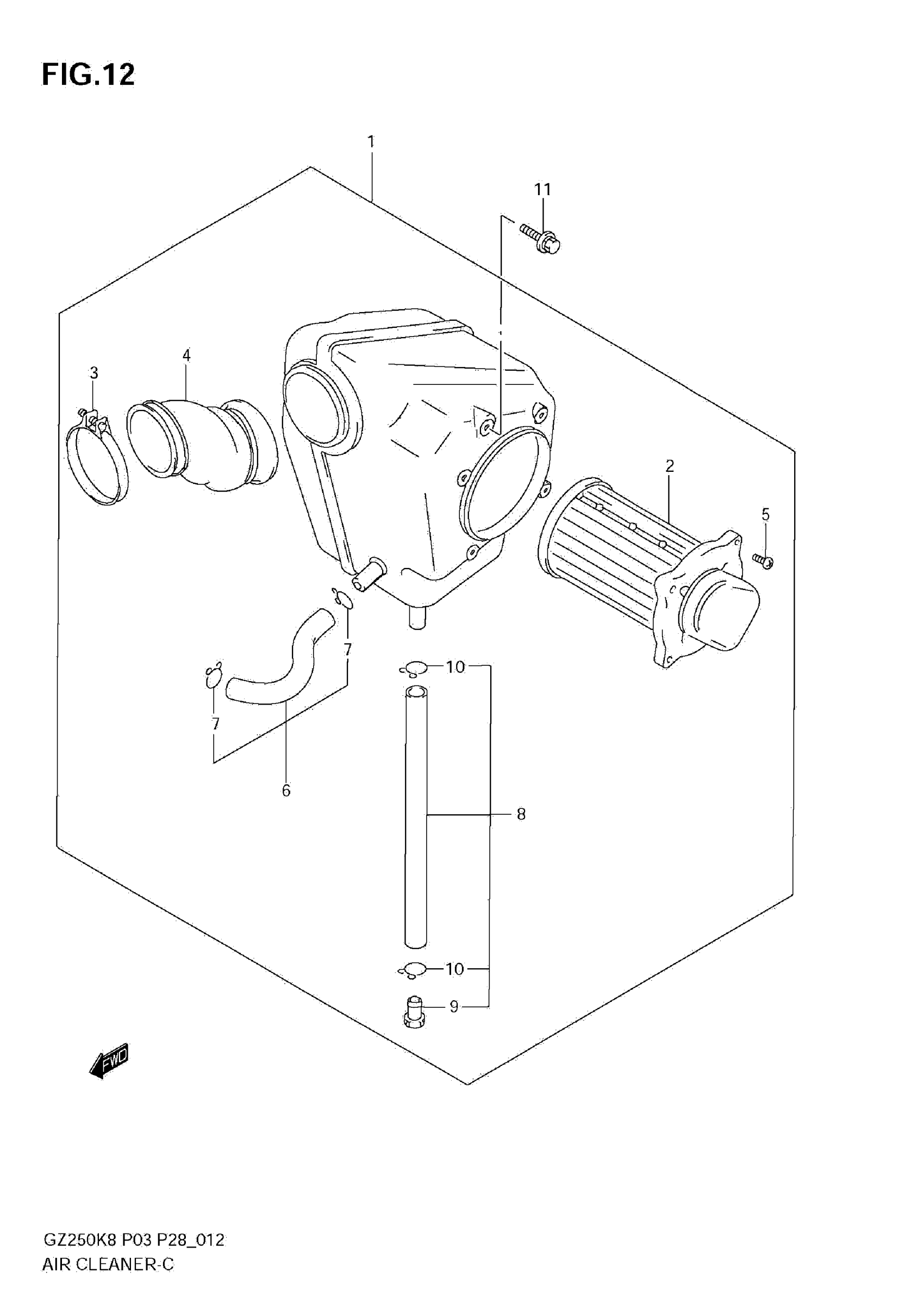

Suzuki GZ250K8 (2010) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-13F00

Unavailable

2

FILTER, AIR CLEANER

13780-13F00

$34.49

3

CLAMP

09402-58208

$4.84

4

TUBE,OUTLET This part replaces 13881-13F00.

13881-13F01

$38.30

5

SCREW

02142-0516B

$1.95

6

TUBE, BREATHER

13850-13F00

Unavailable

7

CLIP

09401-14301

$2.17

8

TUBE, DRAIN

13870-12F00

Unavailable

9

PLUG

13877-00190

$6.00

10

CLIP

09401-14301

$2.17

11

BOLT

01580-0616B

Unavailable
