2010 Suzuki GZ250K8 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2010 Suzuki GZ250K8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

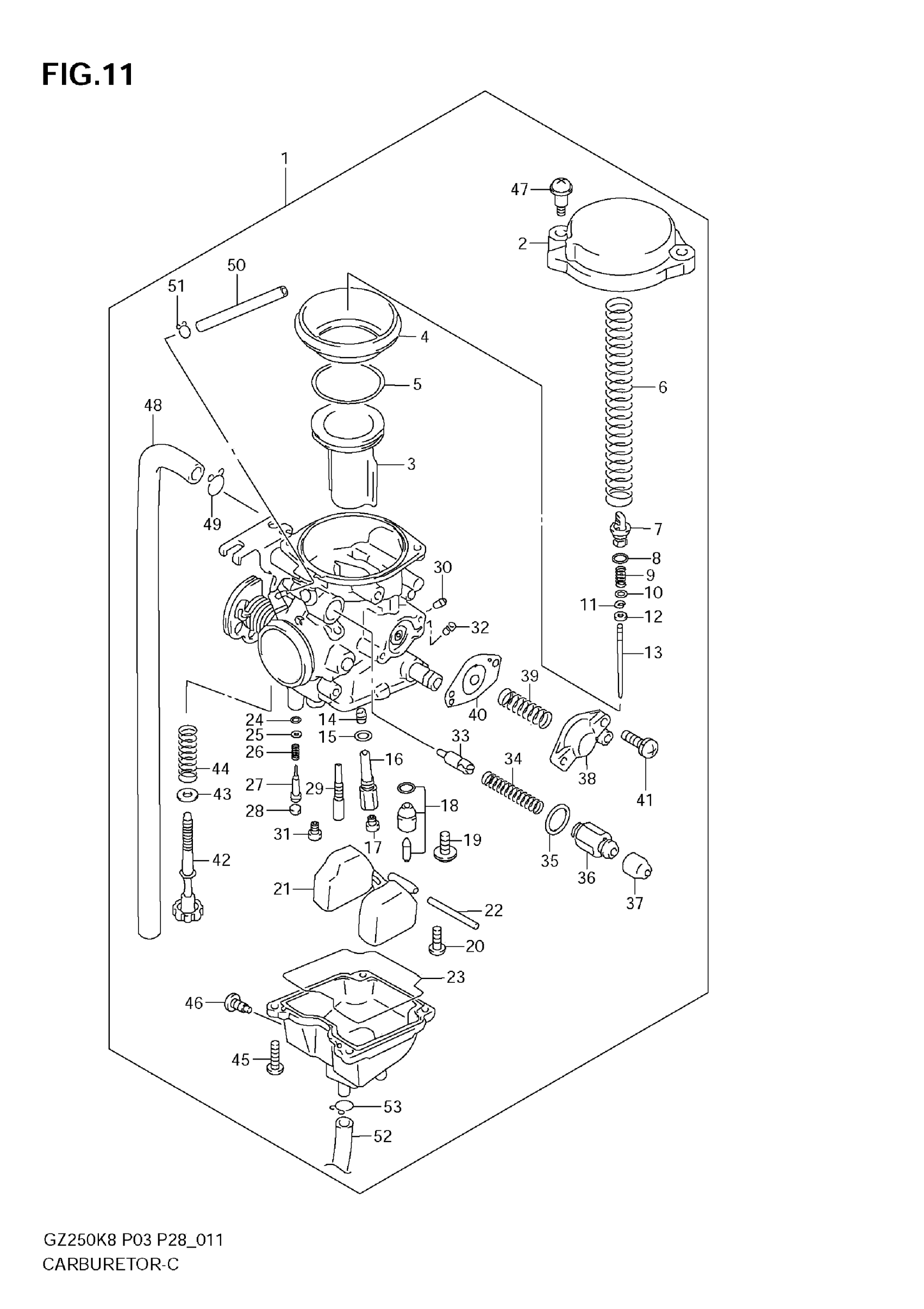

2010 Suzuki GZ250K8 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY | E3, E28

13200-13F30

1
Out of stock

1

CARBURETOR ASSY | E33

13200-13F40

1

$386.90

In stock

2

DIAPHRAGM COVER

13502-19E00

1
Out of stock

3

VALVE, PISTON

13501-13F00

1
Out of stock

4

DIAPHRAGM This part replaces 13507-19E00.

13507-19E01

1
Out of stock

5

RING

13504-16E00

1

$7.03

In stock

6

SPRING

13573-04F00

1

$15.43

In stock

7

HOLDER

13418-33E00

1

$5.66

In stock

8

1

$2.50

In stock

9

SPRING

13481-13F00

1
Out of stock

10

WASHER

13382-12F40

1

$4.92

In stock

11

1

$2.19

In stock

12

RING

13387-13F00

1

$8.14

In stock

13

NEEDLE, JET (5C65-1)

13383-13F30

1
Out of stock

14

JET, NEEDLE (P-0M)

09494-00921

1

$41.57

In stock

15

1

$4.33

In stock

16

HOLDER, JET

13385-13F00

1

$38.53

In stock

17

JET, MAIN (120)

09491-24026

1
Out of stock

18

VALVE ASSY,NEED This part replaces 13370-04F00.

13370-04F01

1
Out of stock

19

SCREW

13602-05A10

1

$3.55

In stock

20

1

$1.15

In stock

21

FLOAT ASSY

13250-04F00

1

$34.63

In stock

22

.PIN, FLOAT

13254-01010

1

$4.80

In stock

23

GASKET

13258-04F00

1

$9.87

In stock

24

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

25

WASHER

13291-29900

1
Out of stock

26

SPRING,THROTTLE SCREW

13268-48700

1

$4.33

In stock

27

ADJUSTER (1 1/2)

13279-13F00

1

$14.18

In stock

28

PLUG

13281-05A00

1
Out of stock

29

JET

09492-17016

1
Out of stock

30

JET, MAIN (87.5)

09492-87002

1
Out of stock

31

JET, MAIN (52.5)

09491-52003

1
Out of stock

32

JET, PILOT AIR (120)

09493-24013

1
Out of stock

33

PLUNGER

13411-24D00

1
Out of stock

34

SPRING

13417-07F00

1

$7.20

In stock

35

1

$2.01

In stock

36

HOLDER, GUIDE

13418-07F00

1

$16.05

In stock

37

.CAP This part replaces 13681-04010.

13681-04011

1
Out of stock

38

COVER ASSY

13502-10F00

1

$44.80

In stock

39

SPRING

13271-13F00

1
Out of stock

40

DIAPHRAGM ASSY This part replaces 13480-13F00.

13480-13F01

1
Out of stock

41

SCREW

13601-04148

2
Out of stock

42

ADJUST SCREW ASSY

13267-13F00

1
Out of stock

43

PACKING

13285-07F00

1
Out of stock

44

SPRING

13342-82370

1
Out of stock

45

SCREW

02112-04107

4

$1.67

In stock

46

1

$4.97

In stock

47

SCREW

13247-33E00

2

$2.93

In stock

48

HOSE

13686-13F00

1
Out of stock

49

CLIP

13671-06A10

1
Out of stock

50

HOSE This part replaces 13686-13F10.

13686-13F11

1
Out of stock

51

CLIP

13671-13F00

1
Out of stock

52

HOSE(4.5X8X650) This part replaces 13683-20B00.

13683-20B01

1
Out of stock

53

CLIP

09401-08410

1
Out of stock
