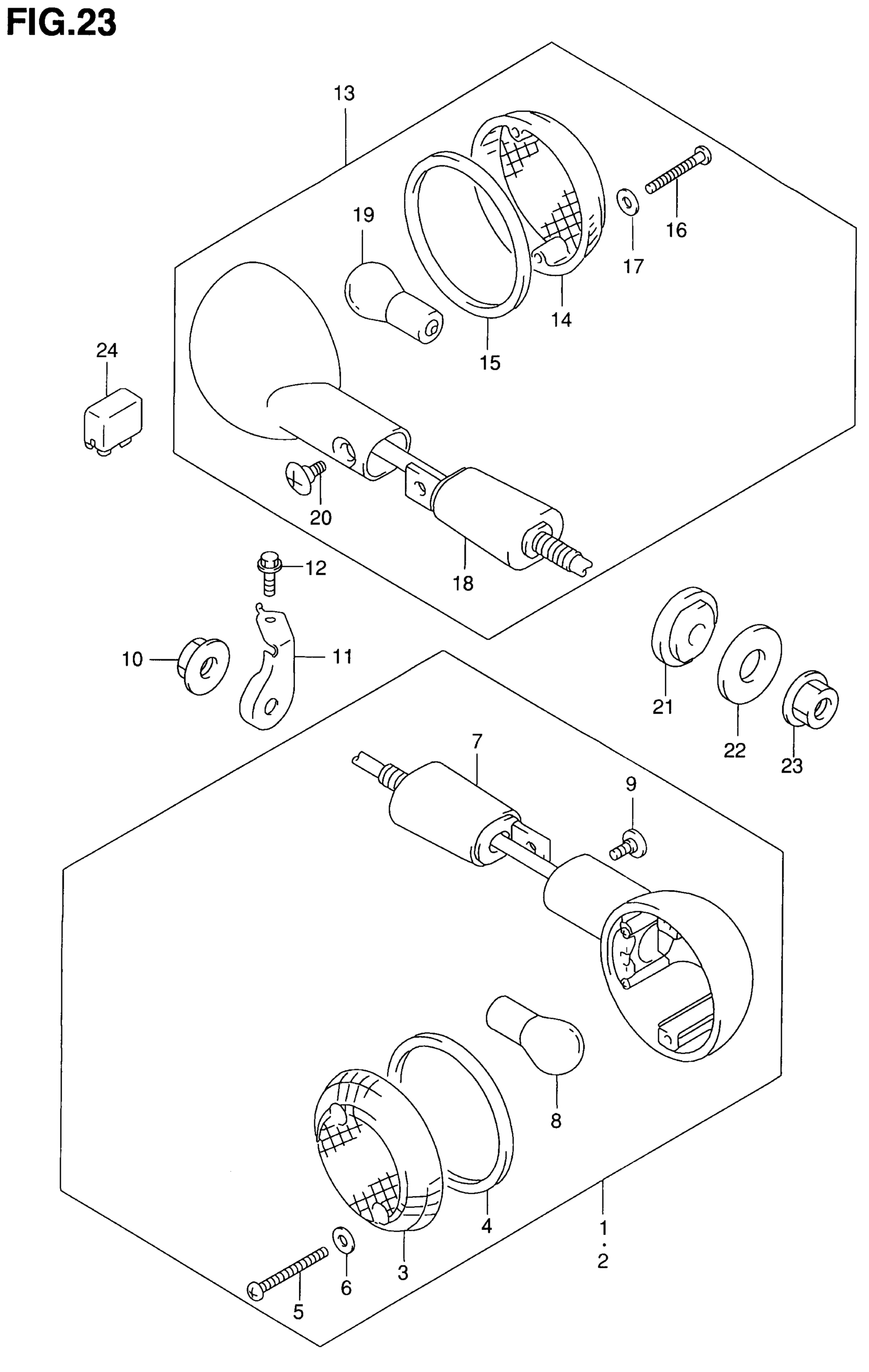

Suzuki GZ250 (2001) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT RH

35601-12F30

Unavailable

2

LAMP ASSY, FRONT LH | Includes Item(s) 3 - 9

35602-12F30

Unavailable

3

LENS

35612-38A30

$20.22

4

GASKET

35613-38A00

$10.99

5

SCREW This part replaces 03211-04253.

03211-0425B

$2.95

6

GASKET

35627-43010

$2.29

7

STAY, TURN SIGNAL

35619-45C10

$54.29

8

BULB (12V,21/5W) | BF141-49642A

09471-12128

$6.08

9

SCREW

35623-38A01

$4.75

10

NUT This part replaces 08316-10103.

08316-1010B

$2.65

11

BRACKET, FR RH

35670-12F00

Unavailable

11

BRACKET, FR LH

35680-12F00

$14.73

12

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

13

LAMP ASSY, REAR TURN | Includes Item(s) 14 - 20

35603-33D60

$175.87

14

LENS

35652-38A21

$15.43

15

GASKET

35613-38A00

$10.99

16

SCREW This part replaces 03211-04253.

03211-0425B

$2.95

17

GASKET

35627-43010

$2.29

18

STAY, TURN SIGNAL

35659-45C10

$33.36

19

BULB (12V,21W)

09471-12045

$2.95

20

SCREW

35623-38A01

$4.75

21

SPACER

35695-17C00

$3.69

22

WASHER (10.5X30X2.3)

09160-10501

$2.33

23

NUT This part replaces 08316-10103.

08316-1010B

$2.65

24

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
