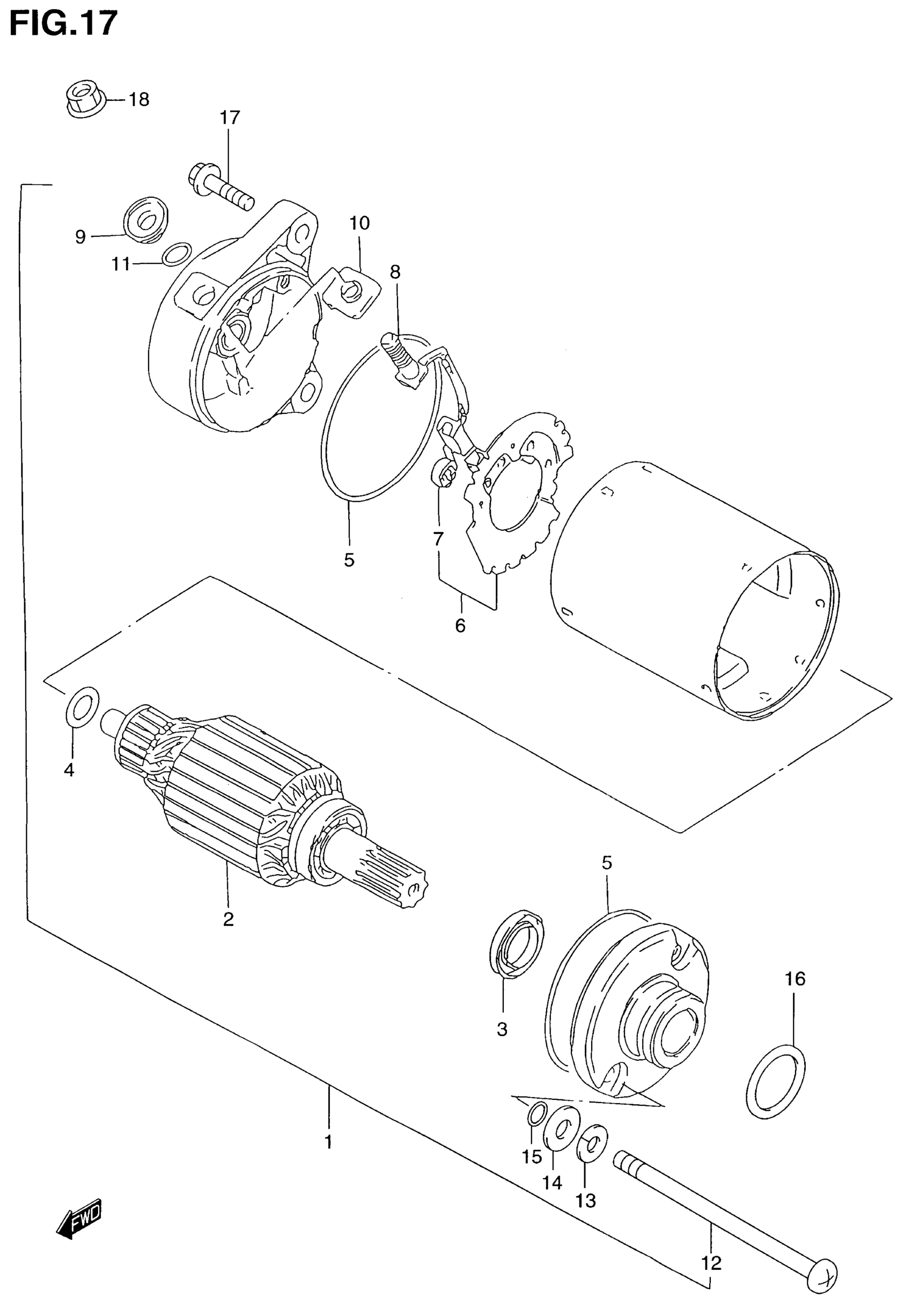

Suzuki GZ250 (2001) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 16

31100-38300-H17

$736.23

2

ARMATURE

31311-49211-H17

Unavailable

3

OIL SEAL

31153-49210

$27.32

4

SHIM SET

31170-43400

Unavailable

5

O RING

31264-44110

$13.40

6

HOLDER, BRUSH

31132-27A01

$83.02

7

SPRING

31135-65010

$5.10

8

BRUSH (+)

31130-38300

$20.82

9

BUSH

31172-38300

$5.24

10

BUSH, B

31171-38300

$10.08

11

O RING

31143-38300

$5.75

12

BOLT

31281-87402

Unavailable

13

LOCK WASHER

08321-01067

$1.83

14

WASHER

31161-38300

Unavailable

15

O RING

31156-38300

$5.10

16

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

17

BOLT

01550-06257

$2.31

18

NUT This part replaces 08361-35068.

08361-3506A

$1.81
