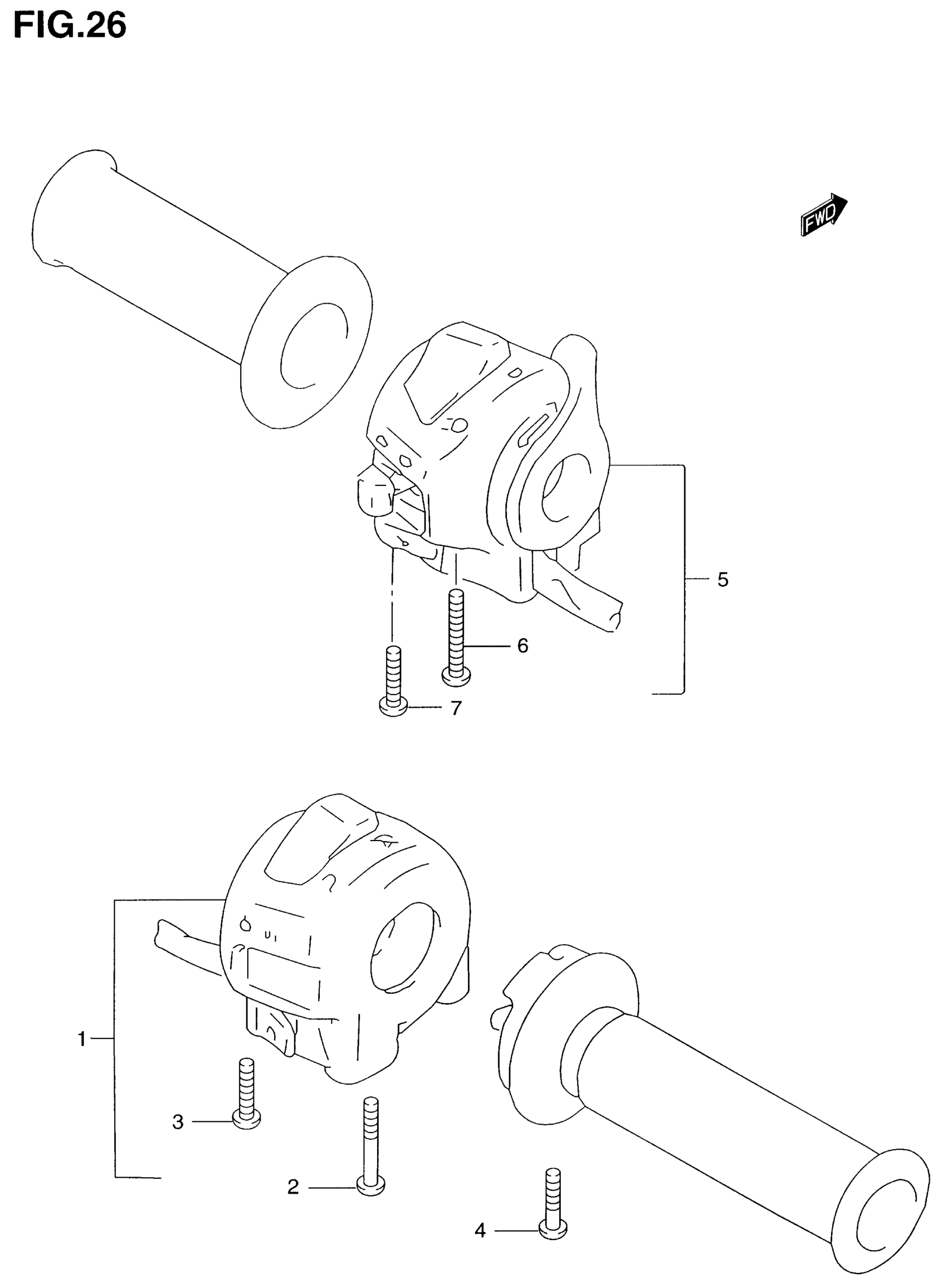

Suzuki GZ250 (2001) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | Includes Item(s) 2 - 3

37200-33E31

Unavailable

2

SCREW This part replaces 02112-05303.

02112-0530A

$1.93

3

SCREW This part replaces 02112-05503.

02112-0550B

$2.49

4

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.46

5

SWITCH ASSY, HANDLE LH | Includes Item(s) 6

37400-33E31

Unavailable

6

SCREW, PIVOT This part replaces 02112-05253.

02112-0525A

$1.49

7

.SCREW This part replaces 02112-05453.

02112-0545B

$2.32
