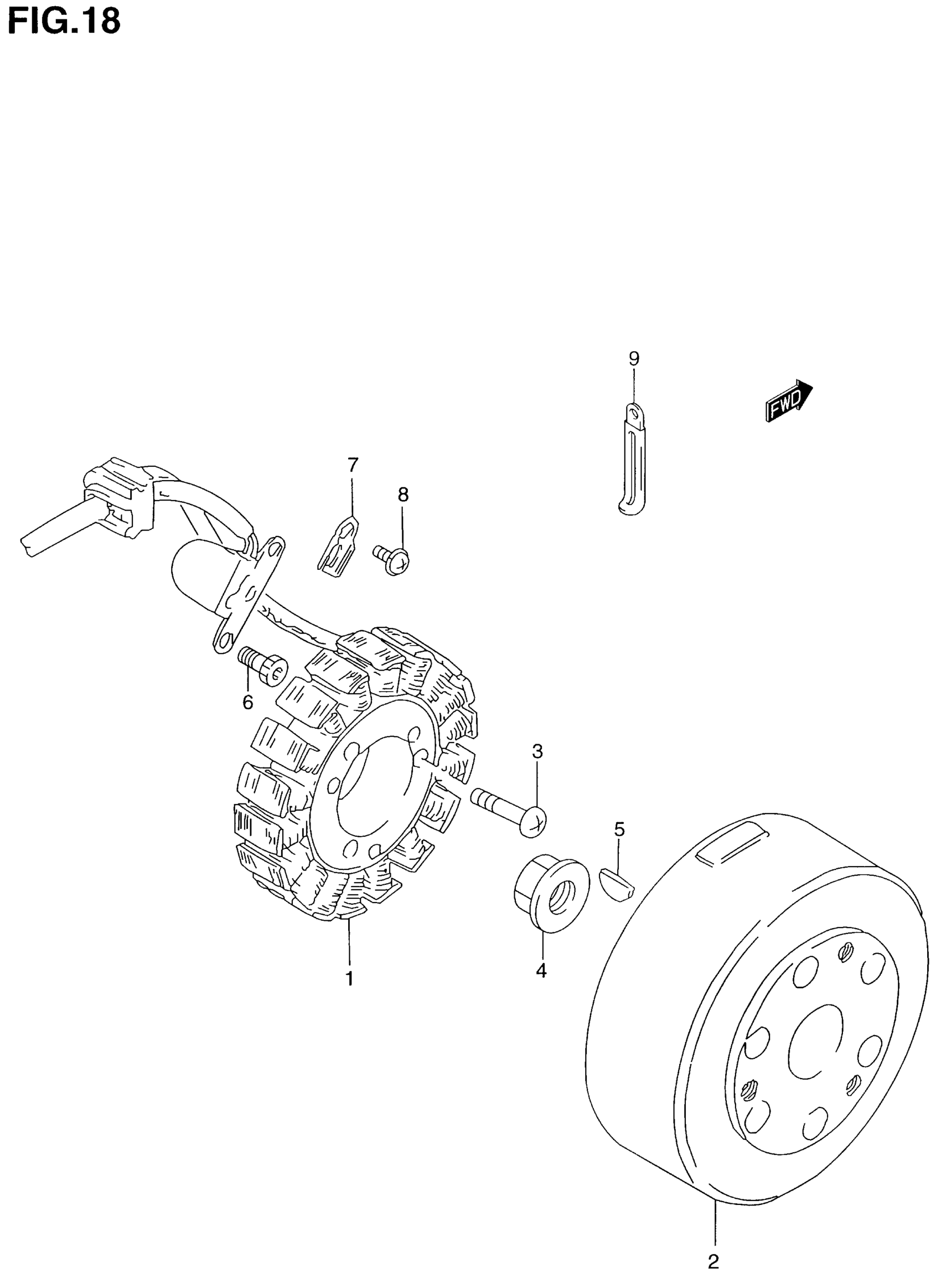

Suzuki GZ250 (2001) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-13F00.

32101-13F01

$535.30

2

ROTOR ASSY

32102-13F01

Unavailable

3

SCREW This part replaces 02112-06253.

02112-0625A

$1.79

4

NUT, GENERATOR

31792-49200

$9.12

5

KEY

08341-31039

$1.89

6

BOLT This part replaces 07130-05123.

07130-0512B

$2.53

7

CLAMP, GENERATOR LEAD WIRE

31497-45000

$2.17

8

SCREW This part replaces 02142-35083.

02142-3508B

$3.17

9

CLAMP This part replaces 09404-06432.

09404-06039

$1.73
