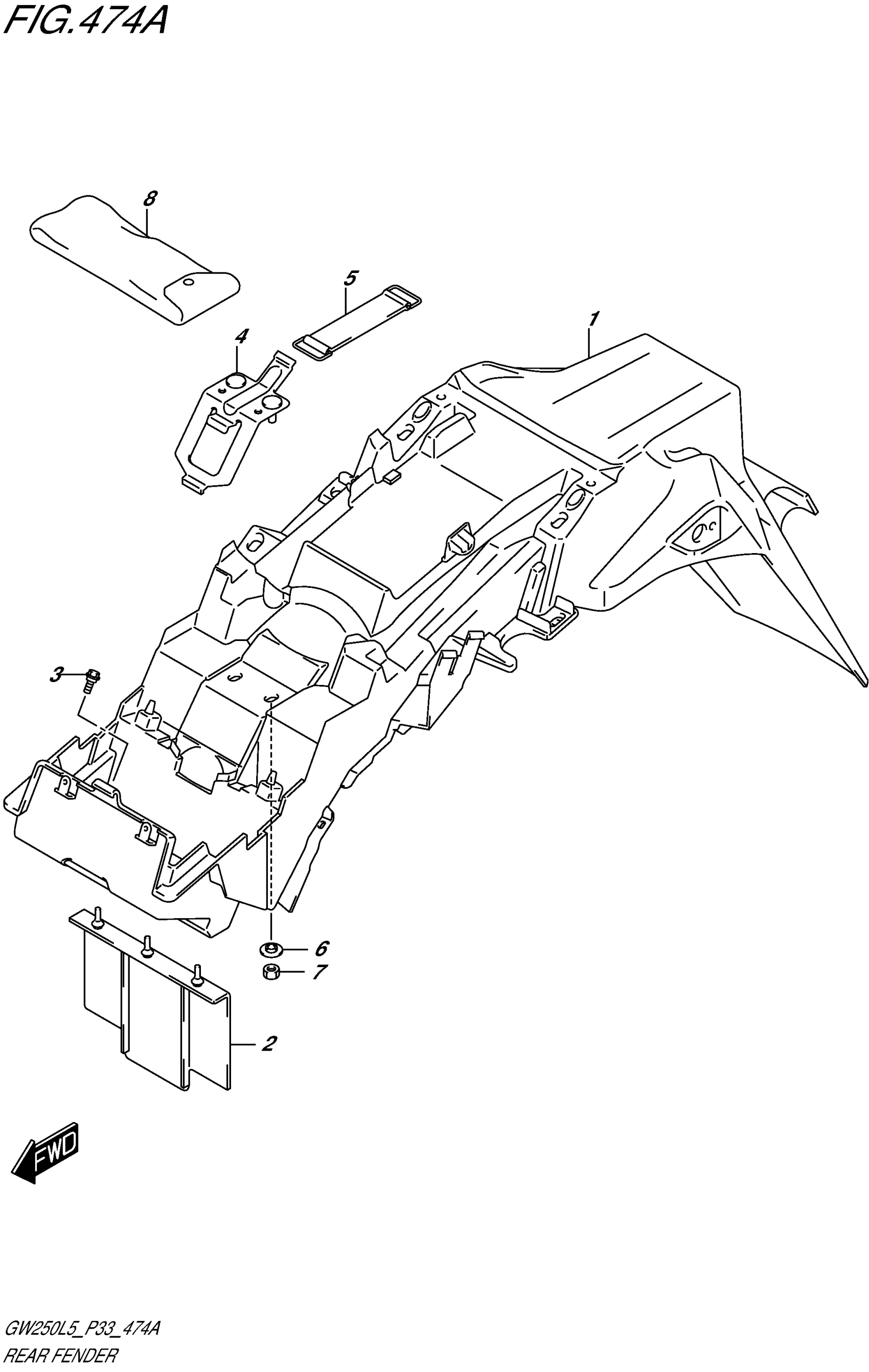

Suzuki GW250L5 (2015) REAR FENDER Diagram

#

Description

Price

1

FENDER, REAR

63111-48H31

$61.75

2

MUDGUARD, REAR FENDER

63113-48H00

$10.05

3

BOLT (6X12)

09111-06107

$2.66

4

HOLDER, TOOL

41550-48H00

Unavailable

5

BAND, TOOL

47435-48H00

Unavailable

6

WASHER, TOOL HOLDER

47445-48H00

$3.30

7

NUT

08316-1006A

$2.19

8

TOOL ASSY

96510-48H00

Unavailable
