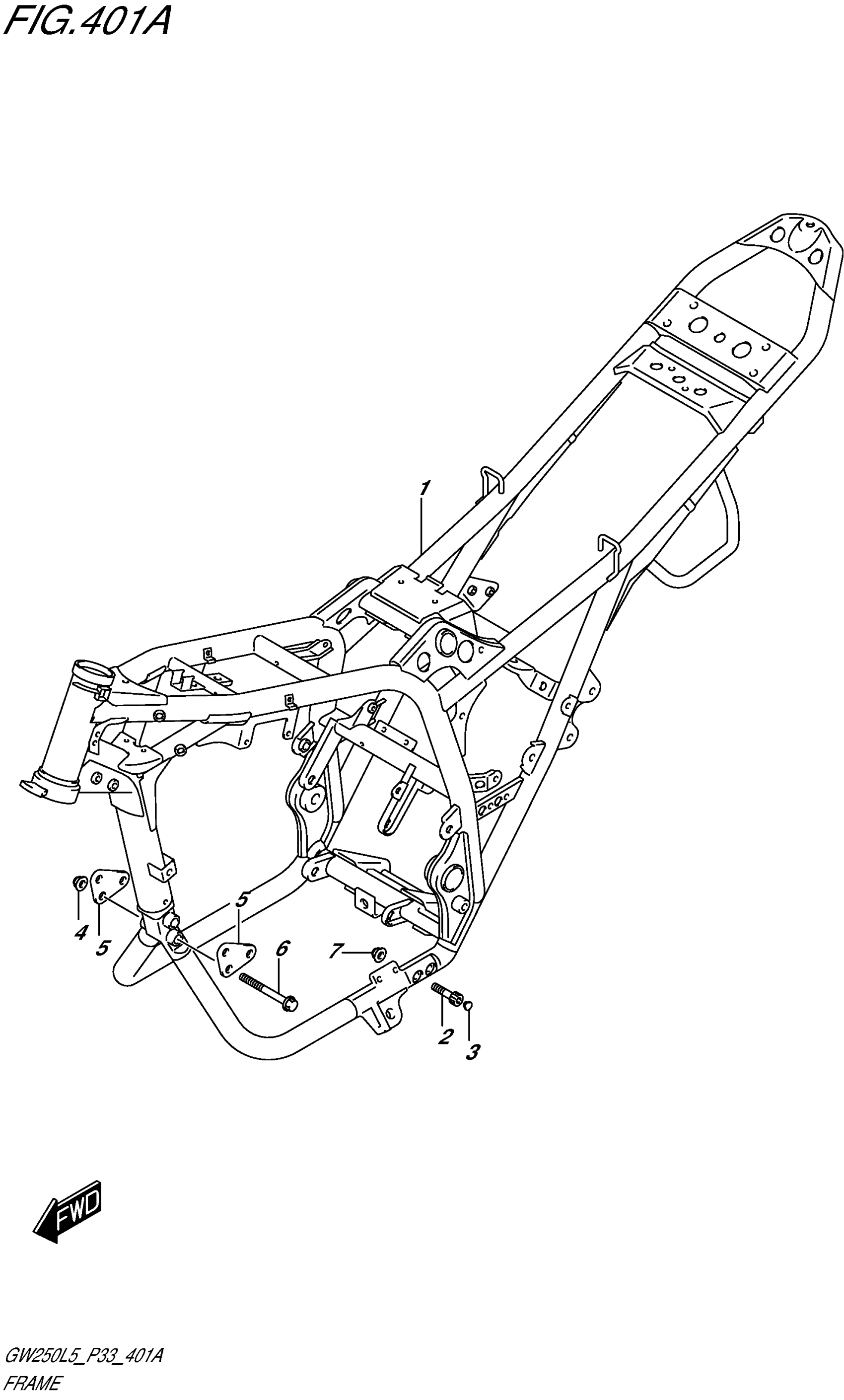

Suzuki GW250L5 (2015) FRAME Diagram

#

Description

Price

1

FRAME

41100-48H20

$1,328.07

2

BOLT (10X37)

09106-10068

$3.80

3

CAP,FRAME LOWER TUBE (OD:12)

41498-48H00

Unavailable

4

NUT

08319-3110B

$4.20

5

BRACKT, ENGINE MOUNTING FRONT

41942-48H00

Unavailable

6

BOLT (10X85)

09103-10445

$6.07

7

NUT

08319-3110B

$4.20
