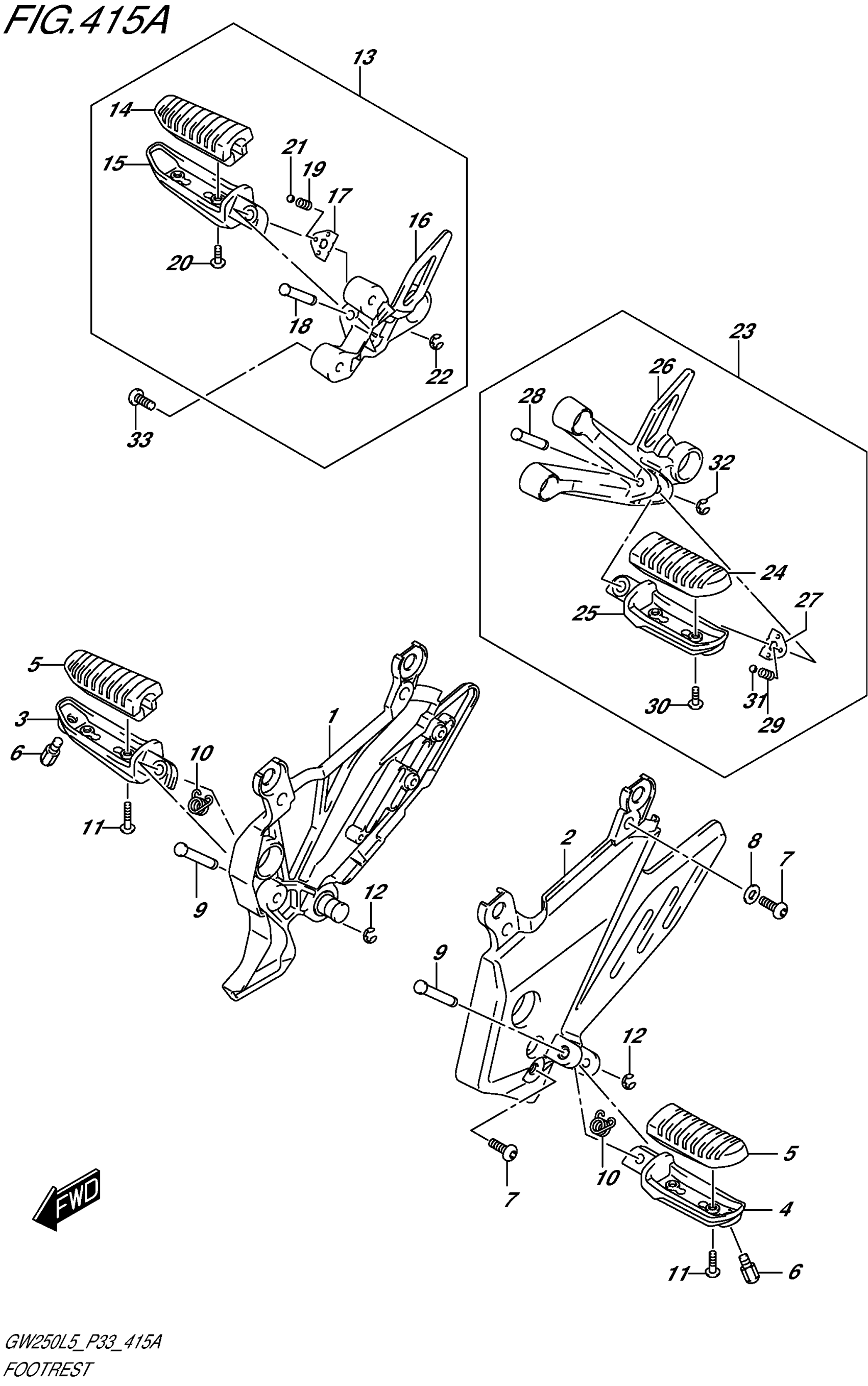

Suzuki GW250L5 (2015) FOOTREST Diagram

#

Description
Price

1

BRACKET, FOOTREST RH

43510-48H10

$160.20

2

BRACKET, FOOTREST LH

43521-48H10

$154.70

3

BAR,FR FOOTREST,R

43511-44G10

$44.44

4

BAR,FR FOOTREST,L

43521-44G10

$43.20

5

RUBBER, FOOTREST

43550-44G20

$37.22

6

BOLT,BANK SENSOR

43576-48H00

$3.35

7

BOLT (8X20)

09106-08194

$4.55

8

WASHER (9X19X1.0)

09160-09015

$2.58

9

PIN

09208-08022

Unavailable

10

SPRING

09448-16033

$0.85

11

SCREW

02142-0512A

$1.37

12

E RING

08332-1106A

$1.43

13

FOOTREST ASSY, PILLION RH

43600-48H00

Unavailable

14

RUBBER, FOOTREST

43550-44G00

$40.13

15

BAR, PILLION FOOTREST RH

43611-44G00

$61.88

16

BRACKET, PILLION FOOTREST RH

43811-48H00

Unavailable

17

PLATE,PILLION FOOTREST

43816-01H10

$8.87

18

PIN

09208-08021

$1.70

19

SPRING

09440-05003

$1.48

20

SCREW

02142-0512A

$1.37

21

BALL

06111-07004

$1.22

22

E RING

08332-1106A

$1.43

23

FOOTREST ASSY, PILLION LH

43700-48H00

Unavailable

24

RUBBER, FOOTREST

43550-44G00

$40.13

25

BAR, PILLION FOOTREST LH

43621-44G00

$61.88

26

BRACKET,PILLION This part replaces 43821-48H00.

43821-48H10

$73.15

27

PLATE,PILLION FOOTREST

43816-01H10

$8.87

28

PIN

09208-08021

$1.70

29

SPRING

09440-05003

$1.48

30

SCREW

02142-0512A

$1.37

31

BALL

06111-07004

$1.22

32

E RING

08332-1106A

$1.43

33

BOLT (8X23)

09106-08150

$3.13
