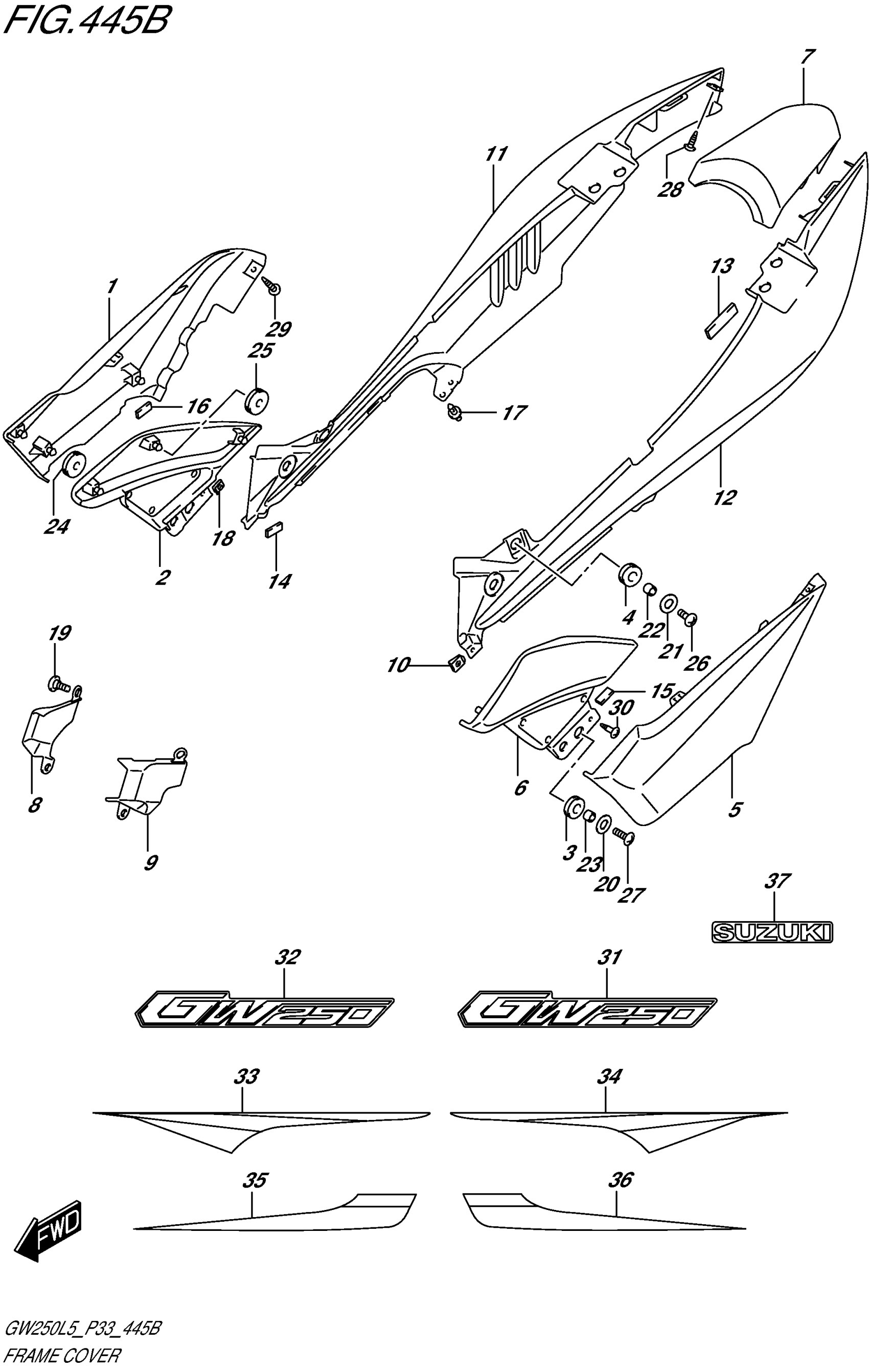

Suzuki GW250L5 (2015) FRAME COVER (GW250ZL5 P33) Diagram

COVER, FRAME RH (BLACK)

47111-48H00-YAY

Unavailable

COVER, FRAME FRONT RH (BLACK)

47121-48H00-AQ8

Unavailable

CUSHION,FRAME COVER This part replaces 47161-48H00.

47161-48H10

$2.02

CUSHION,FRAME COVER This part replaces 47161-48H00.

47161-48H10

$2.02

COVER, FRAME LH (BLACK)

47211-48H00-YAY

Unavailable

COVER, FRAME FRONT LH (BLACK)

47221-48H00-AQ8

Unavailable

COVER, FRAME UPPER CENTER (BLACK)

47311-48H00-YAY

Unavailable

COVER, FRAME HEAD RH

47351-48H00

Unavailable

COVER, FRAME HEAD LH

47361-48H00

$5.47

NUT

47399-48H00

$2.68

COVER, FRAME UPPER RH (BLACK)

47831-48H00-YAY

$310.70

COVER,FRAME UPR This part replaces 47841-48H00-YAY.

47841-48H01-YAY

$187.80

CUSHION, COVER UPPER REAR

47845-48H00

$4.20

CUSHION, COVER UPPER

47846-48H00

$2.22

CUSHION, COVER FRONT

47846-48H00

$2.22

CUSHION, FRAME COVER

47846-48H00

$2.22

CLIP, COVER UPPER

48292-32GH0

$2.93

NUT, COVER FRAME FRONT

93162-37G00

Unavailable

SCREW, FRAME HEAD COVER

47353-48H00

$3.92

WASHER (6.5X20X1.2)

09160-06077

$1.89

WASHER (6.5X20X1.2)

09160-06077

$1.89

SPACER (6.5X10X7)

09180-06283

$1.89

SPACER (6.5X10X7)

09180-06283

$1.89

CUSHION

09320-08018

$2.80

CUSHION

09320-08018

$2.80

SCREW

02142-0620A

$1.38

SCREW

02142-0620A

$1.38

SCREW

03541-0516A

$1.37

SCREW

03541-0516A

$1.37

SCREW

03541-0516A

$1.37

EMBLEM, FRAME COVER RH (GRAY)

68131-48H60-JM4

$6.53

EMBLEM, FRAME COVER LH (GRAY)

68141-48H60-JM4

$6.53

TAPE, FRAME COVER RH (RED/BLACK)

68135-48H00-AY4

Unavailable

TAPE, FRAME COVER LH (RED/BLACK)

68145-48H00-AY4

Unavailable

TAPE, FRAME COVER FRONT RH (RED/BLACK)

68136-48H00-AY4

Unavailable

TAPE, FRAME COVER FRONT LH (RED/BLACK)

68146-48H00-AY4

Unavailable

EMBLEM,"SUZUKI" This part replaces 68281-48H00-YMD.

68281-48H01-YMD

$8.32
