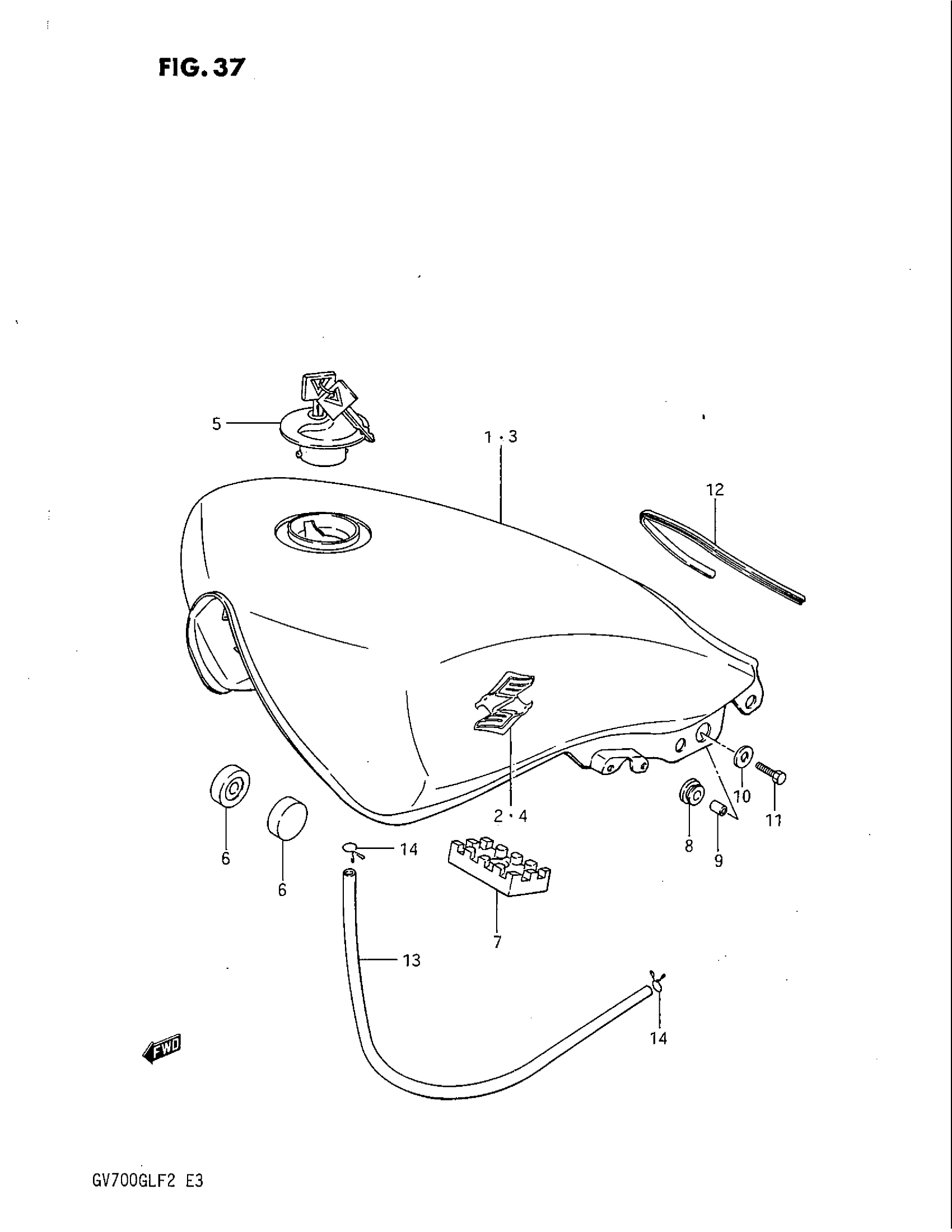

Find the part on the Fuel Tank diagram for your 1985 Suzuki GV700GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Suzuki GV700GL Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY,FUEL | OTHER THAN CALIFORNIA This part replaces 44100-05A00-20F.

44110-05A00-YD8

1
Out of stock

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 44100-05A10-20F.

44110-05A10-13L

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL F2 CALIFORNIC ONLY; Includes Item(s) 2 This part replaces 44100-05A10-22U.

44110-05A10-13L

1
Out of stock

2

EMBLEM This part replaces 68111-05A00-22C.

68111-38A10-38R

2
Out of stock

3

TANK ASSY,FUEL | OTHER THAN CALIFORNIA This part replaces 44100-05A00-019.

44110-05A00-YD8

1
Out of stock

3

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY; Includes Item(s) 4 This part replaces 44100-05A10-019.

44110-05A10-13L

1
Out of stock

4

EMBLEM, FUEL TA This part replaces 68111-05A00-22L.

68111-38A10-0GZ

2
Out of stock

5

CAP, FILLER | OTHER THAN CALIFORNIA

44200-05A10-KEY

1
Out of stock

6

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

7

1

$13.20

In stock

8

CUSHION, REAR

09320-10005

2

$2.88

In stock

9

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

2
Out of stock

10

2

$2.05

In stock

11

2

$2.48

In stock

12

MOLD, FUEL TANK REAR

44578-05A00

1
Out of stock

13

HOSE, BREATHER

09343-07141

1
Out of stock

14

2

$2.41

In stock
