1985 Suzuki GV700GL AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1985 Suzuki GV700GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

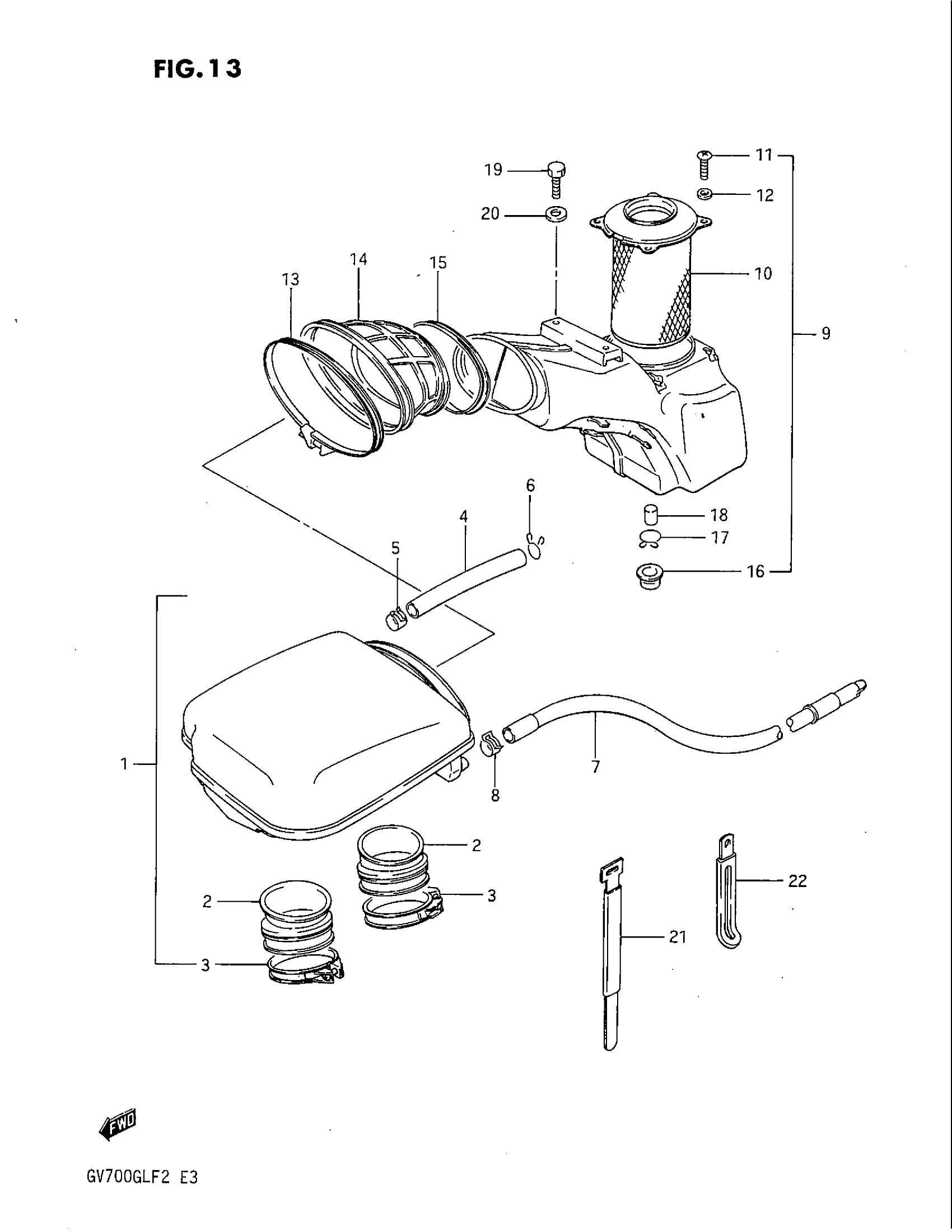

1985 Suzuki GV700GL AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAMBER ASSY | Includes Item(s) 2 - 8

13701-07A00

1
Out of stock

2

TUBE, OUTLET

13881-05A00

4
Out of stock

3

CLAMP This part replaces 09402-58207.

09402-58208

4
Out of stock

4

HOSE, BREATHER

13854-07A00

1
Out of stock

5

CLAMP

13824-05A00

1
Out of stock

6

CLIP This part replaces 13828-37300.

09401-16401

1
Out of stock

7

TUBE, DRAIN

13870-05A00

1
Out of stock

8

CLAMP This part replaces 13825-43400.

09401-13417

1
Out of stock

9

CASE ASSY, FILTER | Includes Item(s) 10 - 18

13702-05A00

1
Out of stock

10

FILTER ASSY This part replaces 13780-05A00.

13780-01D00

1
Out of stock

11

4

$1.55

In stock

12

LOCK WASHER This part replaces 08321-21055.

08321-0105A

4
Out of stock

13

CLAMP, CHAMBER

13826-05A00

1
Out of stock

14

JOINT, TUBE

13739-05A00

1
Out of stock

15

CLAMP, CASE

13827-05A00

1
Out of stock

16

CAP, DRAIN

13872-05A00

1
Out of stock

17

CLIP

09401-14301

1
Out of stock

18

FILTER, DRAIN

13789-00020

1
Out of stock

19

2

$2.10

In stock

20

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

21

CLAMP This part replaces 09407-11301.

09407-18302

1
Out of stock

22

CLAMP This part replaces 09404-06412.

09404-06039

1
Out of stock
