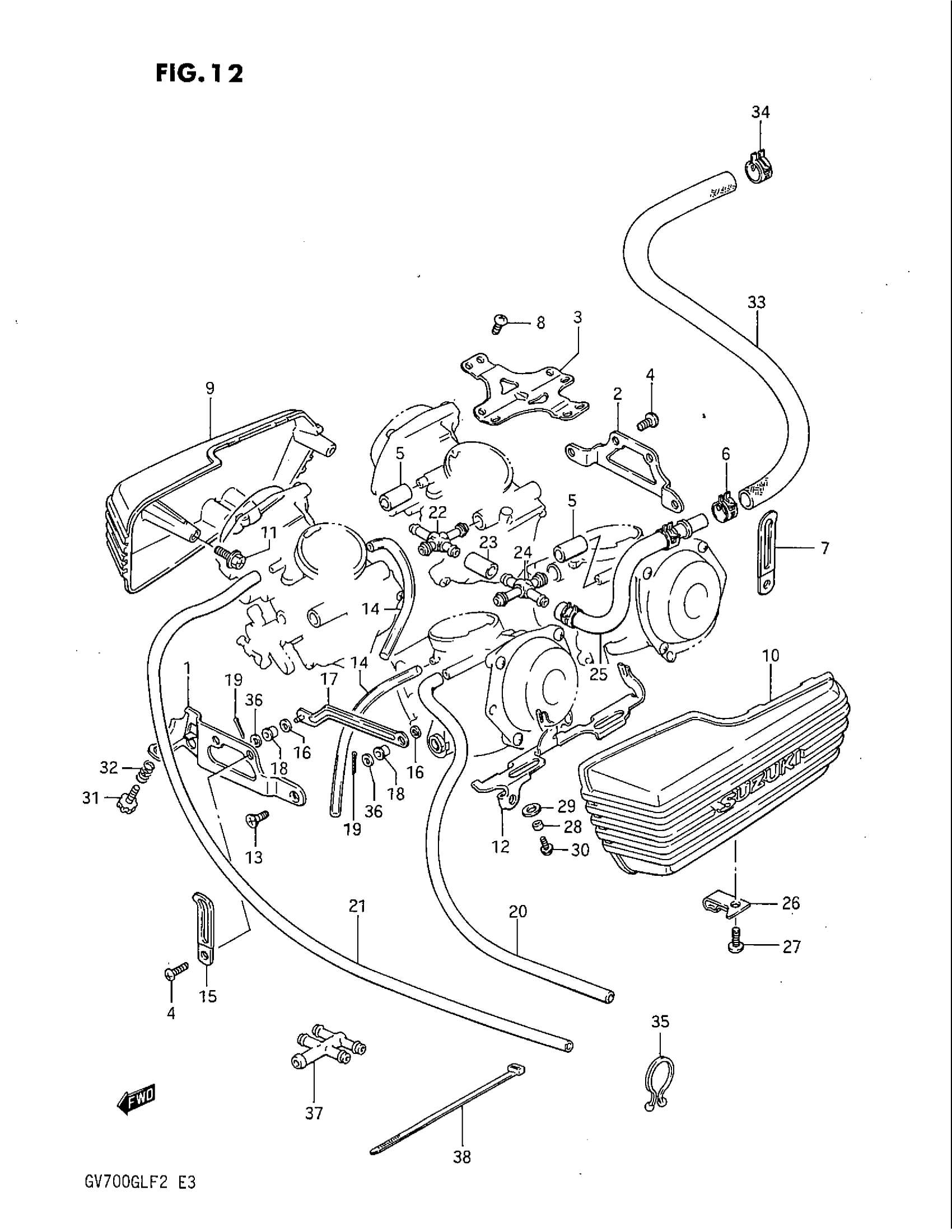

Suzuki GV700GL (1985) CARBURETOR FITTINGS Diagram

#

Description
Price

1

PLATE

13628-05A10

Unavailable

2

PLATE

13628-05A20

Unavailable

3

PLATE

13628-05A30

Unavailable

4

SCREW This part replaces 02112-06126.

02112-0612A

$1.43

5

HOSE(6.5X11.5X6 This part replaces 13683-34390.

09355-65001-600

$10.83

6

CLAMP This part replaces 13671-05A10.

09401-13417

$2.24

7

CLAMP(L:80) This part replaces 13671-05A20.

09404-06036

$1.76

8

SCREW, THROTTLE This part replaces 02112-05106.

02112-0510A

$1.43

9

COVER (R)

13444-05A10

Unavailable

10

COVER (L)

13444-05A20

Unavailable

11

BOLT, EXHAUST DRAIN This part replaces 13612-05A10.

01547-06127

$1.67

12

LEVER

13422-05A10

Unavailable

13

SCREW This part replaces 13603-05A10.

02112-06127

$1.83

14

HOSE,6.5X11.5X6 This part replaces 13683-05A60.

44421-12FR0

$11.29

15

CLAMP This part replaces 09404-06401.

09404-06039

$1.73

16

GASKET

13589-95210

Unavailable

17

PLATE

13398-05A10

Unavailable

18

RING

13557-05A10

Unavailable

19

COTTER PIN

13595-05A00

$4.08

20

HOSE | L:530->400 This part replaces 13684-05A10.

09352-50005-00B

$12.58

21

HOSE This part replaces 13684-05A10.

09352-50005-00B

$12.58

22

NIPPLE

13685-05A10

Unavailable

23

HOSE This part replaces 13683-05A10.

09351-30001-600

$3.22

24

NIPPLE

13685-05A20

Unavailable

25

HOSE

13512-05A10

Unavailable

26

PLATE

13421-05A10

Unavailable

27

SCREW This part replaces 02112-05125.

02112-0512A

$1.45

28

RING

13452-05A10

Unavailable

29

WASHER

13332-05A20

$3.80

30

SCREW This part replaces 02152-04108.

02142-0410A

$1.22

31

ADJUSTER

13267-37230

Unavailable

32

SPRING

13271-93011

$5.83

33

HOSE

09343-07134

Unavailable

34

CLAMP This part replaces 09401-12401.

09401-13417

$2.24

35

CLAMP

09408-00031

Unavailable

36

WASHER

13598-05A00

Unavailable

37

(CA) NIPPLE | CALIFORNIA ONLY

13271-05A00

Unavailable

38

(CA) CLAMP | CALIFORNIA ONLY

13692-05A20

Unavailable
