1985 Suzuki GV700GL Cushion Lever Diagram

← All diagrams

Find the part on the Cushion Lever diagram for your 1985 Suzuki GV700GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

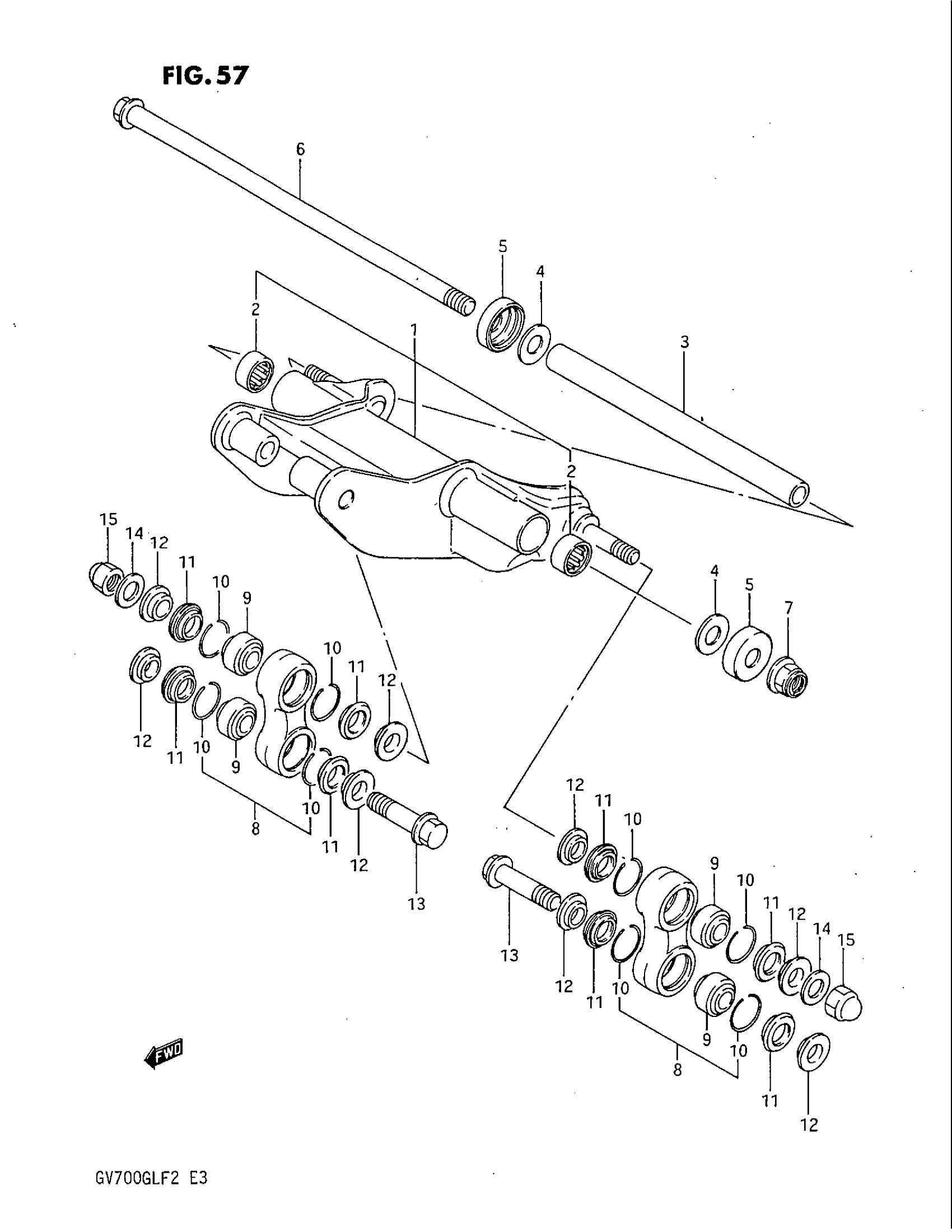

1985 Suzuki GV700GL Cushion Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET, CUSHION | Includes Item(s) 2

62600-05841

1
Out of stock

2

.BEARING (17X24X25) This part replaces 09263-17020.

09263-17053

2
Out of stock

3

SPACER

62623-05A00

1
Out of stock

4

WASHER

08211-12281

2

$2.77

In stock

5

COVER This part replaces 61262-41500.

61262-41501

2
Out of stock

6

SHAFT

62621-05A00

1
Out of stock

7

1

$5.35

In stock

8

ROD SET, CUSHION | Includes Item(s) 9 - 10

62600-05850

2
Out of stock

9

BEARING

09269-12004

4
Out of stock

10

8

$4.42

In stock

11

DUST SEAL

62647-05A00

8

$3.72

In stock

12

SPACER

62316-05A01

8

$7.70

In stock

13

BOLT, LOWER

62658-05A00

2
Out of stock

14

WASHER

08322-11125

2
Out of stock

15

NUT, UPPER

09145-12003

2
Out of stock
