1985 Suzuki GV700GL Rear Wheel Diagram

← All diagrams

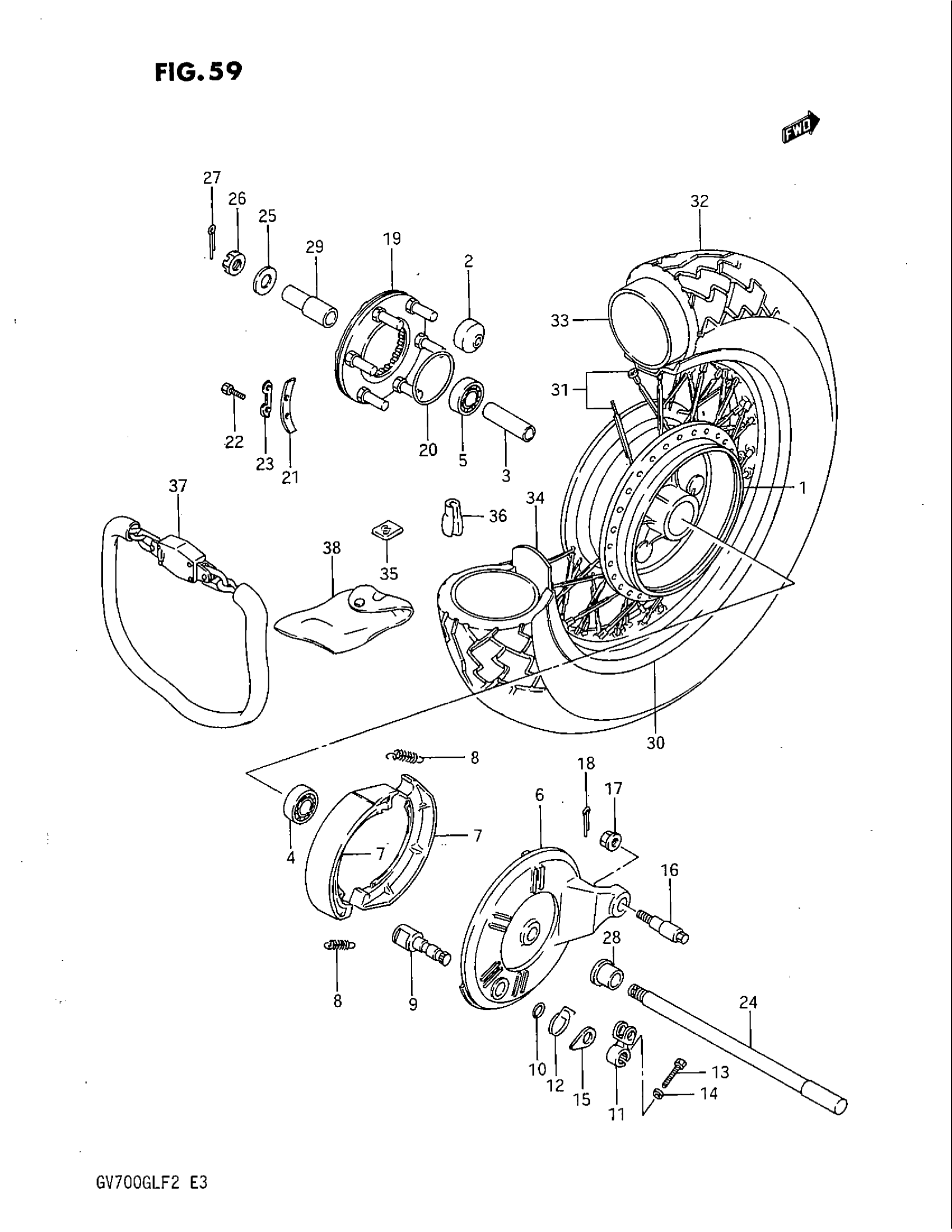

Find the part on the Rear Wheel diagram for your 1985 Suzuki GV700GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Suzuki GV700GL Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB SET, REAR WHEEL | Includes Item(s) 2 This part replaces 64100-07810.

64100-07861

1
Out of stock

2

BUSHING

09319-12029

6
Out of stock

3

SPACER

64731-37200

1
Out of stock

4

1

$17.05

In stock

5

BEARING, LH

08143-63037

1
Out of stock

6

PANEL, REAR

64210-07A00

1
Out of stock

7

SHOE SET, BRAKE This part replaces 64410-07A01.

64400-38810

2
Out of stock

8

SPRING

55420-30000

2
Out of stock

9

CAM, BRAKE

64440-07A00

1
Out of stock

10

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

1
Out of stock

11

LEVER, CAM

64451-07A00

1
Out of stock

12

SPRING

09448-32011

1
Out of stock

13

BOLT This part replaces 01107-06258.

01500-06257

1
Out of stock

14

1

$2.28

In stock

15

PLATE

64492-07A00

1
Out of stock

16

PIN

64241-07A00

1
Out of stock

17

NUT This part replaces 08316-16125.

08316-1012A

1
Out of stock

18

PIN This part replaces 04111-20308.

04111-2030A

1
Out of stock

19

JOINT, HUB DRIVEN This part replaces 64680-07A01.

64680-45113

1
Out of stock

20

O RING

09280-65003

1
Out of stock

21

WASHER

64677-45110

3
Out of stock

22

BOLT

09119-06049

6
Out of stock

23

WASHER

09169-06030

3
Out of stock

24

AXLE, REAR

64711-05A02

1
Out of stock

25

WASHER

09160-16025

1
Out of stock

26

NUT

09141-16001

1
Out of stock

27

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

28

NO DESCRIPTION AVAILABLE This part replaces 64741-07A02.

64741-07A03

1
Out of stock

29

SPACER, LH This part replaces 64772-34200.

64772-34201

1
Out of stock

30

RIM, WHEEL (3.00X16)

65311-07A01

1
Out of stock

31

SPOKE SET REAR | MODEL F This part replaces 65320-07A01.

65320-07A03

1
Out of stock

31

SPOKE SET REAR | MODEL F2 This part replaces 65320-07A02.

65320-07A03

1
Out of stock

32

TIRE, REAR (140/80-16 68H) | BS

65100-05A30

1
Out of stock

33

TUBE, INNER

65200-05A30

1
Out of stock

34

PROTECTOR This part replaces 65261-37330.

65261-37320

1
Out of stock

35

WHEEL WEIGHT This part replaces 55411-05A00.

43221-59J10

1
Out of stock

35

WHEEL WEIGHT This part replaces 55412-05A00.

43221-59J10

1
Out of stock

35

WHEEL WEIGHT This part replaces 55413-05A00.

43221-59J10

1
Out of stock

36

BALANCER, WHEEL (20G) This part replaces 55412-38A00.

55412-41F00

1
Out of stock

36

BALANCER WHEEL (30G) This part replaces 55413-38A00.

55413-41F00

1
Out of stock

37

NO DESCRIPTION AVAILABLE This part replaces 94140-15501-KEY.

94100-27821

1
Out of stock

38

BAG

94141-31301

1
Out of stock
