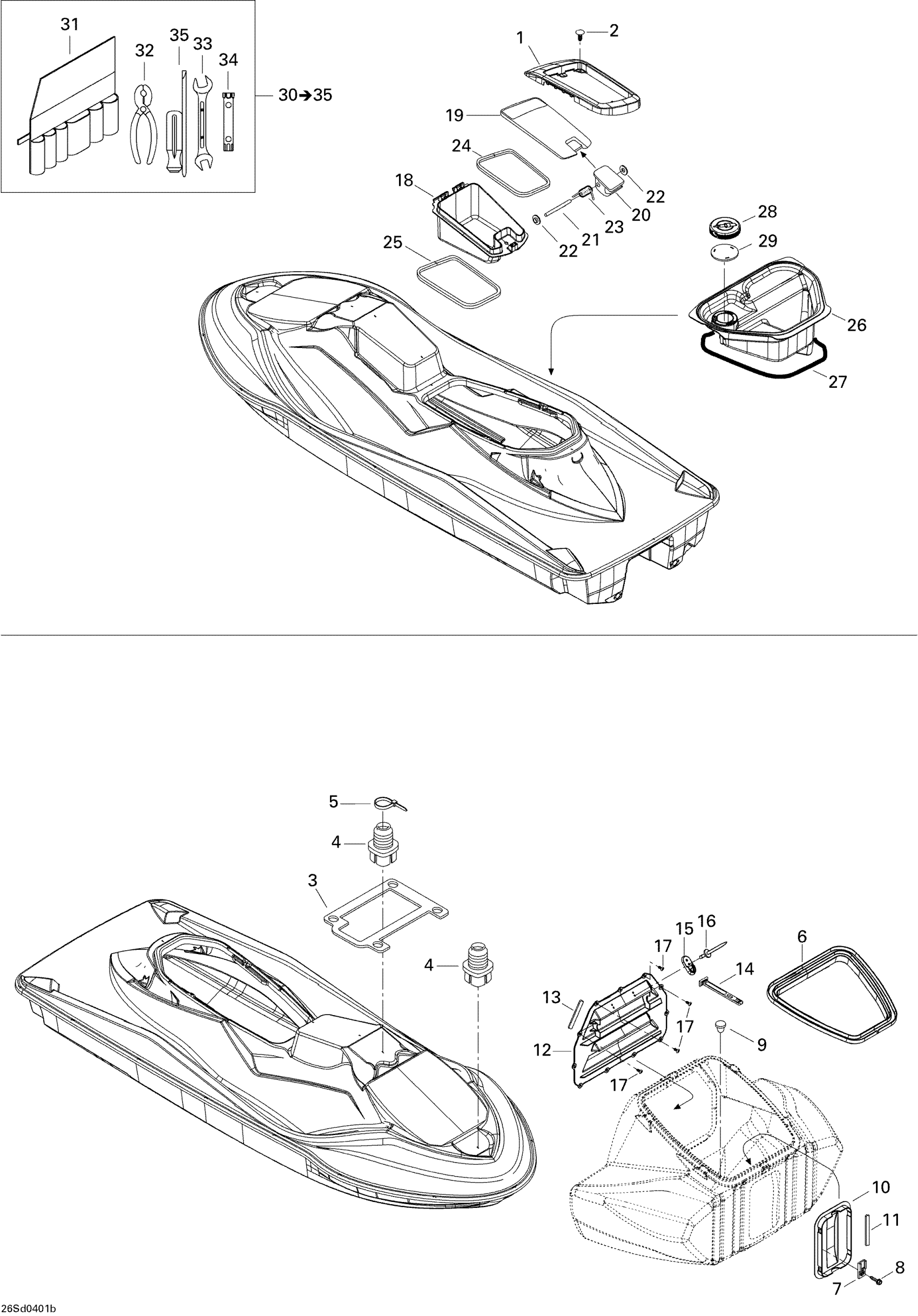

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Storage Compartment Diagram

#

Description
Price

1

Cover Trim, Black

269501031

Unavailable

2

Black, Dart

293730006

Unavailable

3

GASKET - Call your local BRP dealership

293250171

Unavailable

4

GROMMET - Call your local BRP dealership

293720042

Unavailable

5

Tie-Rap 180 mm

414115200

Unavailable

6

Cover Trim

269501234

Unavailable

7

Clip

270000141

Unavailable

8

Flange Screw K40 X 20

241642060

Unavailable

9

Black Plug

291000279

Unavailable

10

Front Door

291001744

Unavailable

11

Gasket, Neoprene 2000Mm Long

219704476

Unavailable

12

Rear Door

291001743

Unavailable

13

Gasket, Neoprene 2000Mm Long

219704476

Unavailable

14

Strap

269502417

Unavailable

15

Hook

269500521

Unavailable

16

Avdel Rivet

293150027

Unavailable

17

Tuflok Plastic Rivet

293150230

Unavailable

18

GLOVE BOX - Call your local BRP dealership

269500968

Unavailable

19

Box Door, Black | WAKE

269501202

Unavailable

20

Latch, Black

269500553

Unavailable

21

Pin

211400008

Unavailable

22

Push Nut | Not shown

211100002

Unavailable

23

Latch Spring

291000922

Unavailable

24

GASKET - Call your local BRP dealership

293250126

Unavailable

25

GASKET - Call your local BRP dealership

293250127

Unavailable

26

Rear Tray

269501036

Unavailable

27

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

28

COVER - Call your local BRP dealership

269000788

Unavailable

29

COVER SEAL - Call your local BRP dealership

269000810

Unavailable

30

Owner Tool Kit | Includes 30 to 35

295500811

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

34

Socket Wrench

529035731

Unavailable

35

DRIVER SCREW - Call your local BRP dealership

529019200

Unavailable
