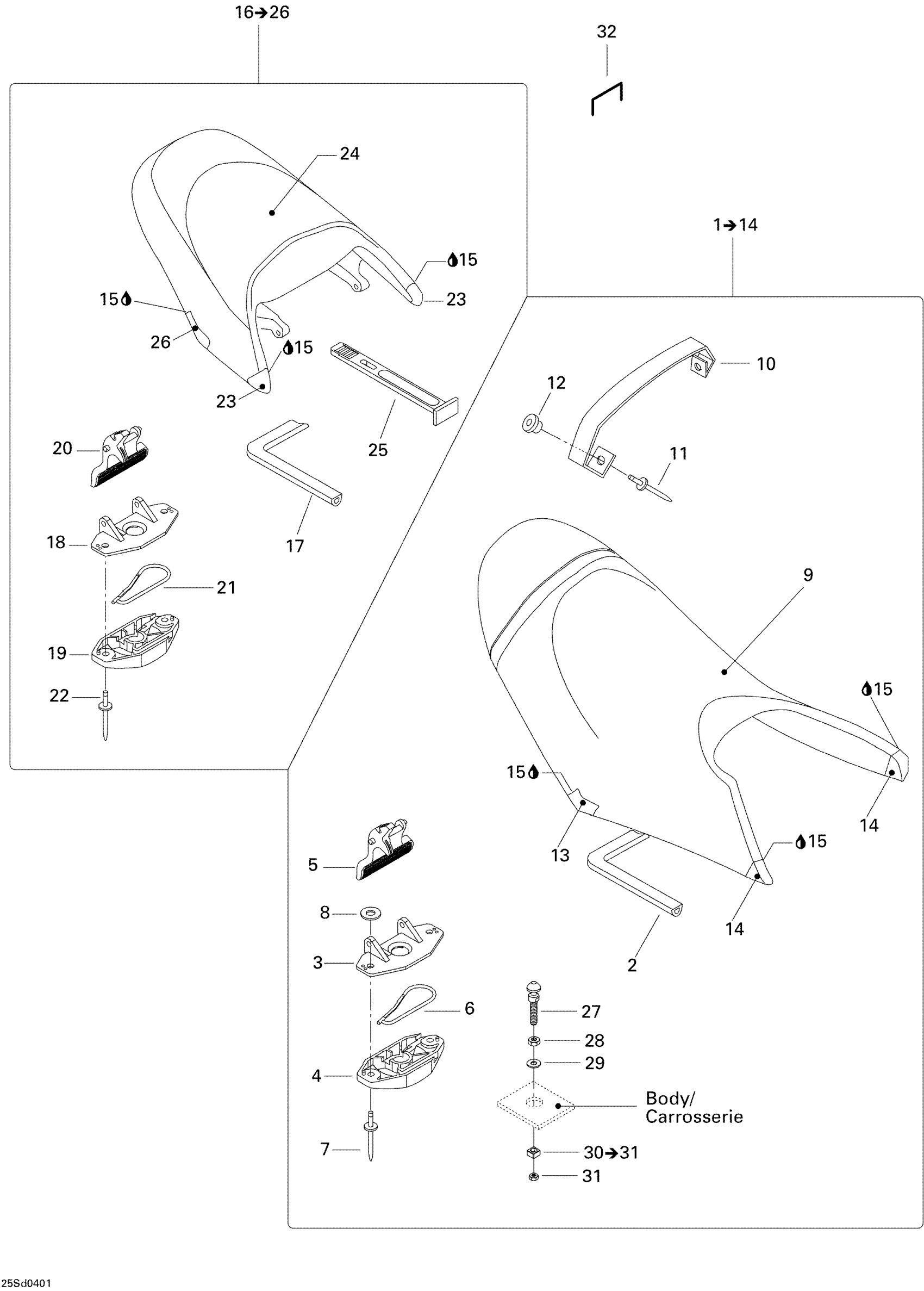

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Seat Diagram
#
1
Front Seat Ass’Y, Silver | Includes 1 to 14
269001021
Unavailable
2
Was 293200062 Seal
219704366
Unavailable
3
Latch Ass'y
269700109
Unavailable
4
Latch Ass'y
269700109
Unavailable
5
Latch Ass'y
269700109
Unavailable
6
Latch Spring
269700017
Unavailable
7
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
8
Stainless Flat Washer M6
234061600
Unavailable
9
Front Seat Cover And Foam, Silver
269001026
Unavailable
10
Seat Strap, Silver
269000962
Unavailable
11
RIVET_POP 1/4 X ,725 - Call your local BRP dealership
293150078
Unavailable
12
Grommet
293720067
Unavailable
13
RH Seat Corner, Silver
269000963
Unavailable
LH Seat Corner, Silver
269000964
Unavailable
14
RH Front Seat Corner, Silver
269000965
Unavailable
LH Front Seat Corner, Silver
269000966
Unavailable
15
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
Unavailable
16
Rear Seat Ass’Y, Silver | Includes 16 to 26
269001022
Unavailable
17
Was 293200062 Seal
219704366
Unavailable
18
Latch Ass'y
269700109
Unavailable
19
Latch Ass'y
269700109
Unavailable
20
Latch Ass'y
269700109
Unavailable
21
Latch Spring
269700017
Unavailable
22
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
23
RH Seat Corner, Silver
269000969
Unavailable
LH Seat Corner, Silver
269000970
Unavailable
24
Rear Seat Cover And Foam, Silver
269001027
Unavailable
25
Strap
269502417
Unavailable
26
SEAT CORNER, SILVER - Call your local BRP dealership
269000971
Unavailable
27
SEAT STUD - Call your local BRP dealership
291000945
Unavailable
28
Hex. Jam Nut M10
232100600
Unavailable
29
Flat Washer 10 mm, Stainless
234002600
Unavailable
30
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
31
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
32
Staple
293730005
Unavailable
