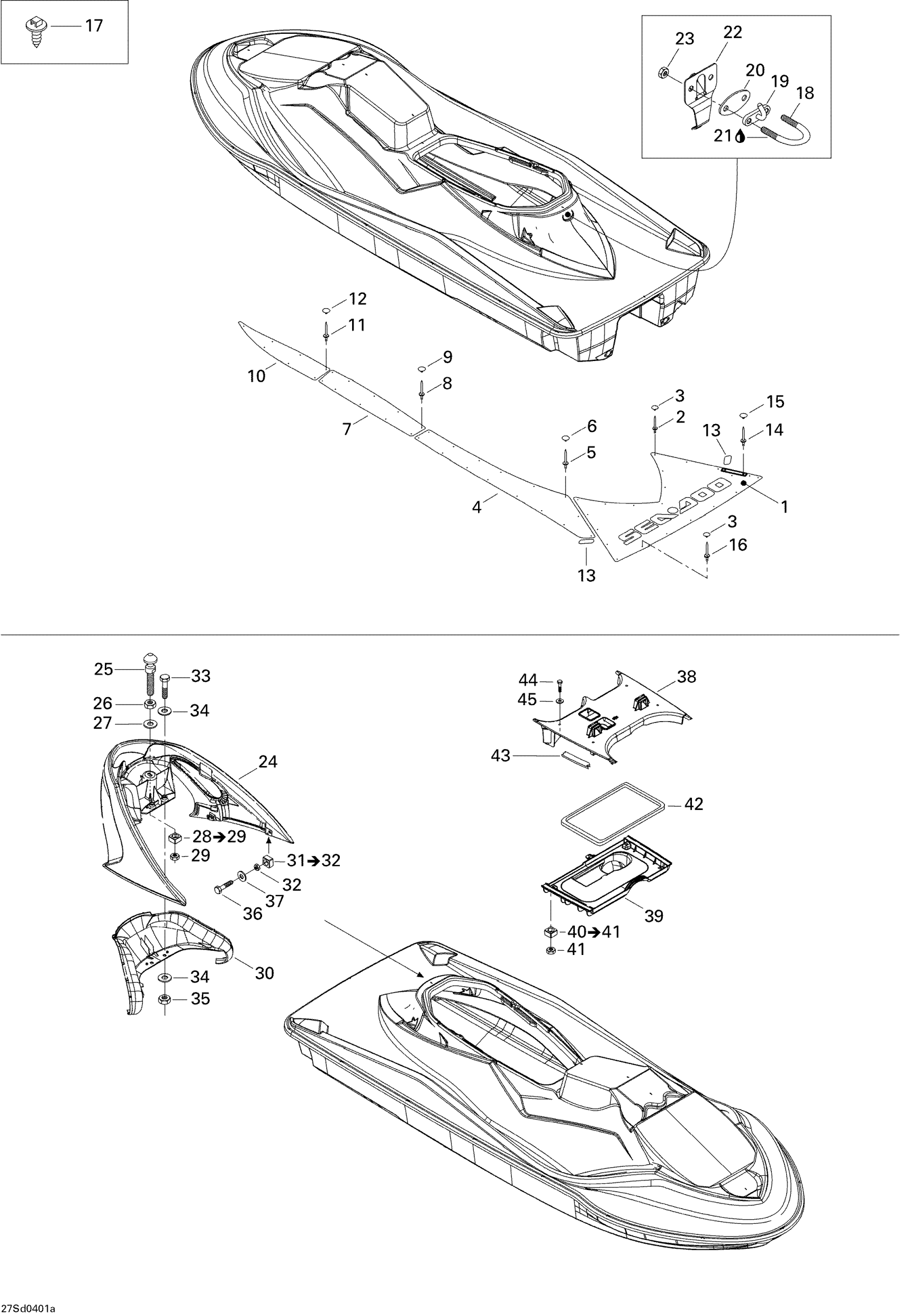

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Body 1 Diagram
#
1
Rear Carpet, Black | STD
291001905
Unavailable
2
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
3
Black, Snap Cap
293000014
Unavailable
4
RH Center Rear Carpet, Black
291001906
Unavailable
LH Center Rear Carpet, Black
291001907
Unavailable
5
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
6
Black, Snap Cap
293000014
Unavailable
7
RH Center Front Carpet, Black
291001908
Unavailable
LH Center Front Carpet, Black
291001909
Unavailable
8
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
9
Black, Snap Cap
293000014
Unavailable
10
RH Front Carpet, Black
291001910
Unavailable
LH Front Carpet, Black
291001911
Unavailable
11
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
12
Black, Snap Cap
293000014
Unavailable
13
RH ANTI-SKID - Call your local BRP dealership
291001758
Unavailable
LH Anti-Skid
291001759
Unavailable
14
Rivet 1/8"
293150016
Unavailable
15
Black, Snap Cap
293000014
Unavailable
16
Pop Rivet 1/8”
293150015
Unavailable
17
Mount Dart
293730040
Unavailable
18
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
19
Hook | Package LTD
291002351
Unavailable
20
Black, Finition Plate
291001386
Unavailable
21
Silicone Sealant 51388, 300 ml
296000309
Unavailable
22
Retainer Plate
291001747
Unavailable
23
Hex. Elastic Nut M8
232581600
Unavailable
24
GRAB HANDLE, BLACK - Call your local BRP dealership
269000722
Unavailable
25
SEAT STUD - Call your local BRP dealership
291000945
Unavailable
26
Hex. Jam Nut M10
232100600
Unavailable
27
Flat Washer 10 mm, Stainless
234002600
Unavailable
28
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
29
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
30
HANDLE COVER, BLACK - Call your local BRP dealership
269000749
Unavailable
31
M6 Nut Housing Ass'y | Includes 7r to 7r2
269500725
Unavailable
32
Hex. Elastic Stop Nut M6
232561600
Unavailable
33
Hex. Screw M8 X 45
207084560
Unavailable
34
Stainless, Flat Washer 8 mm
234081600
Unavailable
35
Hex. Elastic Nut M8
232581600
Unavailable
36
Hex. Screw M6 X 25
207162560
Unavailable
37
Flat Washer M6, Stainless
234062600
Unavailable
38
Upper Bridge, Black
291001602
Unavailable
39
Lower Bridge, Black
291001599
Unavailable
40
Housing Nut M6 | Included 550f to 550f2
269502408
Unavailable
41
Elastic Stop Nut M6, Brass
232561200
Unavailable
42
GASKET - Call your local BRP dealership
293200090
Unavailable
43
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
44
Hex. Screw M6 X 75
207167560
Unavailable
45
Flat Washer M6, Stainless
234062600
Unavailable
