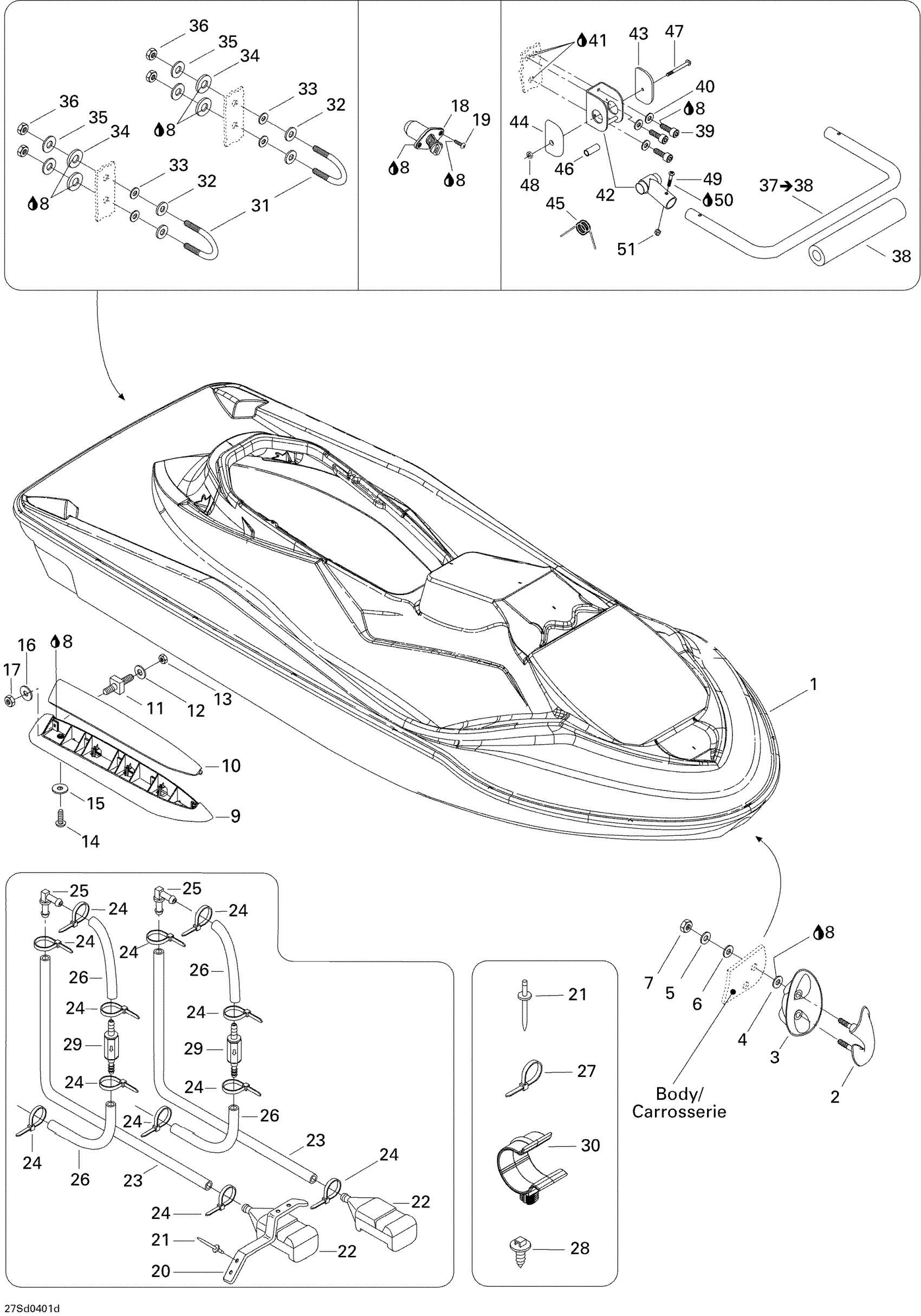

Sea-doo GTX 4-TEC, Special Supercharged, 2004 Hull Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Eye-Bow (Black) This part replaces 292000708.
292000452
Unavailable
Bow-eye, Grey
292000870
Unavailable
3
Shell, Grey
292000872
Unavailable
4
Stainless, Flat Washer 8 mm
234081600
Unavailable
5
Flat Washer 8 mm, Stainless
250200175
Unavailable
6
Rubber Washer
293830037
Unavailable
7
Hex. Elastic Nut M8
232581600
Unavailable
8
Silicone Sealant 51388, 300 ml
296000309
Unavailable
9
RH SPONSON - Call your local BRP dealership
292000818
Unavailable
LH SPONSON - Call your local BRP dealership
292000816
Unavailable
10
RH SPONSON COVER - Call your local BRP dealership
292000815
Unavailable
LH SPONSON COVER - Call your local BRP dealership
292000817
Unavailable
11
THREADED INSERT - Call your local BRP dealership
293450227
Unavailable
12
Flat Washer M6, Stainless
234062600
Unavailable
13
Hex. Nut M6
232061600
Unavailable
14
Phillips Screw 10-14 X 7/8”
211000037
Unavailable
15
Flat Washer M5, Stainless
234051600
Unavailable
16
Flat Washer M6, Stainless
234062600
Unavailable
17
Hex. Nut M6
232061600
Unavailable
18
DRAIN ASSY - Call your local BRP dealership
292000685
Unavailable
19
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
20
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
21
Avdel Rivet 3/16"
293150037
Unavailable
22
Bailer Screen
292000688
Unavailable
23
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
24
Tie Wrap 94 mm | 4X4
293750001
Unavailable
25
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
26
Polyurethane Hose, 8 mm This part replaces 204550051.
415080700
Unavailable
27
Tie-Rap 180 mm
414115200
Unavailable
28
Mount Dart
293730040
Unavailable
29
Check Valve
276000093
Unavailable
30
Retainer
275500526
Unavailable
31
U-Clamp
292000933
Unavailable
32
Flat Washer M8.5 x 18
293050001
Unavailable
33
Flat Washer 8 mm, Nylon
234081100
Unavailable
34
Rubber Washer
293830037
Unavailable
35
Flat Washer 8 mm, Stainless
250200175
Unavailable
36
Hex. Elastic Nut M8
232581600
Unavailable
37
Stair Tube Ass’Y | Includes items 42 to 43
292000778
Unavailable
38
PROTECTIVE SLEEVE - Call your local BRP dealership
292000781
Unavailable
39
Socket Head Screw M6 X 25, Scotch Grip
250000076
Unavailable
40
Stainless Flat Washer M6
234061600
Unavailable
41
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
Unavailable
42
Support Ass’Y
292000539
Unavailable
43
RH Support Cap
292000540
Unavailable
44
LH Support Cap
292000548
Unavailable
45
RECALL SPRING - Call your local BRP dealership
292000541
Unavailable
46
Plastic Tube
292000542
Unavailable
47
Phillips Screw
211000186
Unavailable
48
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
49
Socket Head Screw M6 X 35
205063560
Unavailable
50
Loctite 243, 10 ml
293800060
Unavailable
51
Nut M6 | Model-Australie, Brezil, Europe
232361600
Unavailable
