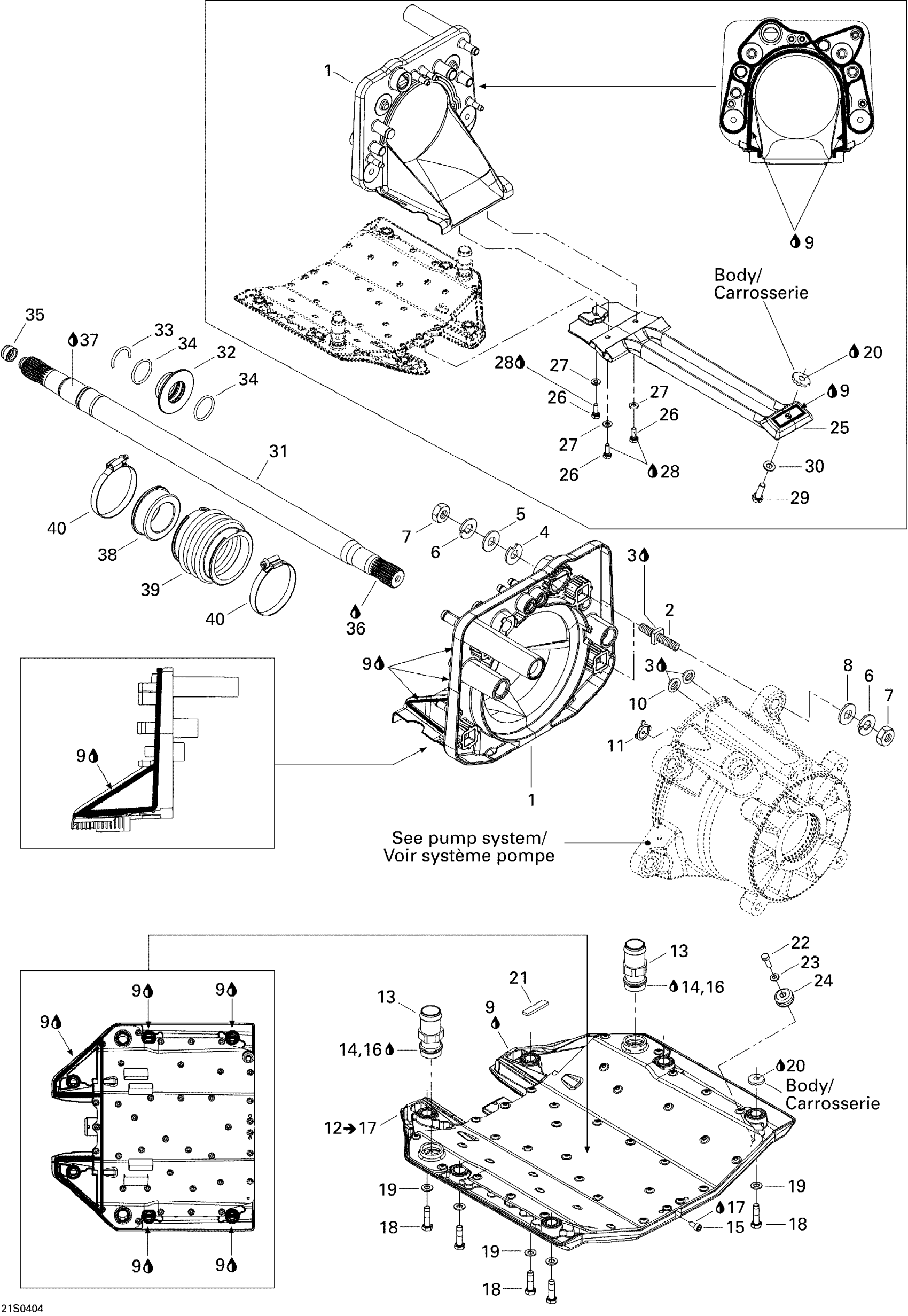

Sea-doo GTX 4-TEC, LTD Supercharged, 2004 Propulsion Diagram
#
1
Pump Support
271001545
Unavailable
2
Square Stud
250300022
Unavailable
3
Était/Was 293800038 Loctite 518, 50 ml
219704456
Unavailable
4
Shim 0.3 mm
272000053
Unavailable
5
Flat Washer 10 mm, Stainless
234002600
Unavailable
6
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
7
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
8
Flat Washer 10 mm, Stainless
234001600
Unavailable
9
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
Unavailable
10
Watertight Seal
293250084
Unavailable
11
Reducer
291001888
Unavailable
12
Riding Plate | Includes 11 to 16
271001491
Unavailable
13
STRAIGHT PLASTIC FITTING - Call your local BRP dealership
293710087
Unavailable
14
Was 293800041 Loctite Primer 7649
219704458
Unavailable
15
Socket Drain Plug M6 X 12
250500005
Unavailable
16
Était Was 293800050 Loctite 577, 250 ml
219704459
Unavailable
17
Was 293800013 Loctite 56765
219704454
Unavailable
18
Hex. Screw M8 X 30, Scotch Grip
207383060
Unavailable
19
Stainless, Flat Washer 8 mm
234081600
Unavailable
20
Silicone Sealant 51388, 300 ml
296000309
Unavailable
21
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
22
Hex. Screw M6 X 20, Scotch Grip
207362060
Unavailable
23
Stainless Flat Washer M6
234061600
Unavailable
24
Anode Zinc
271001813
Unavailable
25
PUMP GRATE, BLACK - Call your local BRP dealership
271001459
Unavailable
26
Hex. Screw M6 X 16
207161660
Unavailable
27
Stainless Flat Washer M6
234061600
Unavailable
28
Loctite 271, 10 ml
293800005
Unavailable
29
Hex. Screw M8 X 30, Scotch Grip
207383060
Unavailable
30
Stainless, Flat Washer 8 mm
234081600
Unavailable
31
Drive Shaft
271001449
Unavailable
32
Carbon Ring Kit This part replaces 272000177.
295501200
Unavailable
33
C-Clip
271001575
Unavailable
34
O-Ring
293300044
Unavailable
35
Drive Shaft Plug
272000173
Unavailable
36
Synthetic Grease, 400 G
293550010
Unavailable
37
Engine Oil, Mineral, Api Sj Sae 10W40
293600023
Unavailable
38
Carbon Ring Kit This part replaces 272000177.
295501200
Unavailable
39
Bellows
272000183
Unavailable
40
Norma Clamp
293650077
Unavailable
