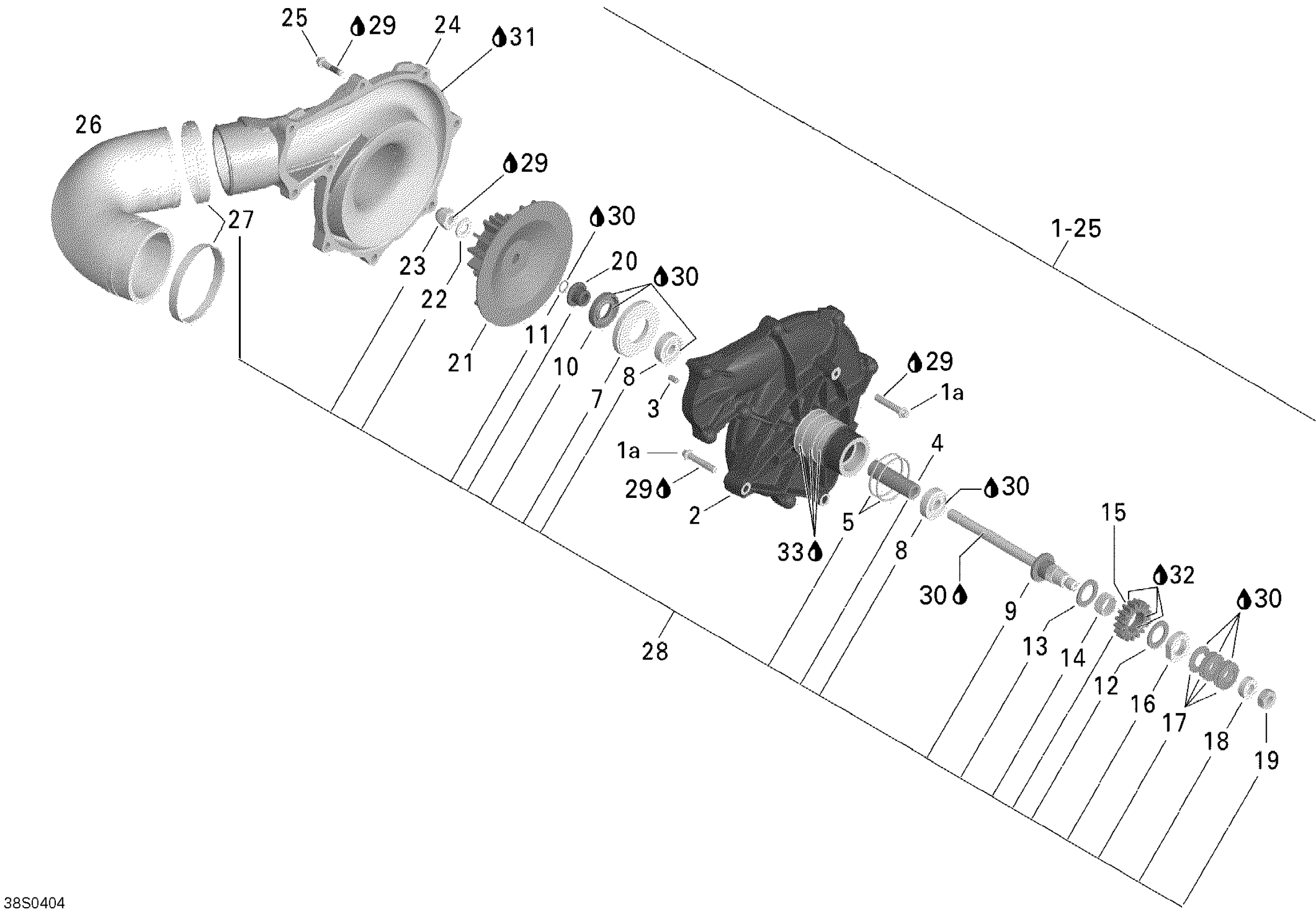

Sea-doo GTX 4-TEC, LTD Supercharged, 2004 Supercharger Diagram

#

Description
Price

1

Supercharger Ass'y | Includes 1 to 26 This part replaces 420881936.

420881995

$1,600.72

1a

Torx Flange Screw M6 X 35

420641258

$2.78

2

Compressor Base Plate

420867180

$228.12

3

Drive Pin 5 X 10

420929650

$1.34

4

Not Available As Spare Part - Friction Washer

Unavailable

5

O-Ring | Included in gasket kit

420650270

$5.99

7

THRUST WASHER - Call your local BRP dealership

420926393

Unavailable

8

Bearing Ball This part replaces 420832710.

420832713

$31.82

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Oil Seal

420950940

$24.67

11

O-Ring

420950950

$0.83

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Needle Pin This part replaces 420632430.

420632435

$28.57

15

Not Available As Spare Part - Friction Washer

Unavailable

16

LOCK WASHER - Call your local BRP dealership

420926377

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

HEX. NUT - Call your local BRP dealership

420942950

Unavailable

20

STEP COLLAR - Call your local BRP dealership

420947012

Unavailable

21

Compressor Impeller

420867191

$678.33

22

SHIM - Call your local BRP dealership

420927413

Unavailable

23

CAP NUT - Call your local BRP dealership

420842833

Unavailable

24

Compressor Housing

420867154

$87.72

25

Torx Flange Screw M6 X 25

420641238

$2.68

26

FORMED HOSE - Call your local BRP dealership

420660151

Unavailable

27

Gear Clamp

420851703

$16.87

28

Supercharger Kit Bv This part replaces 420881940.

420881151

$450.42

29

Loctite 243, 10 ml

293800060

$20.77

30

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

31

Loctite 5910, 300 ml

293800081

$57.99

32

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72

33

Grease, Super Lube

293550030

$24.67
