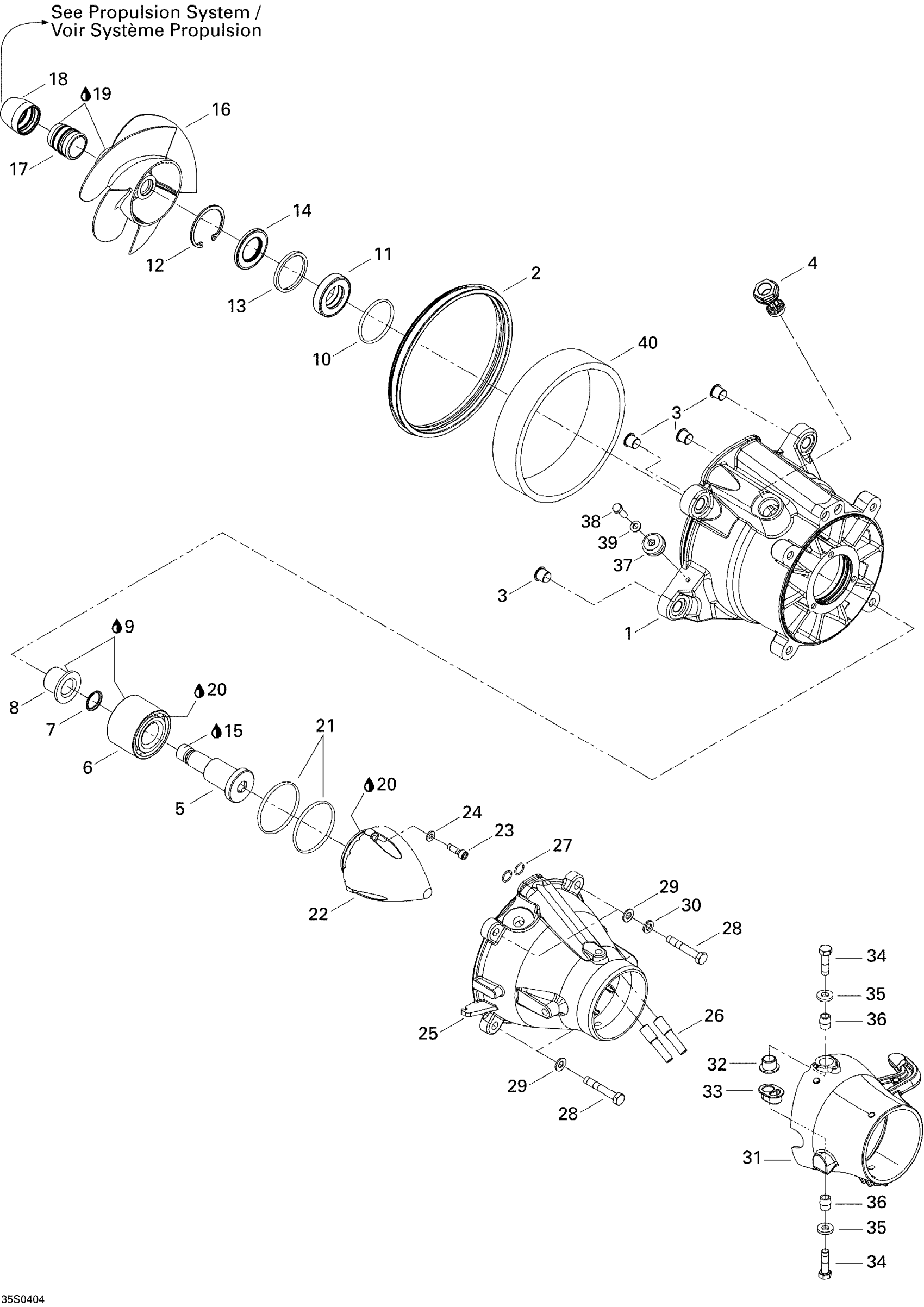

Sea-doo GTX 4-TEC, LTD Supercharged, 2004 Pump Diagram
#
1
Impeller Housing Ass'y
267000044
Unavailable
2
Neoprene Seal
293200087
Unavailable
3
Bushing
267000093
Unavailable
4
Plug | Includes 370z to 370z1
267000282
Unavailable
5
Impeller Shaft
267000054
Unavailable
6
Angled Bearing This part replaces 267000030.
267000900
Unavailable
7
O-Ring
505070315
Unavailable
8
Shaft Sleeve
267000318
Unavailable
9
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
10
O-Ring
293300090
Unavailable
11
Seal
271002071
Unavailable
12
Circlip
293370038
Unavailable
13
Spacer
271001393
Unavailable
14
Oil Seal
293200089
Unavailable
15
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
16
Impeller Ass'y This part replaces 267000119.
267000712
Unavailable
17
IMPELLER BOOT - Call your local BRP dealership
271001152
Unavailable
18
IMPELLER RING - Call your local BRP dealership
271001153
Unavailable
19
Synthetic Grease, 400 G
293550010
Unavailable
20
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
21
O-Ring
293300086
Unavailable
22
Impeller Cover
267000262
Unavailable
23
Socket Head Screw M6 X 20, Scotch Grip
205562060
Unavailable
24
Stainless Flat Washer M6
234061600
Unavailable
25
VENTURI, BLACK - Call your local BRP dealership
267000065
Unavailable
26
Siphon Tube
271001133
Unavailable
27
O-Ring
293300013
Unavailable
28
HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership
207384060
Unavailable
29
Stainless, Flat Washer 8 mm
234081600
Unavailable
30
Lock Washer 8 mm, Stainless
234181601
Unavailable
31
Steering Nozzle, Black
271001469
Unavailable
32
Venturi Bushing
293900001
Unavailable
33
Plastic Bushing
293900010
Unavailable
34
Hex. Screw M8 X 30, Scotch Grip
207383060
Unavailable
35
Flat Washer M8.5 x 18
293050001
Unavailable
36
Sleeve
271001816
Unavailable
37
Anode Zinc
271001813
Unavailable
38
Hex. Screw M6 X 20, Scotch Grip
207362060
Unavailable
39
Stainless Flat Washer M6
234061600
Unavailable
40
Wear Ring
267000419
Unavailable
