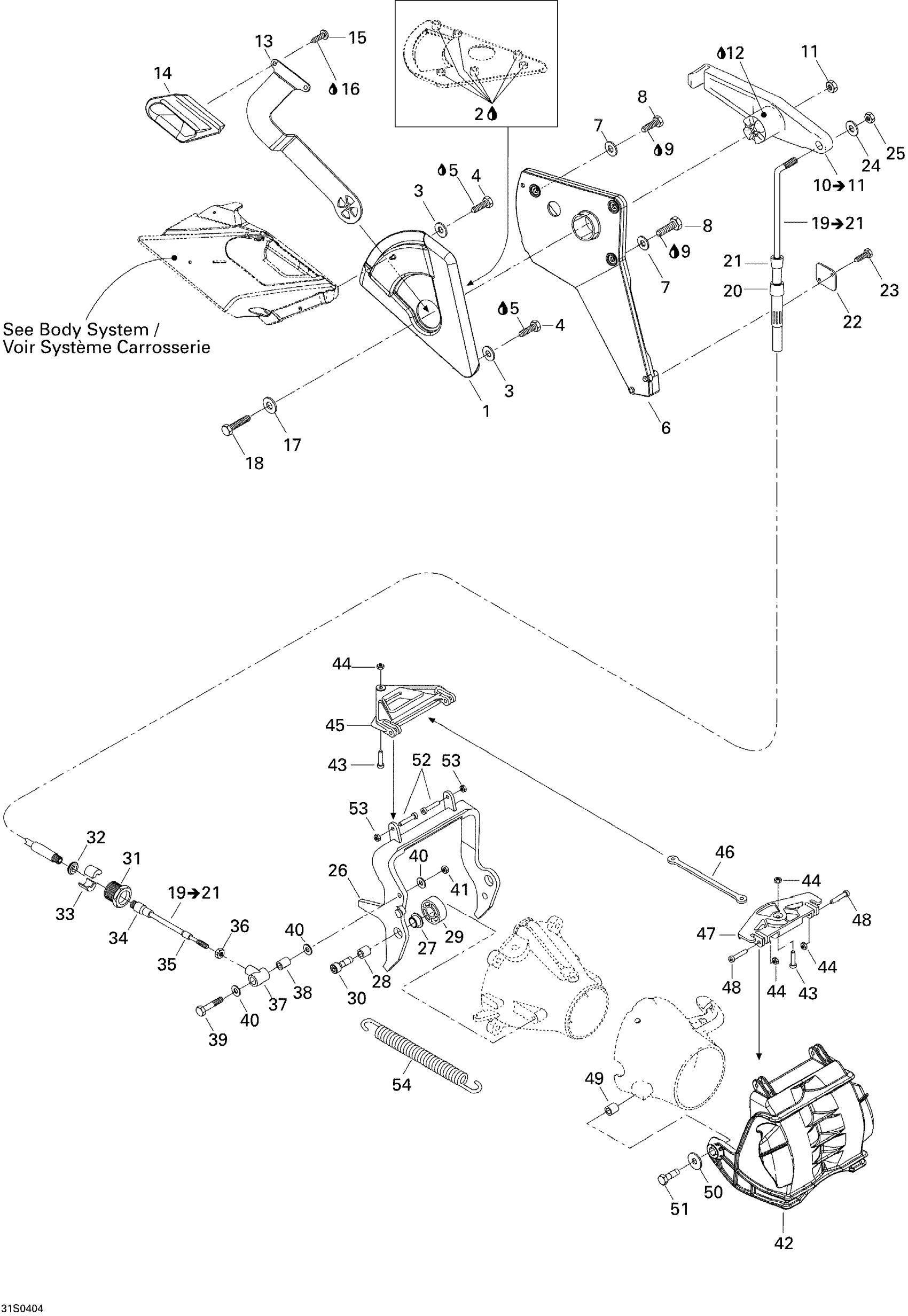

Sea-doo GTX 4-TEC, LTD Supercharged, 2004 Reverse Diagram
#
1
REVERSE HANDLE HOUSING - Call your local BRP dealership
268000009
Unavailable
2
Silicone Sealant 51388, 300 ml
296000309
Unavailable
3
Flat Washer M6.6 X 22
250200022
Unavailable
4
Hex. Cap Screw M6 X 12
207161260
Unavailable
5
Loctite 243, 10 ml
293800060
Unavailable
6
REVERSE CABLE SUPPORT - Call your local BRP dealership
268000010
Unavailable
7
Flat Washer M6, Stainless
234062600
Unavailable
8
Hex. Screw M6 X 16
207161660
Unavailable
9
Loctite 243, 10 ml
293800060
Unavailable
10
Lever Ass.
271000986
Unavailable
11
Hex. Elastic Stop Nut M6
232561600
Unavailable
12
Synthetic Grease, 400 G
293550010
Unavailable
13
REVERSE HANDLE LEVER - Call your local BRP dealership | GTS PRO
268000022
Unavailable
14
REVERSE HANDLE, BLACK - Call your local BRP dealership
271001157
Unavailable
Reverse Handle | STD
271001354
Unavailable
15
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership
208451260
Unavailable
16
Loctite 243, 10 ml
293800060
Unavailable
17
Stainless Flat Washer M6
234061600
Unavailable
18
Hex. Screw M6 X 16
207161660
Unavailable
19
Reverse Cable | Includes 16 to 18
268000030
Unavailable
20
Boot, Large
277000473
Unavailable
21
Boot, Small
277000466
Unavailable
22
BRACKET - Call your local BRP dealership
277001058
Unavailable
23
Hex. Flange Screw M5 X 30
207153060
Unavailable
24
Flat Washer M5, Stainless
234051600
Unavailable
25
HEX. ELASTIC STOP NUT - Call your local BRP dealership
212000006
Unavailable
26
ARM BLACK - Call your local BRP dealership
271001012
Unavailable
27
Venturi Bushing
271000321
Unavailable
28
Spacer
271001039
Unavailable
29
BUSHING - Call your local BRP dealership | GTS PRO
293900038
Unavailable
30
PIVOT SCREW M8 X 25 - Call your local BRP dealership
250000026
Unavailable
31
Steering Cable Lock This part replaces 277000784.
277001729
Unavailable
32
RUBBER WASHER - Call your local BRP dealership
211100009
Unavailable
33
Half Ring
277000055
Unavailable
34
Boot, Large
277000473
Unavailable
35
Boot, Small
277000466
Unavailable
36
Hex. Nut
212100005
Unavailable
37
Joint
277001204
Unavailable
38
Spacer
271001020
Unavailable
39
Hex. Screw M6 X 35
207063560
Unavailable
40
Flat Washer M6, Stainless
234062600
Unavailable
41
Hex. Elastic Stop Nut M6
232561600
Unavailable
42
Gate Reverse
271001317
Unavailable
43
PIVOT SCREW - Call your local BRP dealership
250000018
Unavailable
44
Hex. Elastic Nut M5 | X
232551600
Unavailable
45
TRIANGLE - Call your local BRP dealership
268000013
Unavailable
46
CONNECTOR ROD - Call your local BRP dealership
271001018
Unavailable
47
ROD PIVOT - Call your local BRP dealership
268000014
Unavailable
48
SCREW PIVOT - Call your local BRP dealership
250000023
Unavailable
49
Spacer
277001066
Unavailable
50
Flat Washer 8 mm, Stainless
234082600
Unavailable
51
Hex. Screw M8 X 30, Scotch Grip
207383060
Unavailable
52
PIVOT SCREW - Call your local BRP dealership
250000018
Unavailable
53
Hex. Elastic Nut M5 | X
232551600
Unavailable
54
Spring
271001328
Unavailable
