1973 Yamaha Gtmx (GTMX) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1973 Yamaha Gtmx (GTMX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

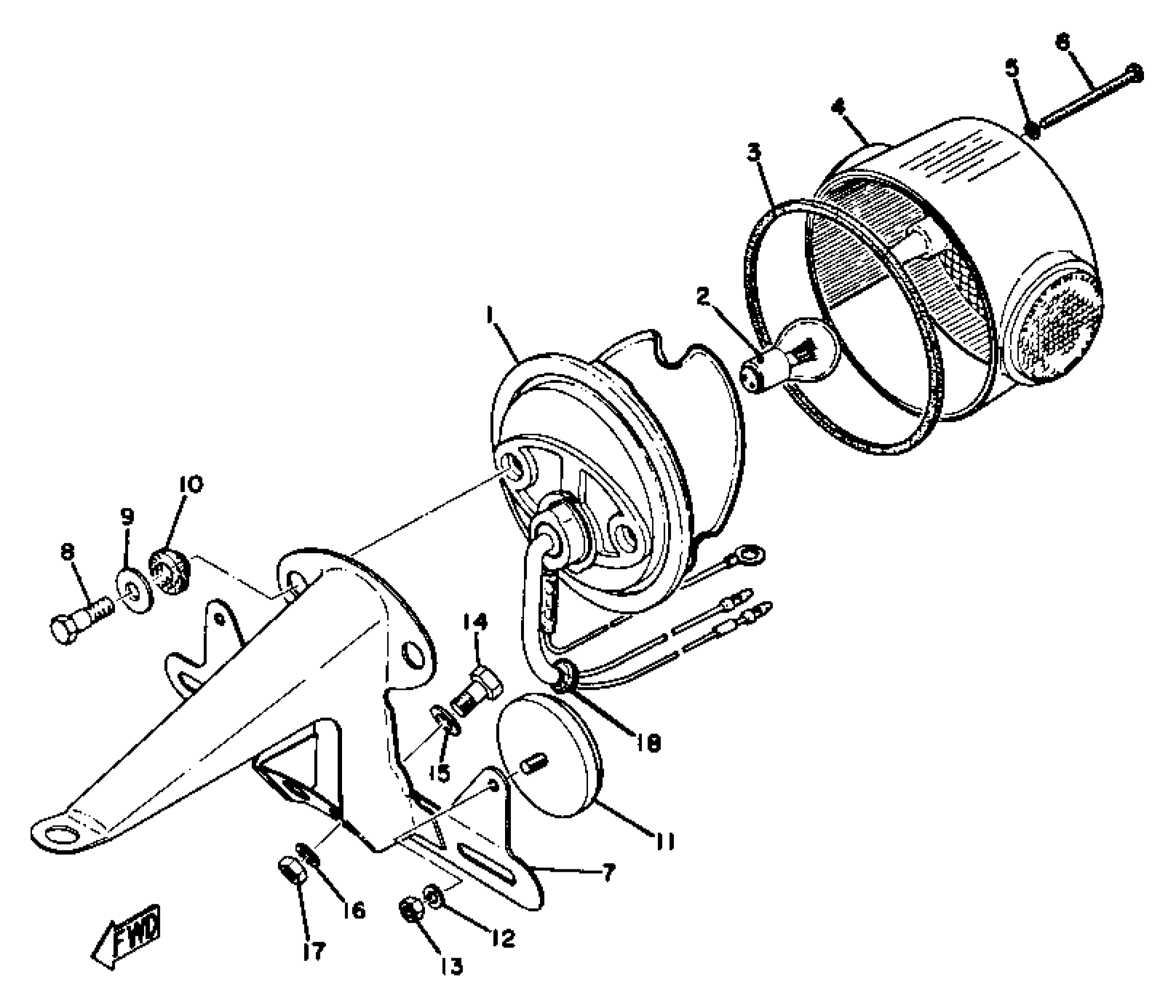

1973 Yamaha Gtmx (GTMX) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

(368-84510-61-00)

1
Out of stock

1

BASE, TAILLIGHT

(368-84511-60-00)

1
Out of stock

2

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

1
Out of stock

3

. GASKET, LENS

275-84523-60-00

1
Out of stock

4

. LENS, TAIL LIGHT

341-84721-60-00

1
Out of stock

5

. WASHER

341-84722-60-00

1
Out of stock

6

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

7

BRACKET, LICENCE

(338-84551-60-35)

1
Out of stock

8

SCREW

(479-84526-00-00)

1
Out of stock

9

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

10

. DAMPER

275-84527-60-00

1
Out of stock

11

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

BOLT (661)

97013-06012-00

1

$4.71

In stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

GROMMET 152845180000

90480-12013-00

—
Out of stock
