1973 Yamaha Gtmx (GTMX) Handle - Wire Diagram

← All diagrams

Find the part on the Handle - Wire diagram for your 1973 Yamaha Gtmx (GTMX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

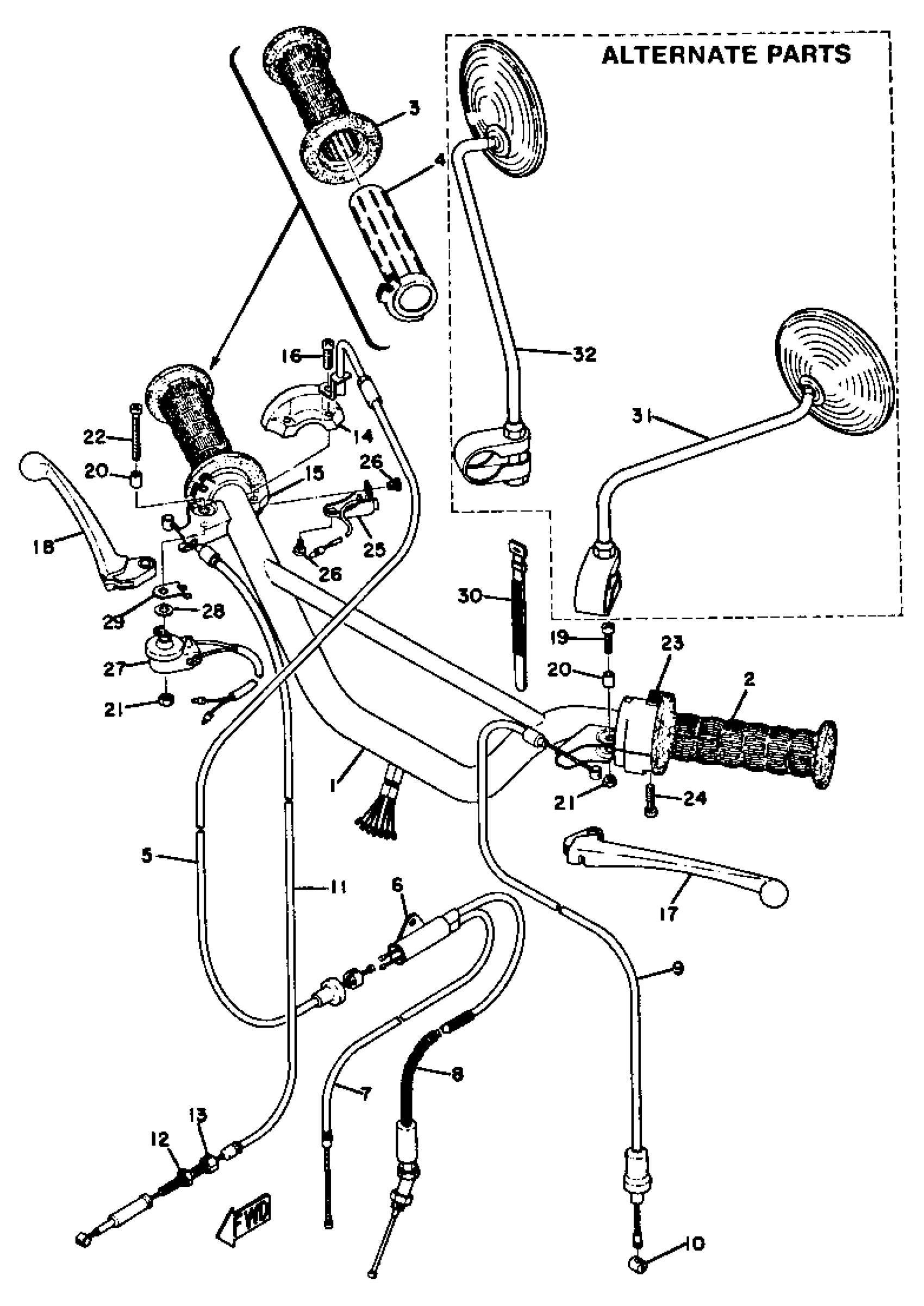

1973 Yamaha Gtmx (GTMX) Handle - Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

367-26111-03-00

1
Out of stock

2

GRIP LH

214-26241-00-00

1
Out of stock

3

GRIP (R.H)

1A0-26242-01-00

1
Out of stock

4

TUBE, GUIDE

214-26243-00-00

1

$39.75

In stock

5

WIRE, THROTTLE 1

374-26311-00-00

1
Out of stock

6

CONNECTER, CABLE

4U1-26261-00-00

1

$33.76

In stock

7

CABLE,THROTTLE 2

336-26312-00-00

1
Out of stock

8

CABLE, PUMP

367-26321-02-00

1
Out of stock

9

WIRE, CLUTCH

367-26335-02-00

1

$51.42

In stock

10

END, WIRE

164-26363-00-00

1
Out of stock

11

CABLE, BRAKE

367-26341-01-00

1
Out of stock

12

NUT (109-26344-00)

90179-06143-00

1

$6.68

In stock

13

BOLT (109-26345-00)

90123-06011-00

1

$14.12

In stock

14

CAP, GRIP UPPER

214-26281-01-00

1
Out of stock

15

CAP, GRIP LOWER

248-26282-00-00

1
Out of stock

16

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

17

LEVER (L.H)

137-83912-02-38

—

$23.55

In stock

18

LEVER (R.H)

2N3-83922-00-00

—

$26.28

In stock

19

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

19

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

20

COLLAR 288839130000

90387-05383-00

—

$7.43

In stock

21

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

22

SCREW,PAN HEAD

90157-05055-00

1
Out of stock

23

SWITCH, HANDLE 3

(368-83973-00-00)

1
Out of stock

24

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

25

SWITCH, HANDLE 1

261-83976-00-00

1
Out of stock

26

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

27

FRONT STOP SWITCH ASSY

232-83980-30-00

—

$68.85

In stock

28

WASHER PLATE 338839440000

90201-05027-00

—
Out of stock

29

BRKT, FRT STOP SWCH

(338-83983-00-00)

1
Out of stock

30

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

30

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

30

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

31

MIRROR ASSEMBLY LH

253-26290-10-00

1
Out of stock

32

MIRROR ASY

253-26290-00-00

1
Out of stock
