1973 Yamaha Gtmx (GTMX) Headlight - Speedometer Diagram

← All diagrams

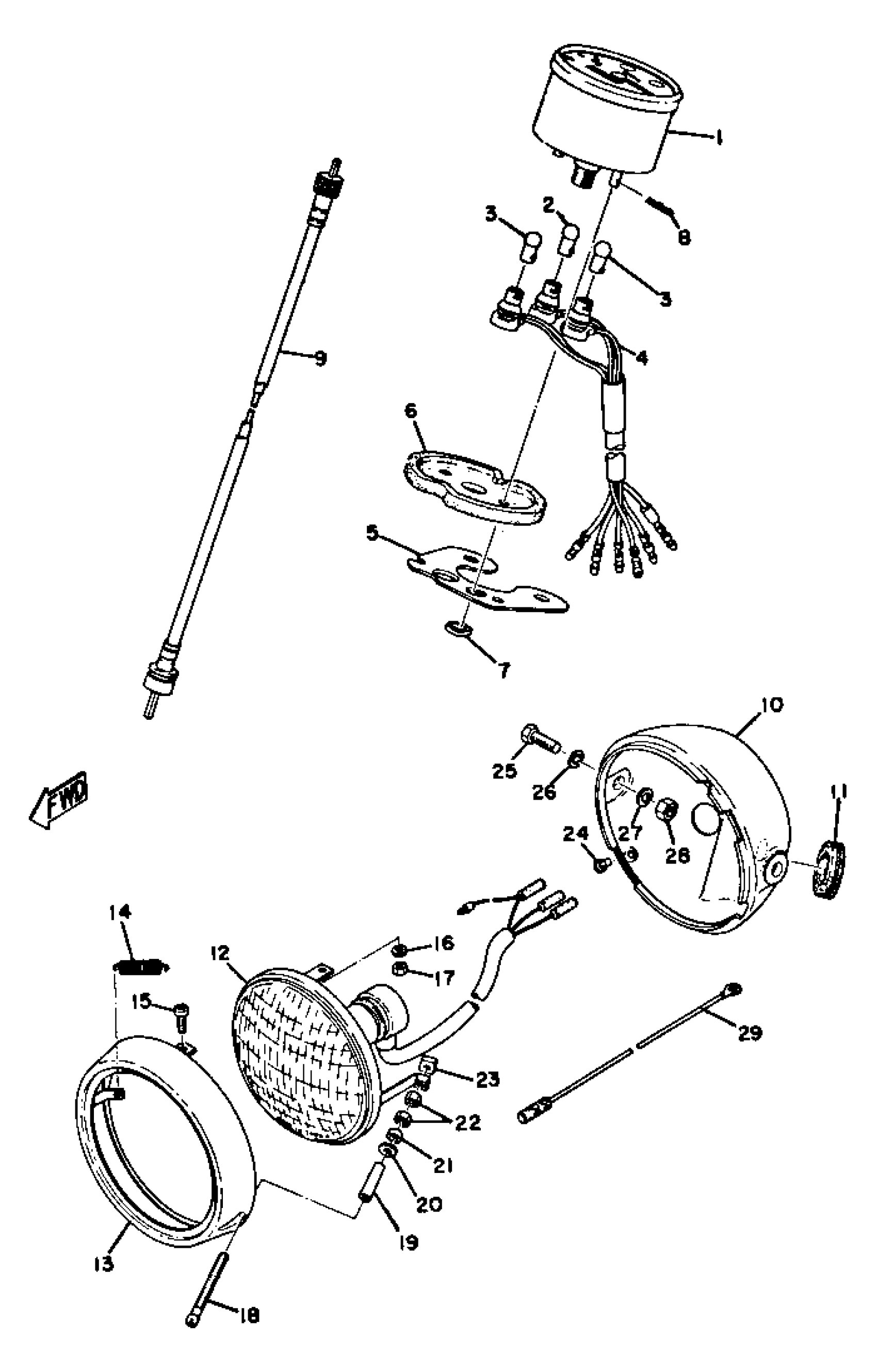

Find the part on the Headlight - Speedometer diagram for your 1973 Yamaha Gtmx (GTMX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha Gtmx (GTMX) Headlight - Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. RIM, HEADLIGHT

261-84315-61-00

1
Out of stock

1

HEADLIGHT UNIT ASSEMBLY

(338-84110-60-00)

1
Out of stock

1

SPEEDOMETER ASSEMBLY

(368-83510-30-00)

1
Out of stock

1

SPEEDOMETER ASSEMBLY

(393-83510-30-00)

1
Out of stock

2

BULB (6V 1.7W)

388-83517-10-00

1

$4.74

In stock

3

BULB,(6V3W)

122-83516-10-00

1
Out of stock

4

SOCKET CORD ASSEMBLY

(393-83520-00-00)

1
Out of stock

5

BRACKET, METER

(368-83519-00-35)

1
Out of stock

6

DAMPER

237-83523-00-00

1

$8.70

In stock

7

WASHER 214835240000

90209-05029-00

1

$6.86

In stock

8

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

9

SPEEDOMETER CABLE ASSY

3T5-83550-80-00

—

$42.34

In stock

10

BODY ASSEMBLY, HEADLIGHT

(393-84130-60-26)

1
Out of stock

10

BODY ASSEMBLY, HEADLIGHT

(393-84130-60-63)

1
Out of stock

11

GROMMET (L)

150-84153-00-00

1

$17.41

In stock

12

. LENS ASSEMBLY

338-84120-60-00

1
Out of stock

14

SPRING

(132-84335-60-00)

1
Out of stock

15

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

16

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

17

NUT(6L4)

95380-04700-00

—

$5.62

In stock

18

SCREW, RIM ADJUSTING

(198-84331-60-00)

1
Out of stock

19

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

20

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

21

. SPACER

132-84328-60-00

1
Out of stock

22

NUT(6L4)

95380-04700-00

—

$5.62

In stock

23

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

24

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

25

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

26

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

28

NUT(6L2)

95333-08600-00

—

$3.20

In stock

29

WIRE, EARTH

(173-84313-00-00)

1
Out of stock
