1973 Yamaha GTMX (GTMX) Oil Pump Diagram

← All diagrams

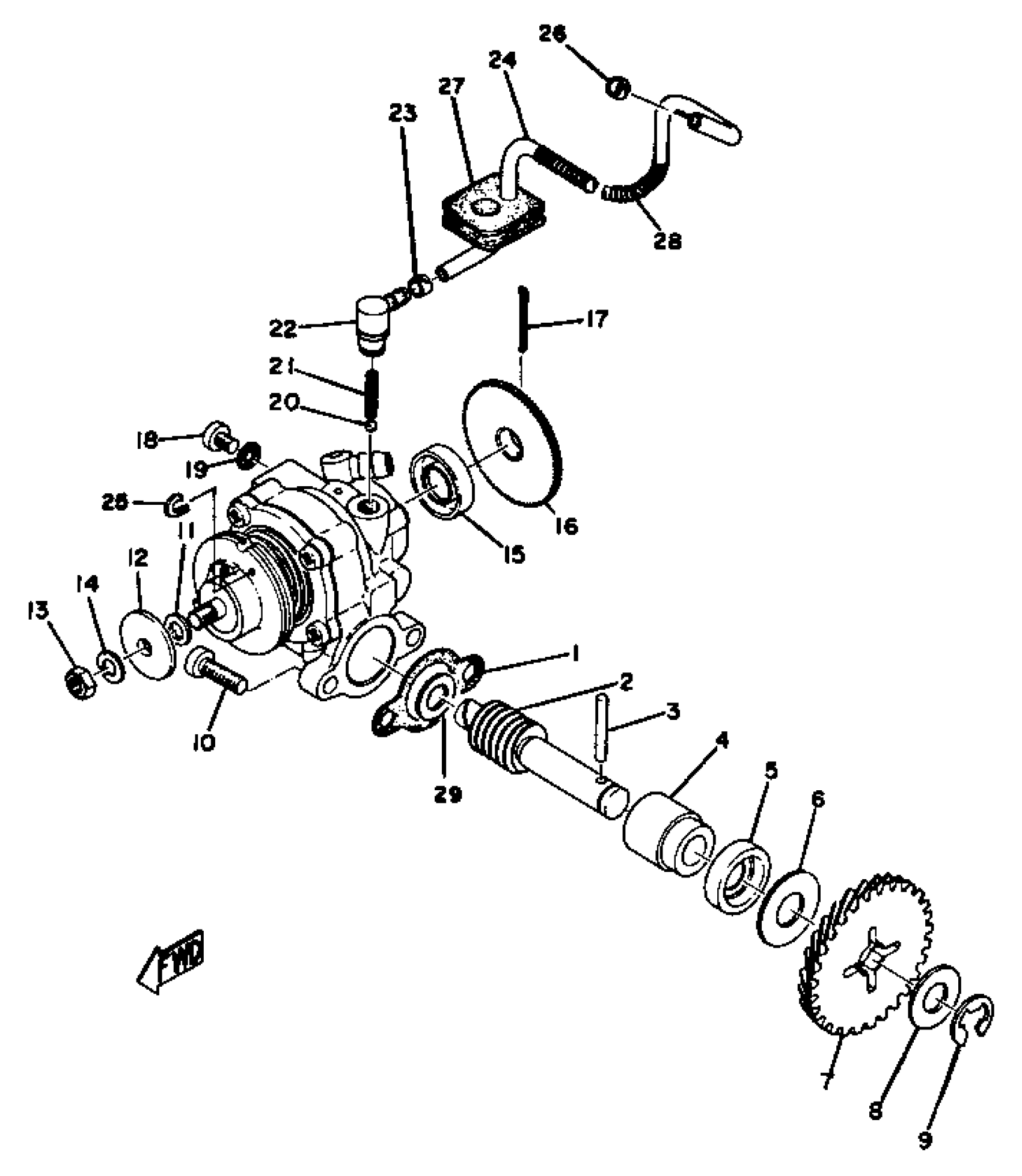

Find the part on the Oil Pump diagram for your 1973 Yamaha GTMX (GTMX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha GTMX (GTMX) Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

367-13101-00-00

1
Out of stock

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

SHAFT, WORM

257-13175-00-00

1
Out of stock

3

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

4

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

5

OIL SEAL (J10)

93101-10090-00

1
Out of stock

6

WASHER, PLATE(3GM)

90201-106M5-00

1
Out of stock

7

GEAR, PUMP DRIVE

353-13178-00-00

1
Out of stock

8

WASHER, PLATE

(90201-10129-00)

1
Out of stock

9

. CIRCLIP, PLUNGER

93440-08001-00

1
Out of stock

10

SCREW, PAN HEAD(6B0)

97885-05016-00

1
Out of stock

10

SCREW, PAN HEAD(6B0)

97885-05016-00

1
Out of stock

11

SHIM,PLUNGER

137-13137-00-10

1
Out of stock

12

PLATE, ADJUSTING

137-13138-01-00

—
Out of stock

13

NUT, HEXAGON (663)

95380-05600-00

1
Out of stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

15

OIL SEAL (J10)

93101-10090-00

1
Out of stock

16

PLATE, STARTER

(353-13128-00-00)

1
Out of stock

17

. PIN, COTTER

91401-12018-00

1
Out of stock

18

SCREW, BIND

98980-04008-00

1
Out of stock

19

GASKET 137131870000

90430-04004-00

—
Out of stock

20

BALL

93505-32002-00

—
Out of stock

21

SPRING (278-13169-00)

90501-02018-00

—
Out of stock

22

NOZZLE

353-13552-01-00

—
Out of stock

23

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

24

HOSE (L700)

90445-05M07-00

1
Out of stock

25

COVER, ADJUST PULLEY

367-13146-01-00

—
Out of stock

26

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

27

HOLDER, OIL PIPE

248-13174-00-00

—
Out of stock

28

SPRING, COMPRESSION

90501-06025-00

1
Out of stock

29

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock
