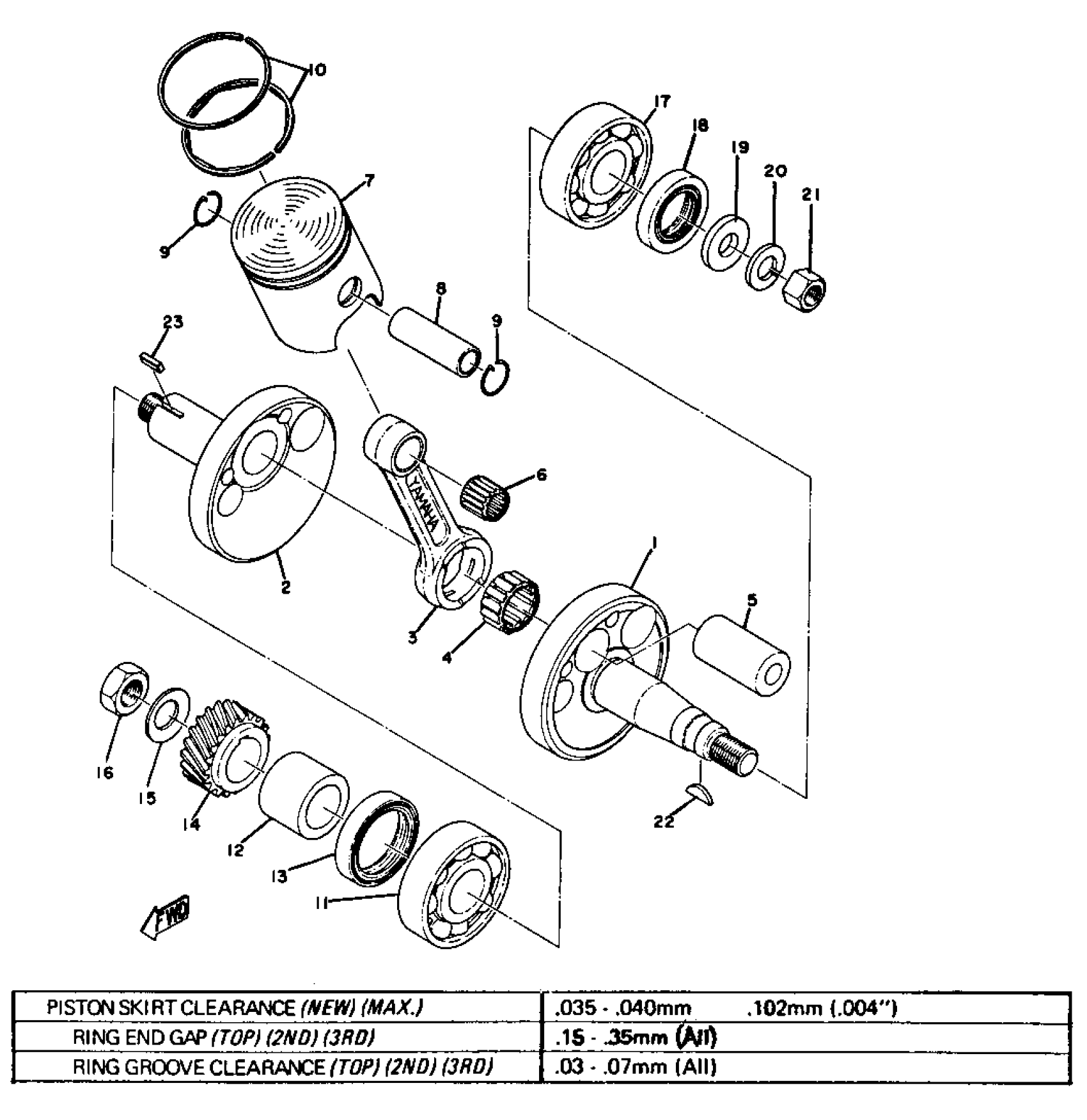

Find the part on the Crank - Piston diagram for your 1973 Yamaha GTMX (GTMX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha GTMX (GTMX) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

1K9-11400-00-00

1
Out of stock

1

CRANK 1

(367-11412-00-00)

1
Out of stock

2

CRANK 2

(367-11422-00-00)

1
Out of stock

3

ROD, CONNECTING

3R1-11651-01-00

1
Out of stock

4

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

1
Out of stock

5

PIN, CRANK 1

257-11681-10-00

1
Out of stock

6

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

1
Out of stock

7

PISTON (STD) 0.96MM

367-11631-11-96

—
Out of stock

7

PISTON (1ST O/S)

367-11635-11-00

—
Out of stock

7

PISTON (STD) 2ND O/S

367-11636-11-00

—
Out of stock

8

PIN, PISTON

527-11633-00-00

1
Out of stock

9

CIRCLIP 132116340000

93450-13022-00

1
Out of stock

10

PISTON RING SET (STD)

367-11610-00-00

1
Out of stock

10

PISTON RINGSET 1ST

367-11610-10-00

1
Out of stock

10

PISTON RING SET (2NDO/S)

367-11610-20-00

1
Out of stock

11

BEARING(1GJ)

93306-20458-00

—
Out of stock

12

COLLAR (4Y2)

90387-205E9-00

—
Out of stock

13

OIL SEAL (28X40X8-132)

93103-28011-00

—
Out of stock

14

GEAR, PRI DRIVE

353-16111-01-00

1
Out of stock

15

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

16

NUT(1EE)

90179-12659-00

—
Out of stock

17

BEARING(1GJ)

93306-20458-00

—
Out of stock

18

OIL SEAL (20X35X7-136)

93102-20009-00

—
Out of stock

19

WASHER (492)

90201-12535-00

—
Out of stock

20

YBS67-12 WASHER,SPRING

92990-12100-00

—
Out of stock

21

NUT, HEXAGON 98801-12200

90170-12175-00

—
Out of stock

22

KEY WOODRUFF 146115450000

90280-03017-00

—
Out of stock

23

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock
