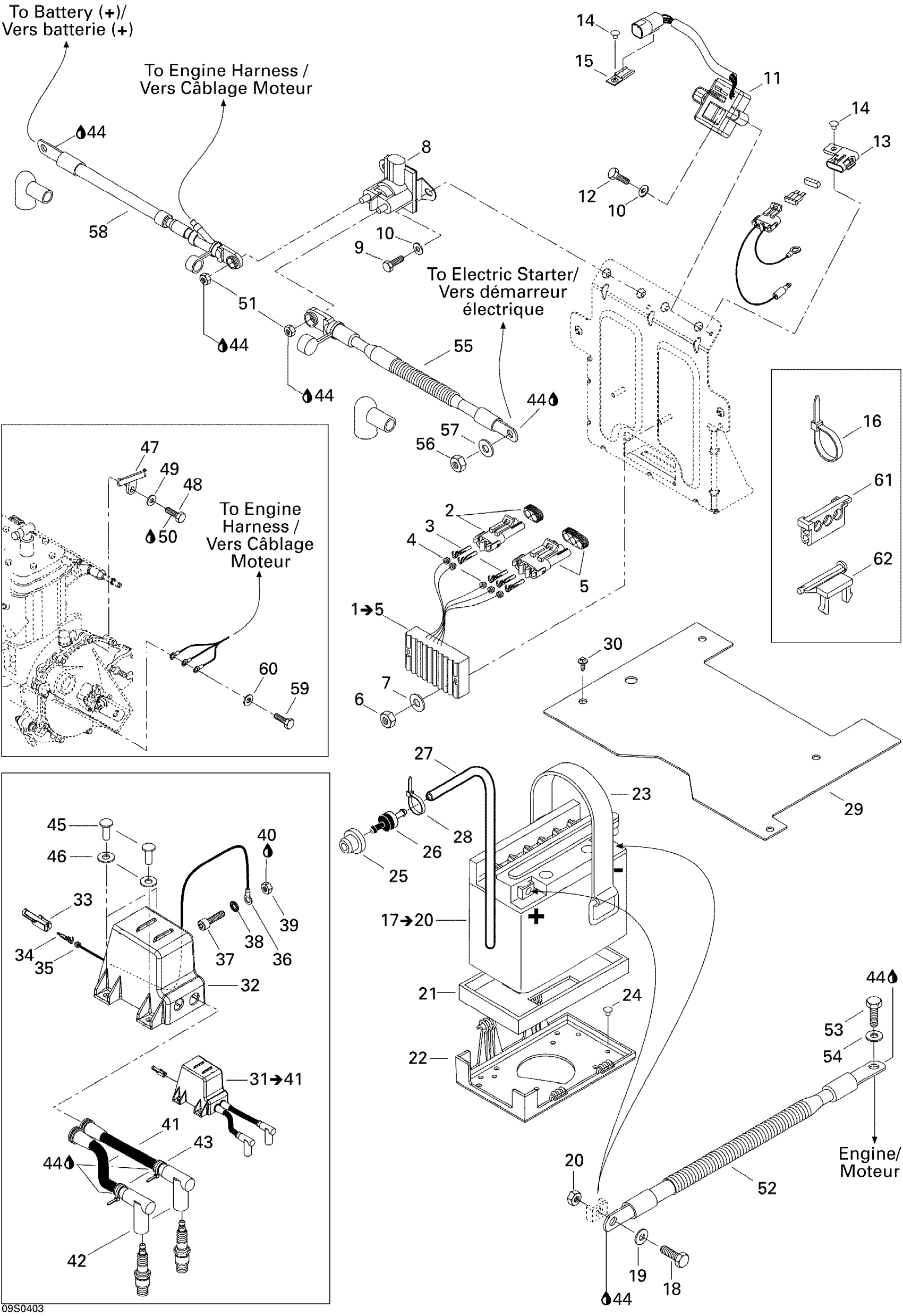

Sea-doo GTI LE RFI, 2004 Electrical System Diagram

#

Description
Price

1

Rectifier Ass’Y | Includes 30 - 34.

278001554

Unavailable

2

Male Connector, 2 Circuits

278000220

Unavailable

3

Female Terminal

409007300

Unavailable

4

Wire Seal

278000218

Unavailable

5

Male Housing, 3 Circuits

278000273

Unavailable

6

Hex. Elastic Stop Nut M6

232561600

Unavailable

7

Stainless Flat Washer M6

234061600

Unavailable

8

Starter Relay

278003012

Unavailable

9

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

10

Flat Washer M6, Stainless

234062600

Unavailable

11

MAIN RELAY - Call your local BRP dealership

278001783

Unavailable

12

Hex. Screw M6 X 30, Scotch Grip

207363060

Unavailable

13

Fuse Holder Cap

278001326

Unavailable

14

Pop Rivet 3/16"

204000081

Unavailable

15

Clip

270000141

Unavailable

16

Tie Wrap 94 mm | 4X4

293750001

Unavailable

16

Tie Wrap 142 mm

293750002

Unavailable

16

Tie Wrap 368 mm

293750008

Unavailable

16

Tie-Rap 173 mm

293750009

Unavailable

16

Tie-Rap 180 mm

414115200

Unavailable

17

Battery 19A | Includes 5 to 8

278001756

Unavailable

18

Hex. Screw M6 X 16

207161644

Unavailable

19

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

20

Hex. Nut M6

232061414

Unavailable

21

Lower Battery Pad

278001746

Unavailable

22

BATTERY SUPPORT - Call your local BRP dealership

278001972

Unavailable

23

Retainer Strap

293850097

Unavailable

24

Avdel Rivet 3/16"

293150037

Unavailable

25

Grommet

293720029

Unavailable

26

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

27

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

28

Tie Wrap 94 mm | 4X4

293750001

Unavailable

29

Module Protector

275000259

Unavailable

30

Mount Dart

293730040

Unavailable

31

IGNITION COIL ASSY - Call your local BRP dealership | Includes 32 to 44

278001545

Unavailable

32

Ignition Coil

278001546

Unavailable

33

Female Housing, 1 Circuit

278000161

Unavailable

34

Male Terminal

409004300

Unavailable

35

Wire Seal

278000218

Unavailable

36

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

37

Socket Head Screw M6 X 20

205062044

Unavailable

38

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

39

Elastic Stop Nut M6

232561414

Unavailable

40

Loctite 271, 10 ml

293800005

Unavailable

41

Spark Plug Wire, 270 mm

278001464

Unavailable

41

Spark Plug Wire

278001465

Unavailable

42

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

43

Tie Wrap 142 mm

293750002

Unavailable

44

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

45

Tapping Screw M6.3 X 32

209663260

Unavailable

46

Stainless Flat Washer M6

234061600

Unavailable

47

Clip

278001873

Unavailable

48

TAPTITE SCREW M6 X 25 - Call your local BRP dealership

420841543

Unavailable

49

Stainless Flat Washer M6

234061600

Unavailable

50

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

51

Hex. Elastic Stop Nut M6

232561600

Unavailable

52

Battery Ground Cable

278001973

Unavailable

53

Hex. Screw M8 X 20, Scotch Grip

207382060

Unavailable

54

Stainless, Flat Washer 8 mm

234081600

Unavailable

55

Starter Cable

278001804

Unavailable

56

Hex. Elastic Stop Nut M6

232561600

Unavailable

57

Stainless Flat Washer M6

234061600

Unavailable

58

Battery Cable

278001803

Unavailable

59

Hex. Screw M6 X 16, Scotch Grip

207361660

Unavailable

60

Flat Washer M6, Stainless

234062600

Unavailable

61

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

62

Collar Support

278001096

Unavailable
