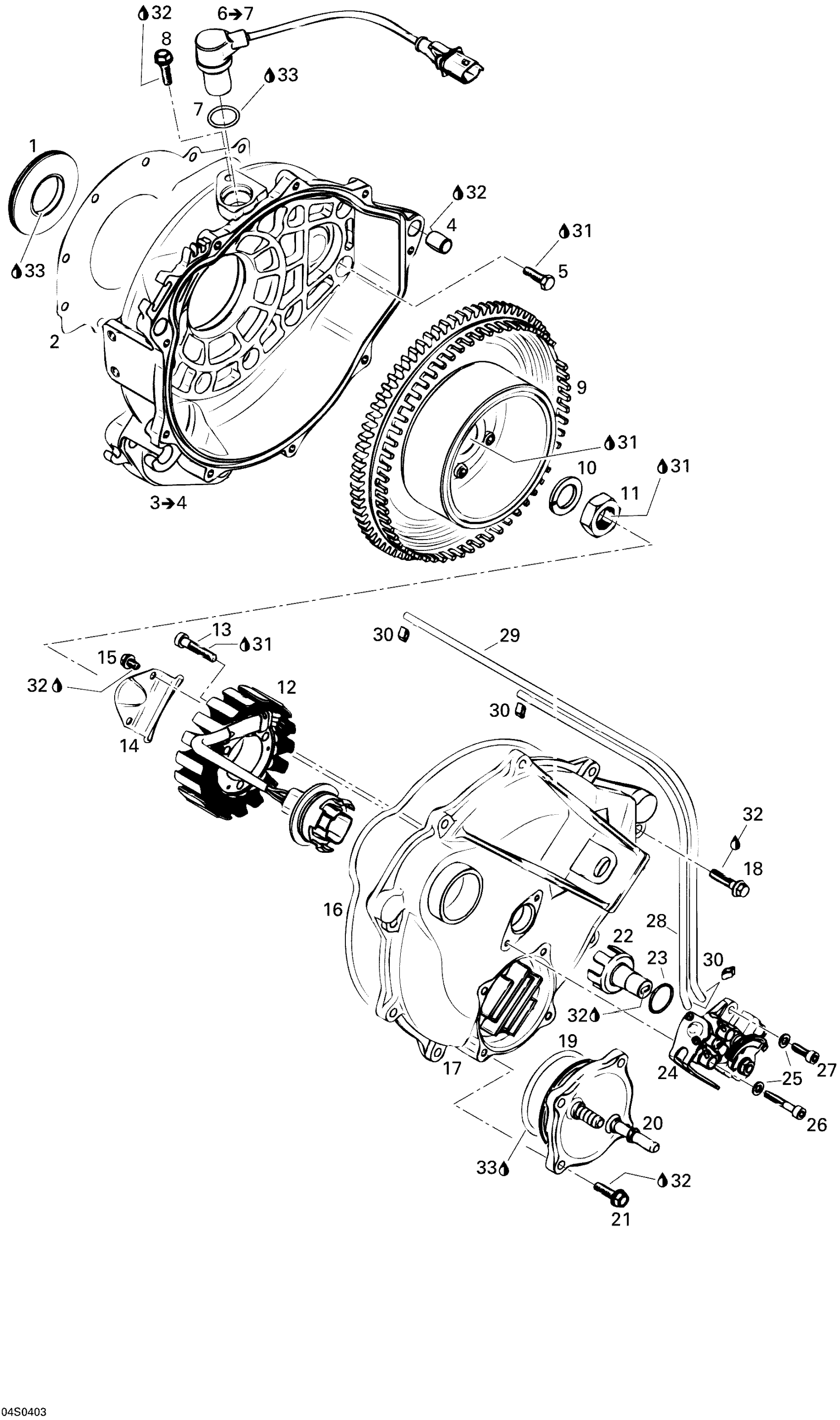

Sea-doo GTI LE RFI, 2004 Magneto and Oil Pump Diagram

#

Description
Price

1

Oil Seal This part replaces 290830749.

420830749

Unavailable

2

GASKET - Call your local BRP dealership

420931470

Unavailable

3

IGNITION HOUSING, BLACK - Call your local BRP dealership

420811012

Unavailable

4

Dowel Tube

420229153

Unavailable

5

Hex. Screw M6 X 25

420240034

Unavailable

6

Crank Sensor Ass'y | Includes 31 to 32

278001874

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Hex. Forming Screw M6 X 16

210361660

Unavailable

9

FLYWHEEL ASS'Y - Call your local BRP dealership

420966564

Unavailable

10

LOCK WASHER 18 MM - Call your local BRP dealership

420945757

Unavailable

11

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

12

STATOR PLATE ASS'Y - Call your local BRP dealership

420887951

Unavailable

13

Socket Head Screw M6 X 35 This part replaces 420640051.

420640052

Unavailable

14

Holding Strip

420851400

Unavailable

15

HEX. SCREW M5 X 8 - Call your local BRP dealership

207150844

Unavailable

16

O-RING - Call your local BRP dealership This part replaces 290950360.

420950360

Unavailable

17

Ignition Cover, black

420811023

Unavailable

18

HEX. FLANGED SCREW M6 X 25 - Call your local BRP dealership

420240033

Unavailable

19

O-RING - Call your local BRP dealership

420850390

Unavailable

20

WATERCHANNEL COVER - Call your local BRP dealership

420811220

Unavailable

21

TAPPING SCREW M6 X 20 - Call your local BRP dealership

420941253

Unavailable

22

OIL PUMP SHAFT - Call your local BRP dealership

420837392

Unavailable

23

O-RING - Call your local BRP dealership

293300018

Unavailable

24

OIL PUMP ASS?Y - Call your local BRP dealership

420887338

Unavailable

25

LOCK WASHER 5 MM - Call your local BRP dealership

420845389

Unavailable

26

Socket Head Screw M5 X 30

420940883

Unavailable

27

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

Unavailable

28

Oil Hose 1500Mm Long

219704404

Unavailable

29

Oil Hose 1500Mm Long

219704404

Unavailable

30

Clamp

420256408

Unavailable

31

Loctite 243, 10 ml

293800060

Unavailable

32

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

33

Dow Corning 111, 150 g

413707000

Unavailable
