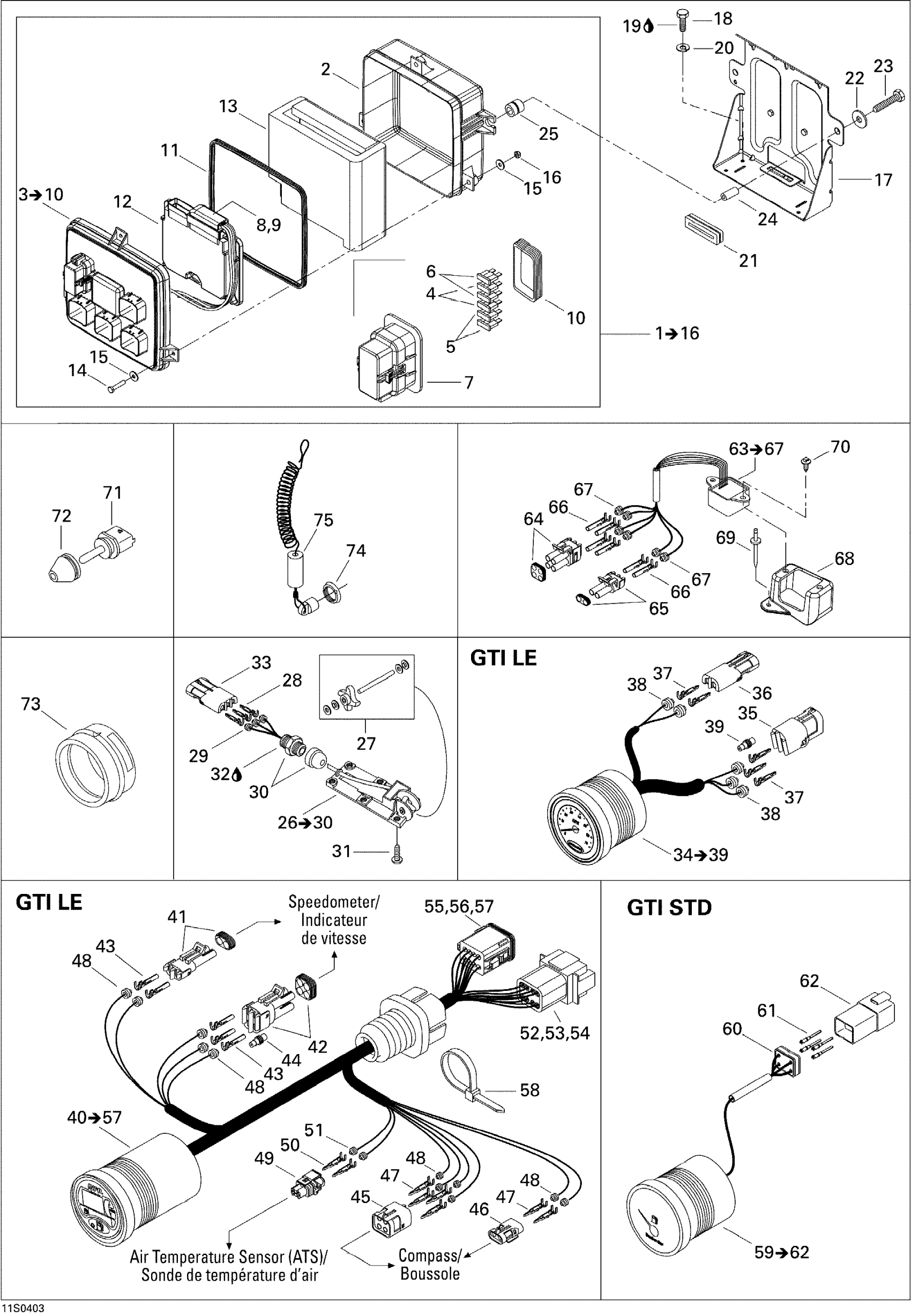

Sea-doo GTI LE RFI, 2004 Electrical Accessories Diagram

#

Description
Price

1

Electronic Module Ass'y | Includes 1 to 16

278001929

Unavailable

2

Electronic Box Base

278000938

Unavailable

3

ELECTRONIC MODULE - Call your local BRP dealership | Includes 3 to 10

278001981

Unavailable

4

Fuse, 5 Amperes | CE

278000344

$3.12

5

Fuse, 10 Amperes | North America

278001197

$1.79

6

Fuse, 15 Amperes

278000343

$2.72

7

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

8

Female Terminal

278000998

$3.48

9

Wire Seal

278000999

$2.55

10

Cover Seal

278001070

Unavailable

11

Gasket

293250063

Unavailable

12

Electronic Module

278001930

Unavailable

13

Foam

278001974

Unavailable

14

Hex. Screw M6 X 30

207063060

$1.51

15

Flat Washer M6, Stainless

234062600

$0.64

16

Hex. Elastic Stop Nut M6

232561600

$0.92

17

Box Support

278001856

Unavailable

18

Hex. Screw 10-14 X 7/8”

211000023

$2.91

19

Loctite 271, 10 ml

293800005

$20.77

20

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

21

Insulator

278001259

Unavailable

22

Flat Washer M6, Stainless

234062600

$0.64

23

Hex. Screw M6 X 30, Scotch Grip

207363060

Unavailable

24

SPACER - Call your local BRP dealership

272000074

Unavailable

25

UPPER INSULATOR - Call your local BRP dealership

278001260

Unavailable

26

Speed Sensor | Includes 26 to 30 / LE

278001595

Unavailable

27

Paddle Wheel Kit

295500108

Unavailable

28

Male Terminal | XT Models

278000222

$2.55

29

Wire Seal

278000218

$3.48

30

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

31

Phillips Screw M5 x 12

250000319

$1.03

32

Was 293800013 Loctite 56765

219704454

$63.40

33

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

34

SPEEDOMETER - Call your local BRP dealership | Includes 34 to 39 / LE

278001822

Unavailable

35

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

36

Female Housing, 2 Circuits

278000217

$7.59

37

Male Terminal | XT Models

278000222

$2.55

38

Wire Seal

278001065

$5.85

39

Wire Seal

278000216

$2.55

40

LCD Info Gauge | Includes 40 to 57 / LE

278001799

Unavailable

41

Male Connector, 2 Circuits

278000220

$11.02

42

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

43

Female Terminal

278000223

$2.55

44

Wire Seal

278000216

$2.55

45

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

46

Female Housing, 2 Circuits

278000217

$7.59

47

Male Terminal | XT Models

278000222

$2.55

48

Wire Seal

278001065

$5.85

49

Male Housing, 2 Circuits

278001005

$15.57

50

Female Terminal

278000998

$3.48

51

Wire Seal

278000999

$2.55

52

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001742

Unavailable

53

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

515175276

Unavailable

54

Male Terminal | GTI RFI LE

278001664

Unavailable

55

MALE HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001743

Unavailable

56

SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership

278001744

Unavailable

57

Female Terminal

278001665

$3.73

58

Tie-Rap 180 mm

414115200

$0.09

59

Oil/Fuel Gauge | Includes 59 to 62 / STD

278001622

Unavailable

60

Female Wedge, 4 Circuits

278000636

$4.00

61

Male Terminal | GTI RFI LE

278001664

Unavailable

62

Female Housing, 4 Circuits

278000635

$13.60

63

Compass | GTI RFI LE, Includes 38 to 42

278001243

Unavailable

64

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

65

Male Connector, 2 Circuits

278000220

$11.02

66

Female Terminal

278000223

$2.55

67

Wire Seal

278000218

$3.48

68

Support | GTI RFI LE

278001863

Unavailable

69

Pop Rivet 3/16"

293150080

Unavailable

70

Black Dart

293730010

$0.81

71

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

72

INSULATOR - Call your local BRP dealership

278001054

Unavailable

73

Gauge Support

293720047

Unavailable

73

Gauge Support

293720047

Unavailable

74

Safety Nut (DESS Switch)

278002963

$2.72

75

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$68.87
