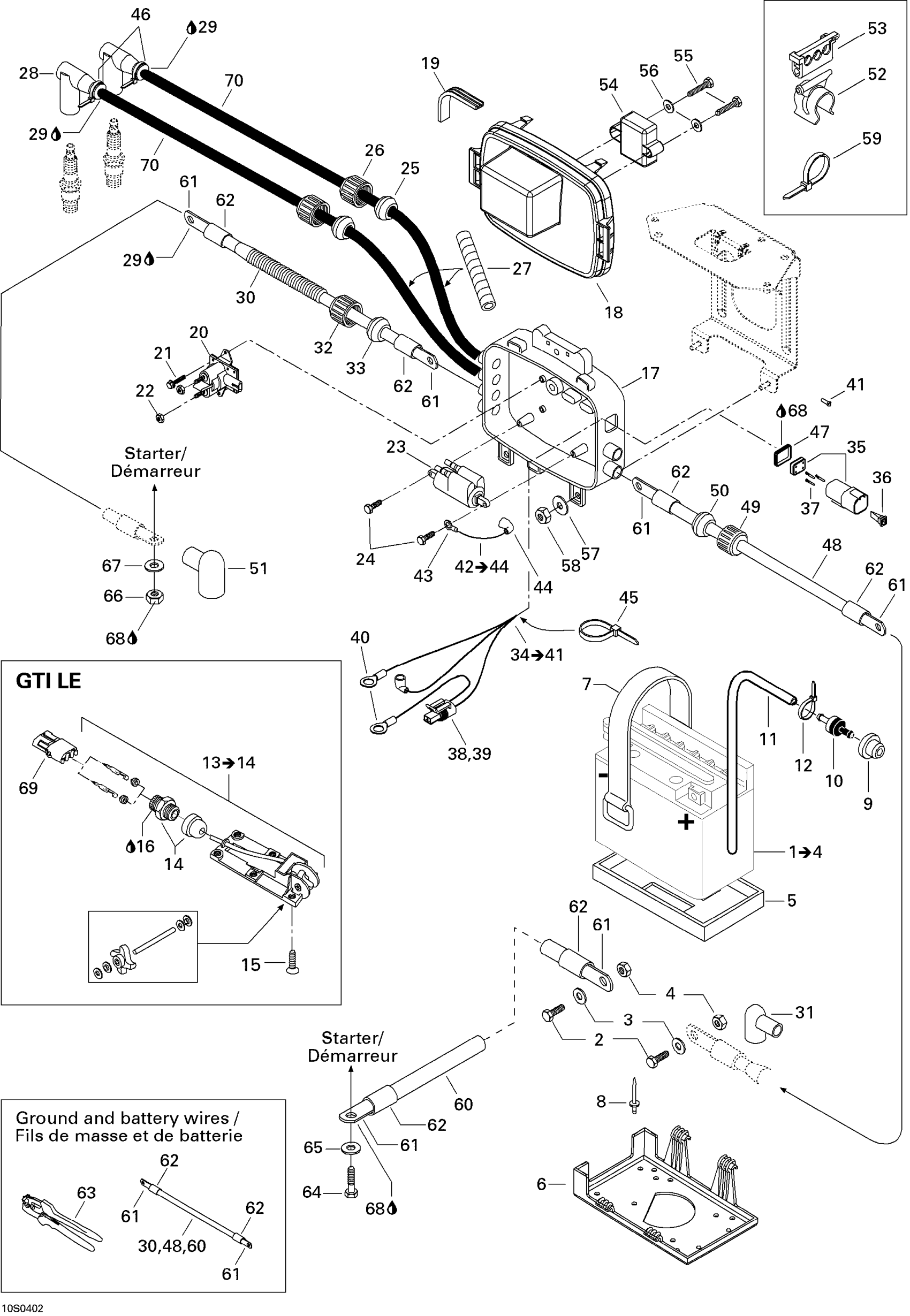

Sea-doo GTI LE, 2004 Rear Electrical Box Diagram

#

Description
Price

1

Battery 19A | Includes 5 to 8

278001756

$144.75

2

Hex. Screw M6 X 16

207161644

$0.61

3

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

4

Hex. Nut M6

232061414

$0.44

5

Lower Battery Pad

278001746

Unavailable

6

BATTERY SUPPORT - Call your local BRP dealership

278001972

Unavailable

7

Retainer Strap

293850097

$9.26

8

Avdel Rivet 3/16"

293150037

$0.47

9

Grommet

293720029

$1.13

10

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

11

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

12

Tie Wrap 94 mm | 4X4

293750001

$0.83

13

Speed Sensor | GTI LE / Includes 13 to 14

278001668

Unavailable

14

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

15

Phillips Screw M5 x 12

250000319

$1.03

16

Was 293800013 Loctite 56765

219704454

$63.40

17

Electrical Box Base

278001712

Unavailable

18

Box Cover

278001785

Unavailable

19

GASKET - Call your local BRP dealership

278001173

Unavailable

20

Starter Relay

278003012

$35.07

21

Hex. Flange Screw M6 X 10

210261040

$1.25

22

Hex. Elastic Stop Nut M6

232561600

$0.92

23

Ignition Coil

278000383

$80.57

24

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

25

Grommet

278000682

Unavailable

26

Electric Wire Cap

278000100

Unavailable

27

Housing 9 mm, Meter

293100012

Unavailable

28

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

29

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

30

Not Available As Spare Part - Friction Washer

Unavailable

31

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

32

Electric Wire Cap

278000100

Unavailable

33

GROMMET - Call your local BRP dealership

278000098

Unavailable

34

Electric Box Harness | Includes 34 to 41

278001797

Unavailable

35

Male Terminal Housing, 6 Circuits

710001539

$15.57

36

Female Lock, 6 Circuits

278000735

$2.93

37

Male Terminal

278000631

$4.00

38

Male Connector, 2 Circuits

278001113

$12.65

39

Female Terminal

278001114

$2.55

40

Open Barrel

278000992

$1.79

41

Sealing Cap

293000052

$2.55

42

Ground Harness | Includes 82 - 84.

278000664

Unavailable

43

Ring Terminal

278000300

Unavailable

44

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

45

Tie Wrap 94 mm | 4X4

293750001

$0.83

46

Tie Wrap 142 mm

293750002

$0.88

47

Gasket

293200055`

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Electric Wire Cap

278000100

Unavailable

50

GROMMET - Call your local BRP dealership

278000098

Unavailable

51

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

52

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

53

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

54

CUT-OFF RELAY - Call your local BRP dealership

278001795

Unavailable

55

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

56

Flat Washer M5, Stainless

234051600

$0.64

57

Flat Washer M6, Stainless

234062600

$0.64

58

Hex. Elastic Stop Nut M6

232561600

$0.92

59

Tie Wrap 142 mm

293750002

$0.88

59

Tie-Rap 180 mm

414115200

$0.09

59

Tie-Rap 173 mm

293750009

$0.85

60

Ground Cable Battery, No. 6, Meter

278001667

Unavailable

61

Terminal 45°, Small Hole

278001682

Unavailable

61

Terminal 30°, 2 Holes

278001776

Unavailable

61

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

61

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

61

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

61

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

61

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

61

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

61

Terminal 45°, Big Hole

278000538

Unavailable

61

Terminal

278000544

Unavailable

62

Was 710000483 Heat Shrink Tubing

219704447

$72.36

63

Crimp Plier

529035730

Unavailable

64

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

65

Stainless, Flat Washer 8 mm

234081600

$0.46

66

Hex. Elastic Stop Nut M6

232561600

$0.92

67

Stainless Flat Washer M6

234061600

$0.25

68

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

69

Female Housing, 2 Circuits

278000217

$7.59

70

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable
