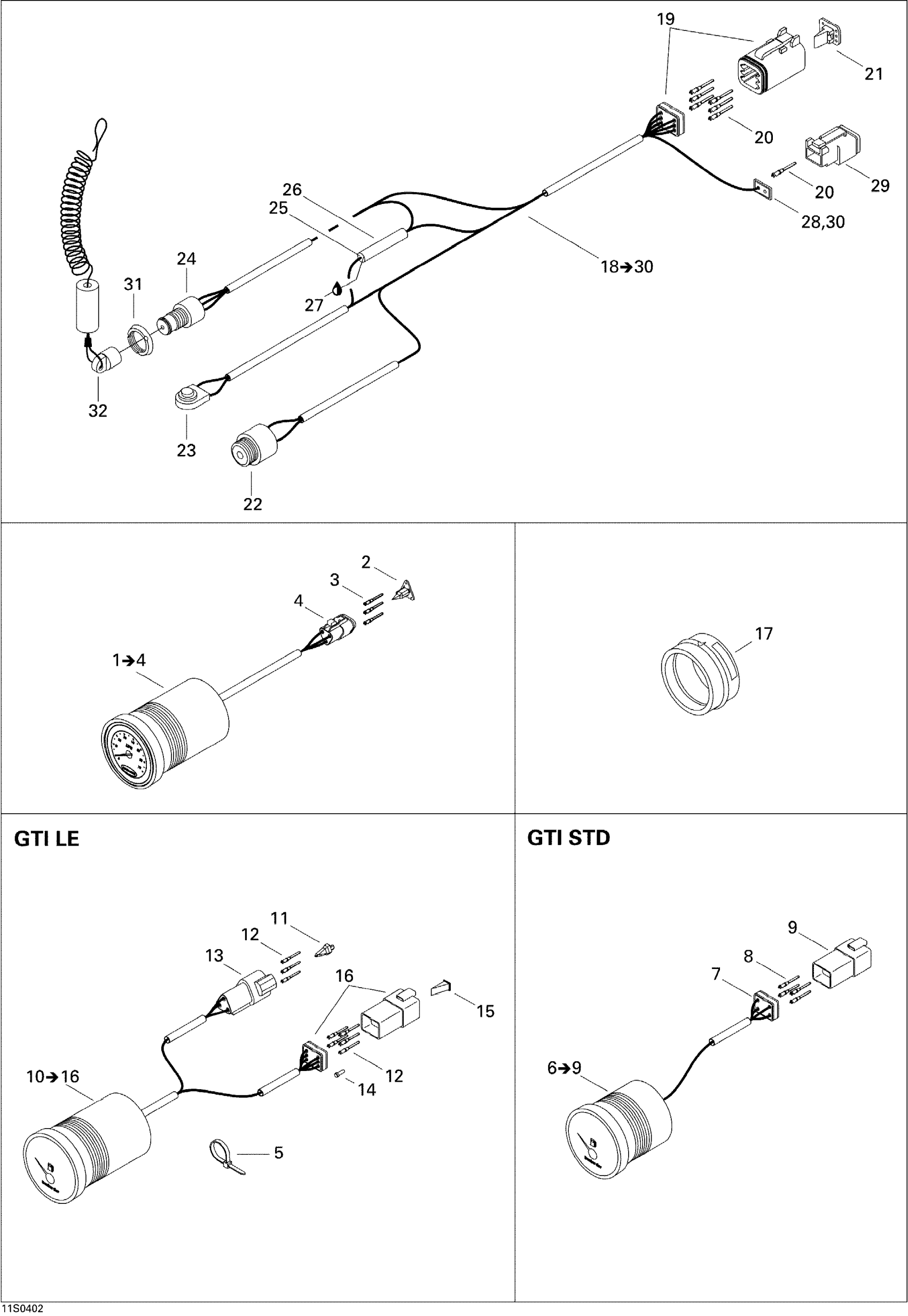

Sea-doo GTI LE, 2004 Electrical Accessories 1 Diagram

#

Description
Price

1

Speedometer | Includes 1 to 4 / GTI LE

278001962

Unavailable

2

Female Lock

409207200

Unavailable

3

Female Terminal

278001665

Unavailable

4

Female Connector, 2 Circuits

409207300

Unavailable

5

Tie-Rap 180 mm

414115200

Unavailable

6

Oil/Fuel Gauge | Includes 59 to 62 / STD

278001622

Unavailable

7

Female Wedge, 4 Circuits

278000636

Unavailable

8

Male Terminal | GTI RFI LE

278001664

Unavailable

9

Female Housing, 4 Circuits

278000635

Unavailable

10

Oil/Fuel Gauge | Includes 10 to 16 / GTI LE

278001961

Unavailable

11

Male Lock, 3 Circuits

409207600

Unavailable

12

Male Terminal | GTI RFI LE

278001664

Unavailable

13

Male Housing

278002378

Unavailable

14

Sealing Cap

293000052

Unavailable

15

Female Lock, 6 Circuits

278000735

Unavailable

16

Male Terminal Housing, 6 Circuits

710001539

Unavailable

17

Gauge Support

293720047

Unavailable

17

Gauge Support

293720047

Unavailable

18

Steering Harness | Includes 23 to 35

278001791

Unavailable

19

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

20

Female Terminal

278000632

Unavailable

21

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

22

BUZZER - Call your local BRP dealership

278001586

Unavailable

23

SWITCH - Call your local BRP dealership

278001587

Unavailable

24

SAFETY SWITCH - Call your local BRP dealership

278001790

Unavailable

25

Male Terminal

278000230

Unavailable

26

Insulated Sheath

278001008

Unavailable

27

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

28

Sealing Cap

293000052

Unavailable

29

Female Connector, 2 Circuits

409207300

Unavailable

30

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

31

Safety Nut (DESS Switch)

278002963

Unavailable

32

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable
