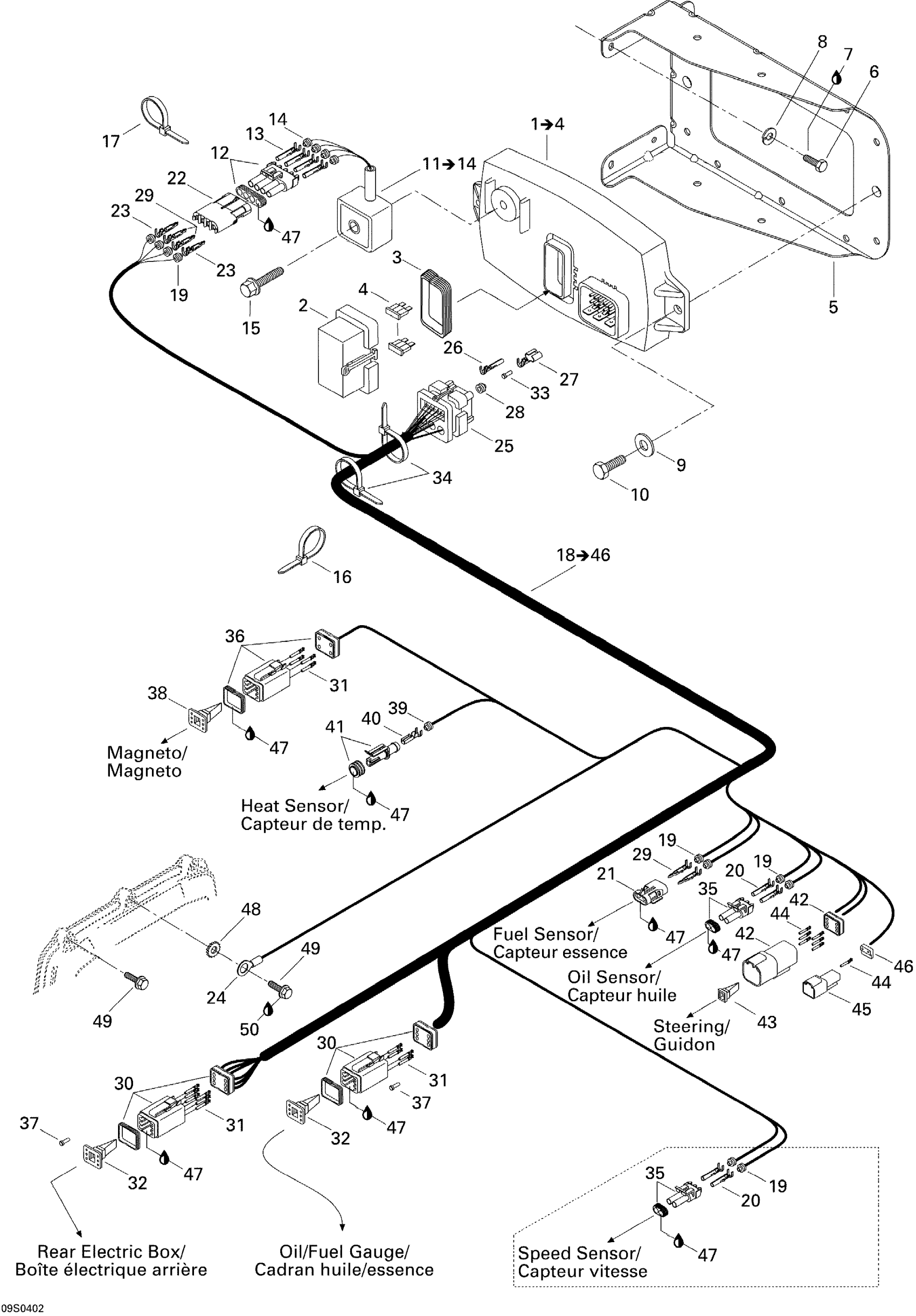

Sea-doo GTI LE, 2004 Electrical System Diagram
#
1
ELECTRONIC MODULE ASS?Y - Call your local BRP dealership | Includes 1 to 4
278001796
Unavailable
2
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
Unavailable
3
Cover Seal
278001070
Unavailable
4
Fuse, 15 Amperes
278000343
Unavailable
4
Fuse, 5 Amperes | CE
278000344
Unavailable
5
BOX SUPPORT ASS?Y - Call your local BRP dealership
278001644
Unavailable
6
Hex. Screw 10-14 X 7/8”
211000023
Unavailable
7
Loctite 271, 10 ml
293800005
Unavailable
8
WASHER-LOCK IMPERIAL - Call your local BRP dealership
211200043
Unavailable
9
Flat Washer M6, Stainless
234062600
Unavailable
10
Hex. Screw M6 X 16, Scotch Grip
207361660
Unavailable
11
RECTIFIER ASSY - Call your local BRP dealership | Includes 8 - 11.
278001239
Unavailable
12
Male Housing, 4 Circuits
278000395
Unavailable
13
Female Terminal
409007300
Unavailable
14
Wire Seal
278000218
Unavailable
15
Hex. Tapping Screw
211000139
Unavailable
16
Tie-Rap 173 mm
293750009
Unavailable
17
Tie-Rap 180 mm
414115200
Unavailable
18
Main Harness Ass’Y | Includes 18 to 46 / GTI STD
278001792
Unavailable
18
Main Harness Ass’Y | Includes 18 to 46 / GTI LE
278001793
Unavailable
19
Wire Seal
278000218
Unavailable
19
Wire Seal
278000218
Unavailable
20
Female Terminal
278000223
Unavailable
20
Female Terminal
278000223
Unavailable
21
Female Housing, 2 Circuits
278000217
Unavailable
22
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278000394
Unavailable
23
Male Terminal
409004300
Unavailable
24
Open Barrel
278000992
Unavailable
25
Male Connector, 26 Circuits | Includes 16a - 17.
278000993
Unavailable
26
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
26
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
27
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
28
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
29
Male Terminal | XT Models
278000222
Unavailable
30
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
Unavailable
31
Female Terminal
278000632
Unavailable
32
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
33
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
33
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
34
Tie Wrap 142 mm
293750002
Unavailable
35
Male Connector, 2 Circuits
278000220
Unavailable
35
Male Connector, 2 Circuits
278000220
Unavailable
36
Male Connector, 4 Circuits | CE
278000739
Unavailable
37
Sealing Cap
293000052
Unavailable
37
Sealing Cap
293000052
Unavailable
38
Male Lock, 4 Circuits | CE
278000738
Unavailable
39
Wire Seal
278001013
Unavailable
40
Female Terminal
278001014
Unavailable
41
Male Housing, 1 Circuit
278001012
Unavailable
42
Male Terminal Housing, 6 Circuits
710001539
Unavailable
43
Female Lock, 6 Circuits
278000735
Unavailable
44
Male Terminal
278000631
Unavailable
45
Male Housing, 2 Circuits
409206900
Unavailable
46
Male Lock, 2 Circuits
409207500
Unavailable
47
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
48
External Serrated Lock Washer 6 mm
234461608
Unavailable
49
TAPTITE SCREW M6 X 25 - Call your local BRP dealership
420841543
Unavailable
50
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
