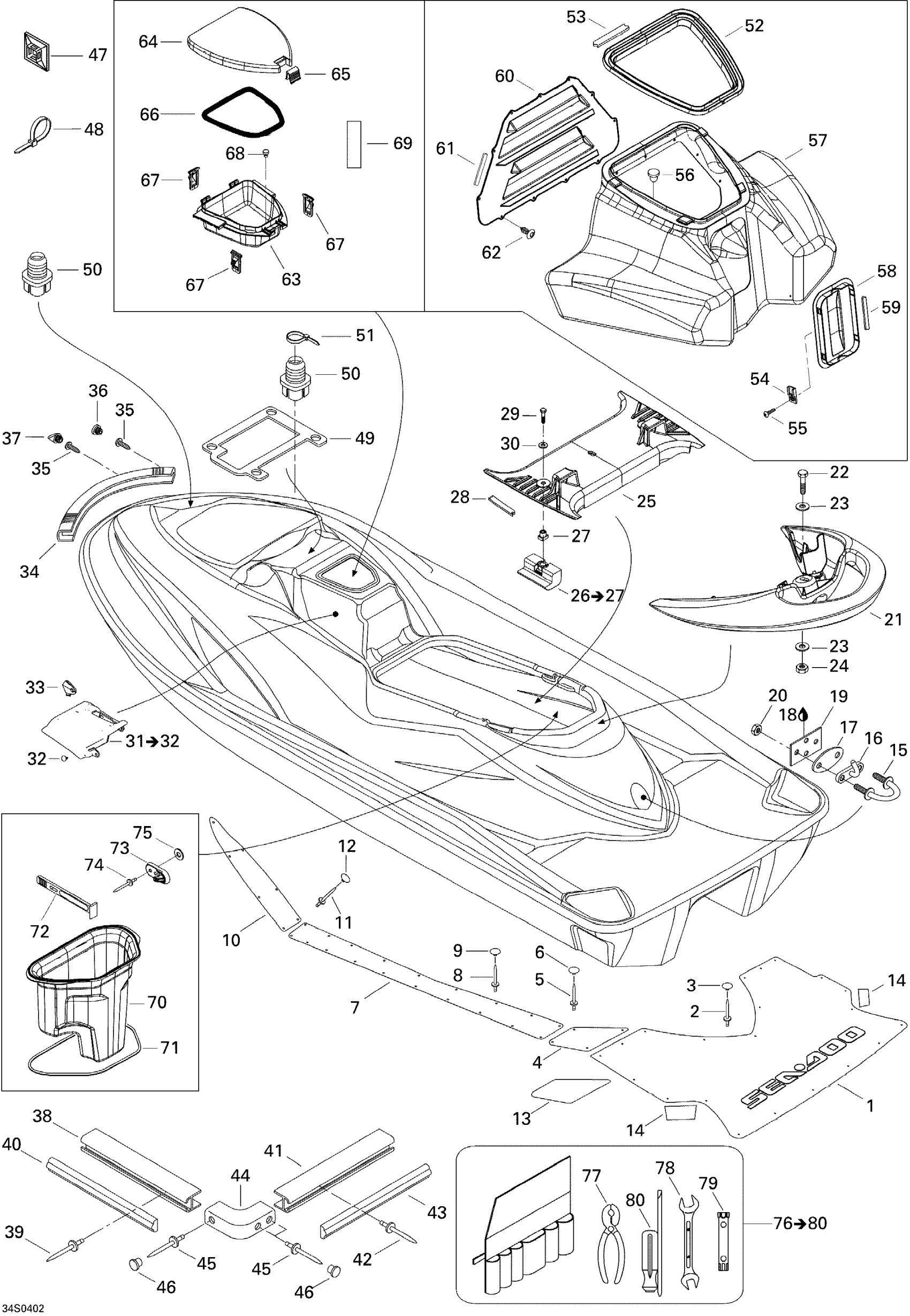

Sea-doo GTI LE, 2004 Body Diagram
#
1
Rear Carpet, Black
291001584
Unavailable
2
Pop RIvet 1/8 X ,375
293150285
Unavailable
3
Black, Snap Cap
293000014
Unavailable
4
RH Rear Carpet | GTI LE RFI
291001464
Unavailable
4
LH Rear Carpet | GTI LE RFI
291001465
Unavailable
5
Pop RIvet 1/8 X ,375
293150285
Unavailable
6
Black, Snap Cap
293000014
Unavailable
7
RH Center Carpet | GTI LE RFI
291001817
Unavailable
7
LH Center Carpet | GTI LE RFI
291001818
Unavailable
8
Pop RIvet 1/8 X ,375
293150285
Unavailable
9
Black, Snap Cap
293000014
Unavailable
10
RH Front Carpet | GTI LE RFI
291001384
Unavailable
10
LH Front Carpet | GTI LE RFI
291001385
Unavailable
11
Pop RIvet 1/8 X ,375
293150285
Unavailable
12
Black, Snap Cap
293000014
Unavailable
13
RH Anti-Skid | STD
291001665
Unavailable
13
LH Anti-Skid | STD
291001666
Unavailable
14
Anti-skid, Black
291001919
Unavailable
15
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
16
Hook | Package LTD
291002351
Unavailable
17
Black, Finition Plate
291001386
Unavailable
18
Silicone Sealant 51388, 300 ml
296000309
Unavailable
19
RETAINER PLATE - Call your local BRP dealership
291001387
Unavailable
20
Hex. Elastic Nut M8
232581600
Unavailable
21
GRAB HANDLE - Call your local BRP dealership
269000812
Unavailable
22
Hex. Screw M8 X 45
207084560
Unavailable
23
Stainless, Flat Washer 8 mm
234081600
Unavailable
24
Hex. Elastic Nut M8
232581600
Unavailable
25
Upper Bridge
291001854
Unavailable
26
Link Bridge Ass'y
291001931
Unavailable
27
Square Nut M8
211100033
Unavailable
28
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
29
HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership
207384060
Unavailable
30
Flat Washer 8 mm, Stainless
234082600
Unavailable
31
RH Grill Ass’Y | Includes 25 to 26
291001649
Unavailable
31
LH GRILL ASSY - Call your local BRP dealership | Includes 25 to 26
291001650
Unavailable
32
Black Dart
293730010
Unavailable
33
Spacer | STD
291001730
Unavailable
34
BUMPER NOSE, BLACK - Call your local BRP dealership
291001942
Unavailable
35
Plastite Torx Screw #10 X 7/8"
250000207
Unavailable
36
Bumper Plug, Black
291001519
Unavailable
37
Bumper Plug, Black
291001040
Unavailable
38
Black, Side Bumper
204050270
Unavailable
39
Pop Rivet 3/16"
293150005
Unavailable
40
SIDE BUMPER TRIM, BLACK - Call your local BRP dealership | GTI STD RFI
291001520
Unavailable
40
Side Bumper Trim, Black | GTI LE RFI
291001814
Unavailable
41
REAR BUMPER, BLACK - Call your local BRP dealership
291002242
Unavailable
42
Pop Rivet 3/16"
293150005
Unavailable
43
REAR BUMPER TRIM, BLACK - Call your local BRP dealership | GTI STD RFI
291001521
Unavailable
43
Rear Bumper Trim, Black | GTI LE RFI
291001815
Unavailable
44
Bumper Corner
291002244
Unavailable
45
Pop Rivet 3/16"
293150013
Unavailable
46
Bumper Plug, Black
291000339
Unavailable
47
Tie-Rap Mount
293750025
Unavailable
48
Tie-Rap 180 mm
414115200
Unavailable
48
Tie Wrap 368 mm
293750008
Unavailable
49
GASKET - Call your local BRP dealership
293250171
Unavailable
50
GROMMET - Call your local BRP dealership
293720042
Unavailable
51
Tie-Rap 180 mm
414115200
Unavailable
52
Cover Trim
269501129
Unavailable
53
Was 293200017 Neoprene Seal
219704365
Unavailable
54
Clip
270000141
Unavailable
55
Flange Screw K40 X 20
241642060
Unavailable
56
Black Plug
291000279
Unavailable
57
Not Available As Spare Part - Friction Washer
Unavailable
58
Front Door
291001744
Unavailable
59
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
60
Rear Door
291001631
Unavailable
61
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
62
Tuflok Plastic Rivet
293150230
Unavailable
63
GLOVE BOX - Call your local BRP dealership
269500717
Unavailable
64
GLOVE BOX DOOR - Call your local BRP dealership
269500928
Unavailable
65
LATCH - Call your local BRP dealership
269500719
Unavailable
66
GASKET - Call your local BRP dealership
293250100
Unavailable
67
RETAINER LATCH - Call your local BRP dealership
269500820
Unavailable
68
Rubber Bumper
293830005
Unavailable
69
Was 293250099 Gasket
219704377
Unavailable
70
Rear Tray
269500990
Unavailable
71
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
72
Strap
269502417
Unavailable
73
Hook
269500521
Unavailable
74
Pop Rivet 3/16"
293150039
Unavailable
75
Flat Washer 5 mm, Stainless
234052600
Unavailable
76
Owner Tool Kit Ass'y | Includes 68 to 72
294000680
Unavailable
77
Not Available As Spare Part - Friction Washer
Unavailable
78
FORK WRENCH - Call your local BRP dealership
529017300
Unavailable
79
Not Available As Spare Part - Friction Washer
Unavailable
80
DRIVER SCREW - Call your local BRP dealership
529019200
Unavailable
