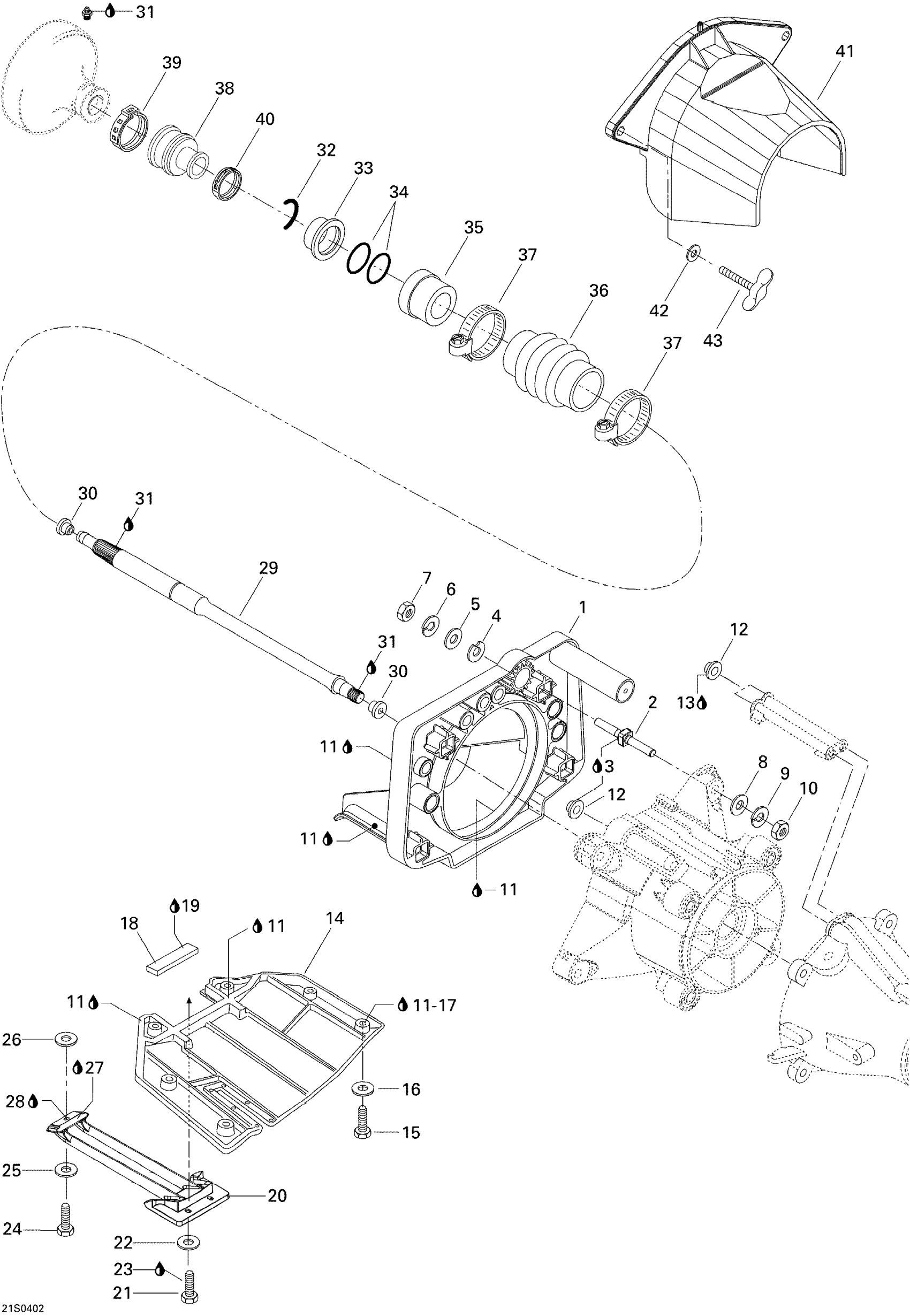

Sea-doo GTI LE, 2004 Propulsion System Diagram

#

Description
Price

1

Pump Support | LE

271001151

Unavailable

PUMP SUPPORT - Call your local BRP dealership | STD

271001225

Unavailable

2

Square Stud

250300022

$15.57

3

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

4

Shim 0.3 mm

272000053

$8.02

5

Flat Washer 10 mm, Stainless

234002600

$1.85

6

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

7

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

8

Flat Washer 10 mm, Stainless

234002600

$1.85

9

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

10

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

11

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

12

Watertight Seal

293250084

$5.81

13

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

14

Riding Plate, Black | STD

271001470

Unavailable

RIDING PLATE, BLACK - Call your local BRP dealership | STD

271001472

Unavailable

15

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

16

Stainless, Flat Washer 8 mm

234081600

$0.46

17

Silicone Sealant 51388, 300 ml

296000309

$35.72

18

Neoprene Seal (1PAC=3M)

219704364

$22.72

19

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

20

Pump Grate, Black

271001455

Unavailable

21

Hex. Screw M6 X 16

207161660

$1.22

22

Stainless Flat Washer M6

234061600

$0.25

23

Loctite 271, 10 ml

293800005

$20.77

24

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

25

Stainless, Flat Washer 8 mm

234081600

$0.46

26

Flat Washer 10 mm, Stainless

234001600

$0.91

27

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

28

Silicone Sealant 51388, 300 ml

296000309

$35.72

29

Drive Shaft

272000096

Unavailable

30

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

31

Synthetic Grease, 400 G

293550010

Unavailable

32

C-CLIP - Call your local BRP dealership

272000135

Unavailable

33

Support Ring

272000064

$53.27

34

O-Ring

293300032

$4.89

35

Carbon Ring

272000770

$35.72

36

BELLOWS - Call your local BRP dealership

272000184

Unavailable

37

Norma Clamp

293650075

$9.28

38

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

39

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

40

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

41

Flywheel Guard

272000095

Unavailable

42

Flat Washer M6, Stainless

234062600

$0.64

43

Wing Screw M6 X 16

207961630

Unavailable
