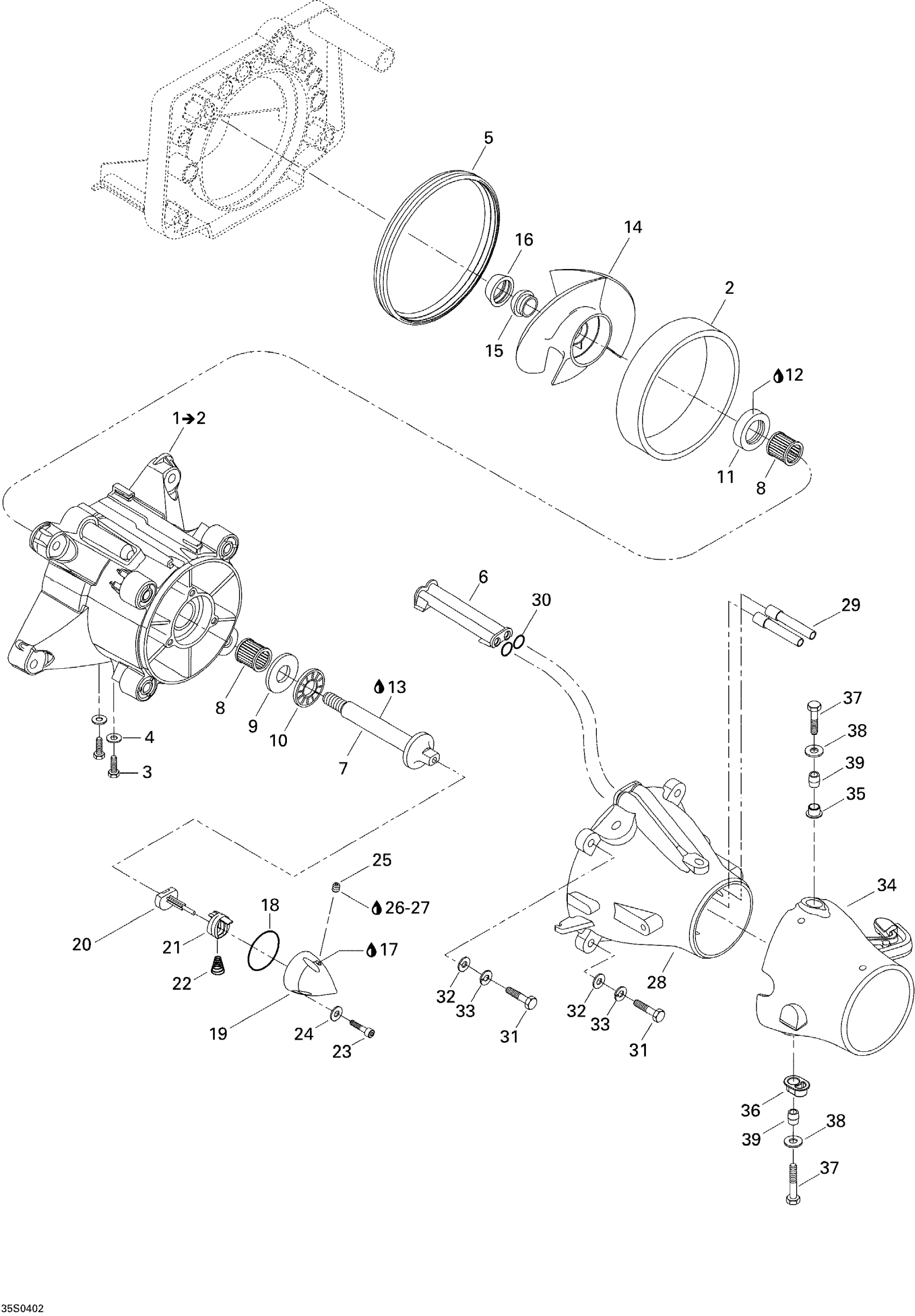

Sea-doo GTI LE, 2004 Pump Diagram
#
1
HOUSING ASSY - Call your local BRP dealership | Includes 1 to 5
271001381
Unavailable
2
Wear Ring
271000653
Unavailable
3
Hex. Plastite Screw #10 X 3/8"
250000040
Unavailable
4
Flat Washer M5, Stainless
234051600
Unavailable
5
Neoprene Seal
293200087
Unavailable
6
Water Outlet
271000785
Unavailable
7
Impeller Shaft
271000965
Unavailable
8
Needle Bearing
293350017
Unavailable
9
THRUST WASHER - Call your local BRP dealership
293350020
Unavailable
10
Thrust-Bearing
293350022
Unavailable
11
Oil Seal
267000094
Unavailable
12
Était/Was 293800038 Loctite 518, 50 ml
219704456
Unavailable
13
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
14
Impeller Ass'y This part replaces 271001297.
267000199
Unavailable
15
Impeller Boot
271000516
Unavailable
16
Impeller Ring
271000517
Unavailable
17
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
Unavailable
18
O-Ring
293300011
Unavailable
19
IMPELLER COVER - Call your local BRP dealership
271001250
Unavailable
20
PUSHER ASS?Y - Call your local BRP dealership
271001124
Unavailable
21
SLIDER - Call your local BRP dealership
271001107
Unavailable
22
SPRING - Call your local BRP dealership
271001108
Unavailable
23
Socket Head Screw M6 X 25, Scotch Grip
205562560
Unavailable
24
Stainless Flat Washer M6
234061600
Unavailable
25
Pipe Plug Socket Head 1/8-27 Npt
211500001
Unavailable
26
Was 293800013 Loctite 56765
219704454
Unavailable
27
Was 293800041 Loctite Primer 7649
219704458
Unavailable
28
VENTURI, BLACK - Call your local BRP dealership
271001464
Unavailable
29
Siphon Tube
271001133
Unavailable
30
O-Ring
293300013
Unavailable
31
Hex. Screw M8 X 50, Scotch Grip
207285060
Unavailable
32
Stainless, Flat Washer 8 mm
234081600
Unavailable
33
Lock Washer 8 mm, Stainless
234181601
Unavailable
34
STEERING NOZZLE, BLACK - Call your local BRP dealership
271001468
Unavailable
35
Venturi Bushing
293900001
Unavailable
36
Plastic Bushing
293900010
Unavailable
37
Hex. Screw M8 X 30, Scotch Grip
207383060
Unavailable
38
Flat Washer M8.5 x 18
293050001
Unavailable
39
Sleeve
271001816
Unavailable
40
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
